TV/monitor
• Connect the VIDEO jack or S-VIDEO jack; whichever
you want to use.
– You can get better picture quality by connecting with S
video cord.
Ÿ
Digital audio component
• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu
correctly according to the connected digital audio
equipment (see page 38).
• The digital signal through the OPTICAL DIGITAL
OUTPUT terminal is transmitted only when “DVD/CD” is
selected as the source.
!
AM/FM antenna
To assemble the AM loop antenna
To connect AM/FM antenna
• If the antenna cord is covered with vinyl on the tip, twist and
pull the vinyl off to remove.
For better FM reception
• Disconnect the supplied FM antenna, and connect an
outdoor FM antenna using a 75
Ω
wire with coaxial type
connector.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords or the power cord. Also, keep
the antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.

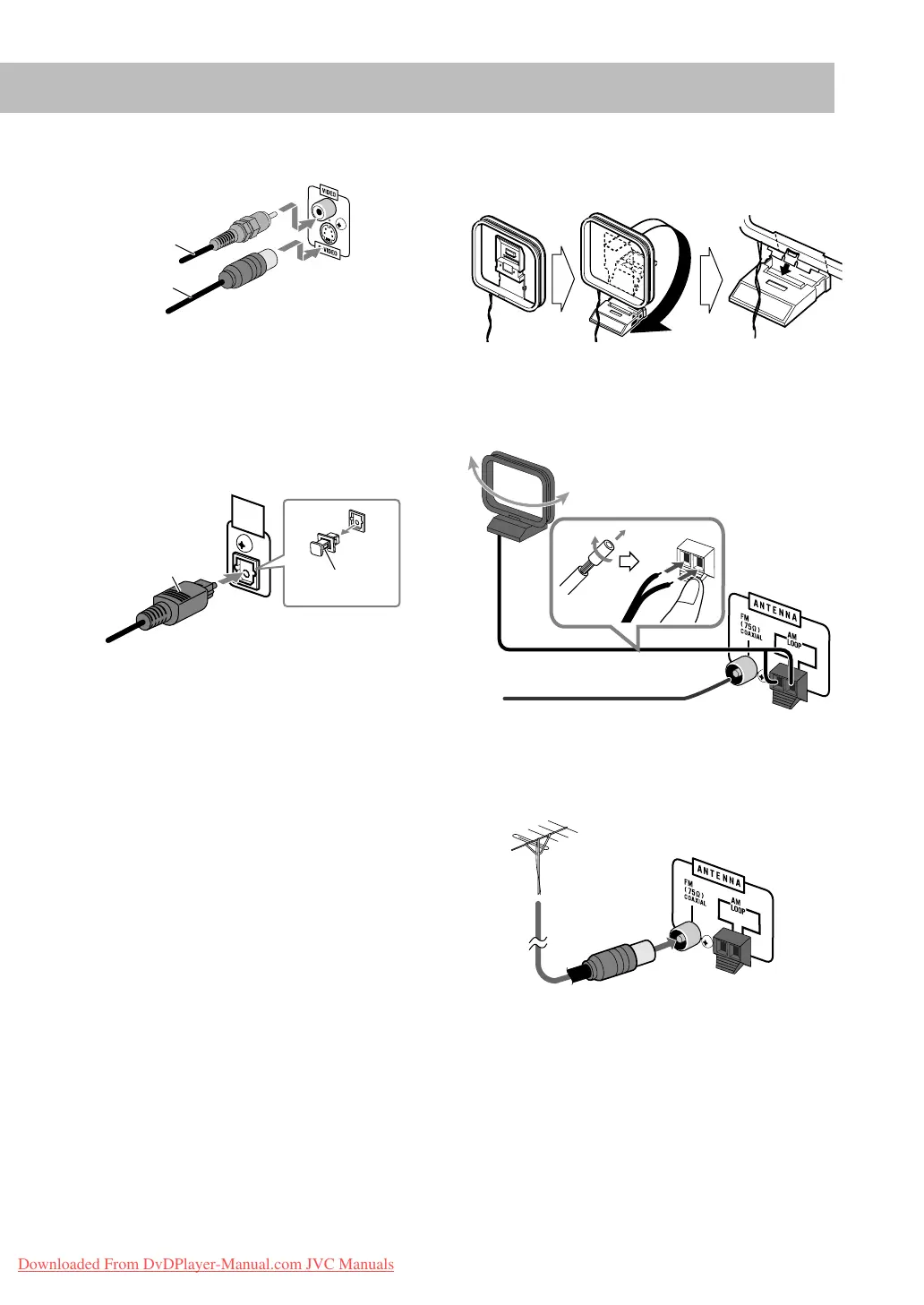

S-Video cord
(not supplied)
Composite video
cord (supplied)
OPTICAL
DIGITAL
OUTPUT
Protective cap
Optical digital cord
(not supplied)
Extend it so that you can obtain the best
reception.
AM loop antenna (supplied)
Turn until the best reception is
obtained.
FM antenna (supplied)
FM outdoor antenna
(not supplied)
