JVC SP-DXU10C User Manual

(No.MB616<Rev.002>)1-9

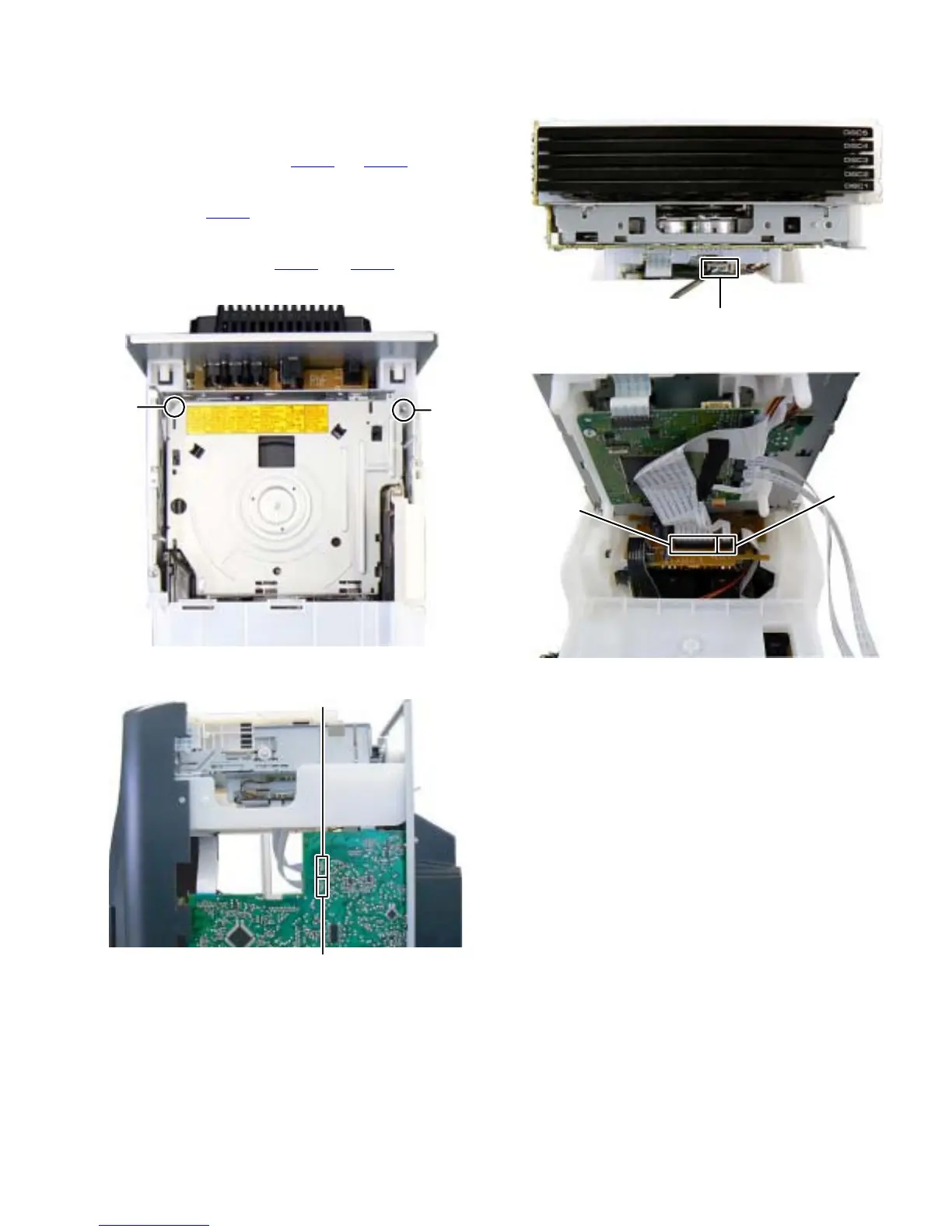

3.1.2 Removing the DVD CHANGER MECHANISM assembly
(See Fig.3 to 6)
(1) Remove the two screws C attaching the DVD MECHA-
NISM assembly. (See Fig.3)
(2) Disconnect the card wires from DVD MECHANISM assem-
bly connected to connector CN800
and CN810 of the MAIN
BOARD assembly. (See Fig.4)
(3) Disconnect the connector wire from USB board connected
to connector CN811
of the DVD BOARD assembly. (See
Fig.5)
(4) Disconnect the card wires from DVD BOARD assembly
connected to connector CN921
and CN930 of the VIDEO
board assembly. (See Fig.6)
Fig.3
Fig.4
Fig.5
Fig.6
C
C
CN810
CN800
CN811
CN930
CN921
