JVC SP-DXU10F - Removing the REGULATOR BOARD Assembly; See Fig.

(No.MB616<Rev.002>)1-15
3.1.9 Removing the REGULATOR BOARD assembly
(See Fig.19, 20)
(1) Disconnect the card wire from REGULATOR BOARD as-
sembly connected to connector CN305
and CN306 of the
SURROUND AMP BOARD assembly. (See Fig.19)
(2) Disconnect the card wire from FL BOARD assembly con-
nected to connector CN207
of the REGULATOR BOARD
assembly. (See Fig.19)
(3) Disconnect the connector wire from TRANS BOARD as-
sembly connected to connector CN201
of the REGULA-
TOR BOARD assembly. (See Fig.19)
(4) Disconnect the EARTH WIRE from TRANS BOARD as-
sembly connected to pin PP201
of the REGULATOR
BOARD assembly. (See Fig.19)
(5) Remove the one screw M attaching the REGULATOR
BOARD assembly. (See Fig.19)
(6) Disconnect the BOARD TO BOARD connectors CN204
and CN205 connected to SURROUND AMP BOARD as-
sembly and SUBWOOFER AMP BOARD assembly. (See
Fig.20)

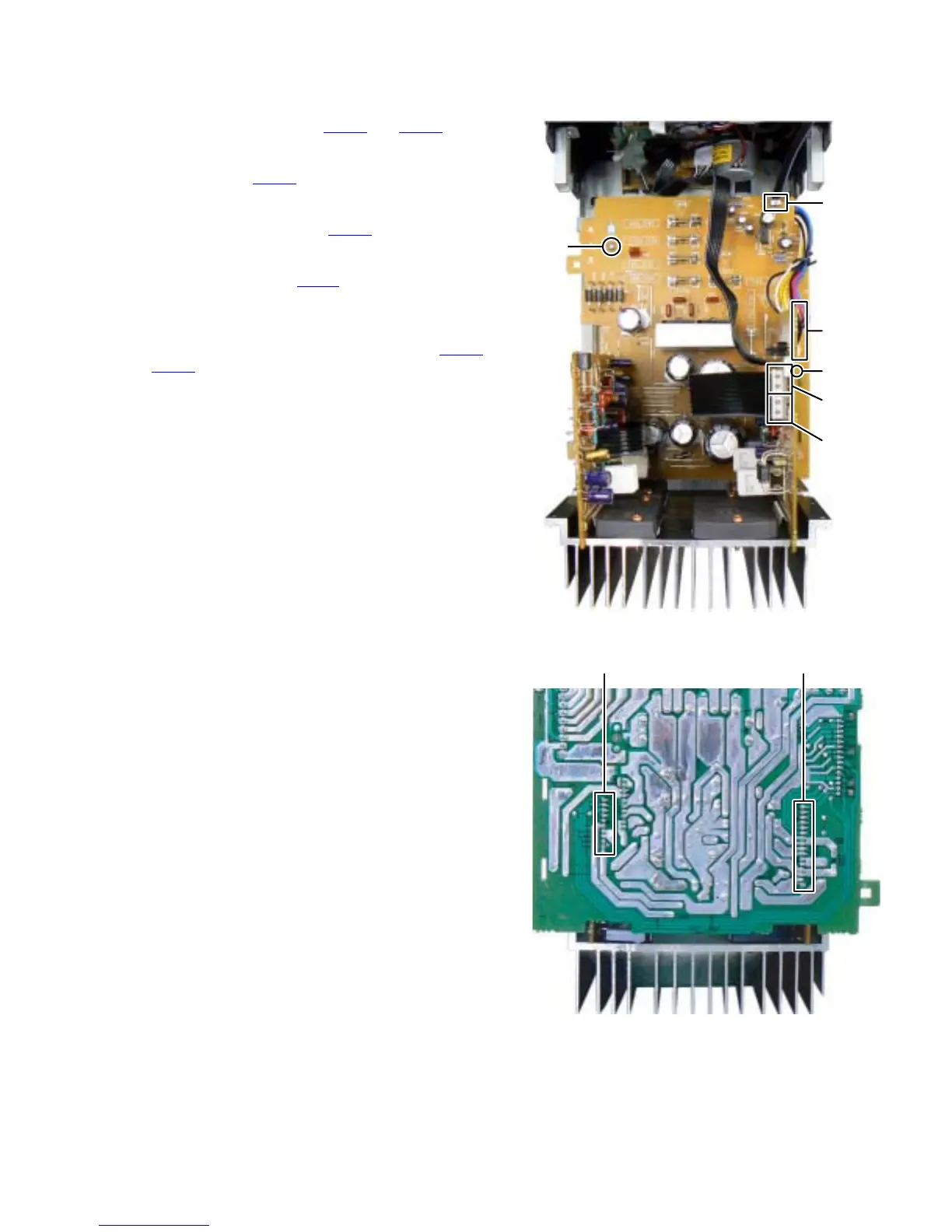

Fig.19
Fig.20
M
CN201
CN207
PP201
CN306
CN305
CN204 CN205
