JVC SP-PW2000 User Manual

4
Getting Started
English
CAUTION:
• Make all connections before plugging the System into an AC power outlet.
(Only if you install the Center Unit vertically)
• To place the Center Unit vertically, the Stand and Legs must be
attached. (See page 8.) To make connections, let the cords pass in
the holes of the Stand as shown in the diagram before attaching the
Stand and Legs.

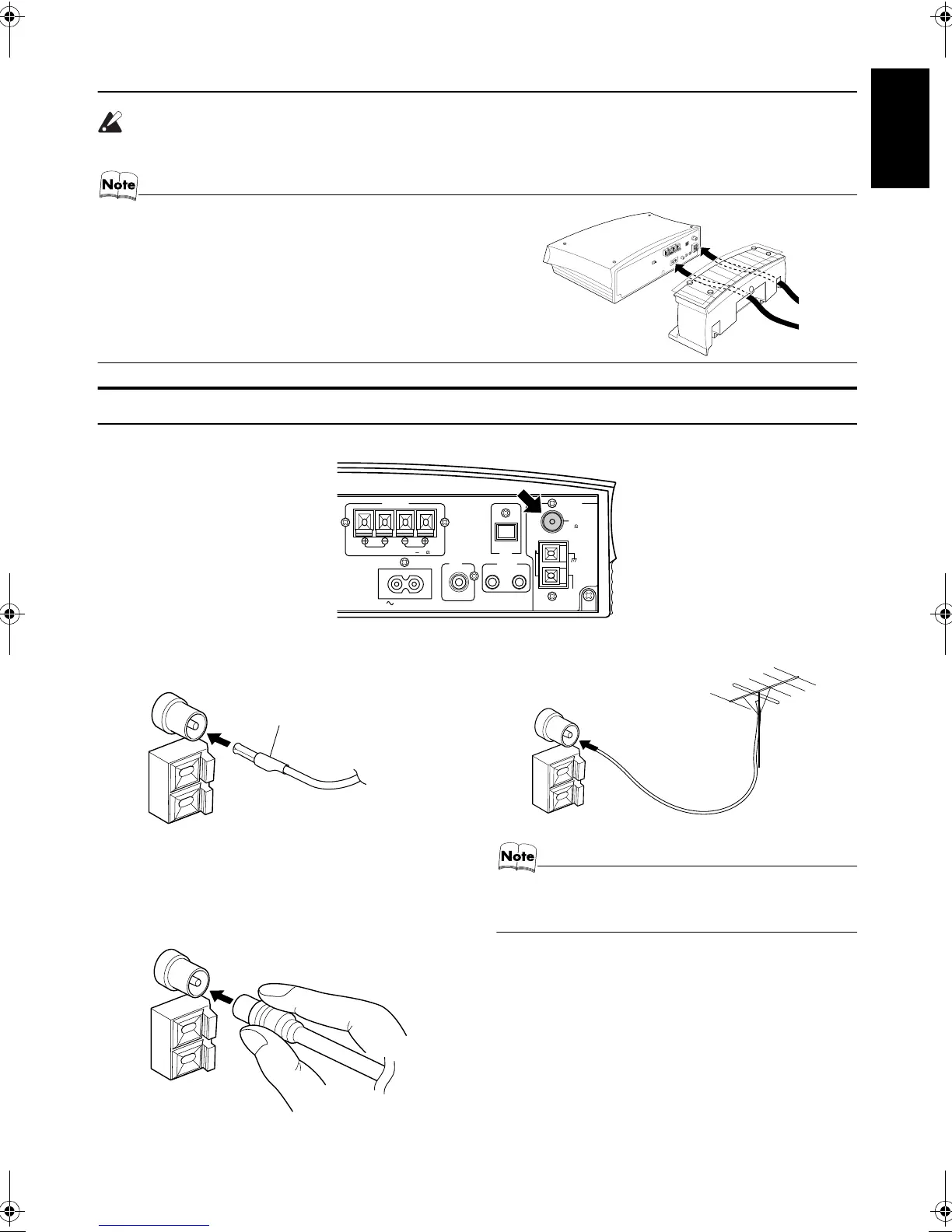

Connecting the FM Antenna
Rear Panel of the Center Unit (CA-VSDT2000)
Using the Supplied Wire Antenna
Using the Coaxial Type Connector
(Not Supplied)
A 75 Ω antenna with coaxial type connector (IEC or DIN45
325) should be connected to the FM 75 Ω COAXIAL termi-
nal.
If reception is poor, connect the outdoor antenna.
• Before attaching a 75 Ω coaxial lead (the kind with a
round wire going to an outdoor antenna), disconnect the
supplied FM Wire Antenna.
ANTENNA
OUT IN
SPEAKERS
AC IN
SPEAKER IMPEDANCE 4 16
AM
EXT
FM
(
75
)
COAXIAL
AM
LOOP
R
L
MD/AUX
SUB
WOOFER
CD DIGITAL
OUT
FM wire antenna (supplied)
Coaxial cable
FM outdoor
antenna
(Not supplied)
VS-DT2000[US-UW]_EN.book Page 4 Friday, March 8, 2002 3:09 PM
