Satellite speakers (For TH-D70)
Front speakers (SP-THD7F)
Type:
2-Way 3-Speaker Bass-Reflex Type (Magnetically
Shielded Type)
Speaker: 8 cm cone
× 2
3 cm dome
× 1
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 75 Hz to 20 000 Hz
Sound Pressure Level: 83 dB/W
•m
Dimensions (W
× H × D):
280 mm
× 1 100 mm × 280 mm (with stand)
280 mm
× 594 mm × 280 mm (without stand)
Mass: 8.9 kg each (with stand)
6.5 kg each (without stand)
Center speaker (SP-THD7C)
Type:
1-Way 2-Speaker Bass-Reflex Type (Magnetically
Shielded Type)
Speaker: 8 cm cone
× 2
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 75 Hz to 20 000 Hz
Sound Pressure Level: 84 dB/W
•m
Dimensions (W
× H × D): 435 mm × 100 mm × 118 mm
Mass: 2.2 kg
Surround speakers (SP-THD7S)
Type:
1-Way Bass-Reflex Type (Magnetically Shielded Type)
Speaker: 8 cm cone
× 1
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 75 Hz to 20 000 Hz
Sound Pressure Level: 77 dB/W
•m
Dimensions (W
× H × D): 98.5 mm × 215 mm × 118 mm
Mass: 1.0 kg each
Satellite speakers (For TH-D50)
Front speakers (SP-THD5F)
Type:
1-Way Bass-Reflex Type (Magnetically Shielded Type)
Speaker: 8 cm cone
× 1
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 90 Hz to 20 000 Hz
Sound Pressure Level: 80 dB/W
•m
Dimensions (W
× H × D): 98.5 mm × 214.5 mm ×
93.5 mm
Mass: 1.0 kg each
Center speaker (SP-THD5C)
Type:
1-Way 2-Speaker Bass-Reflex Type (Magnetically
Shielded Type)
Speaker: 8 cm cone
× 2
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 90 Hz to 20 000 Hz
Sound Pressure Level: 84 dB/W•m
Dimensions (W
× H × D): 435 mm × 99 mm × 93.5 mm
Mass: 2.0 kg
Surround speakers (SP-THD5S)
Type:
1-Way Bass-Reflex Type (Magnetically Shielded Type)
Speaker: 8 cm cone
× 1
Power Handling Capacity: 140 W
Impedance: 4 Ω
Frequency Range: 90 Hz to 20 000 Hz
Sound Pressure Level: 76 dB/W
•m
Dimensions (W
× H × D): 98.5 mm × 214.5 mm ×
93.5 mm
Mass: 0.85 kg each
Designs and specifications are subject to change without notice.

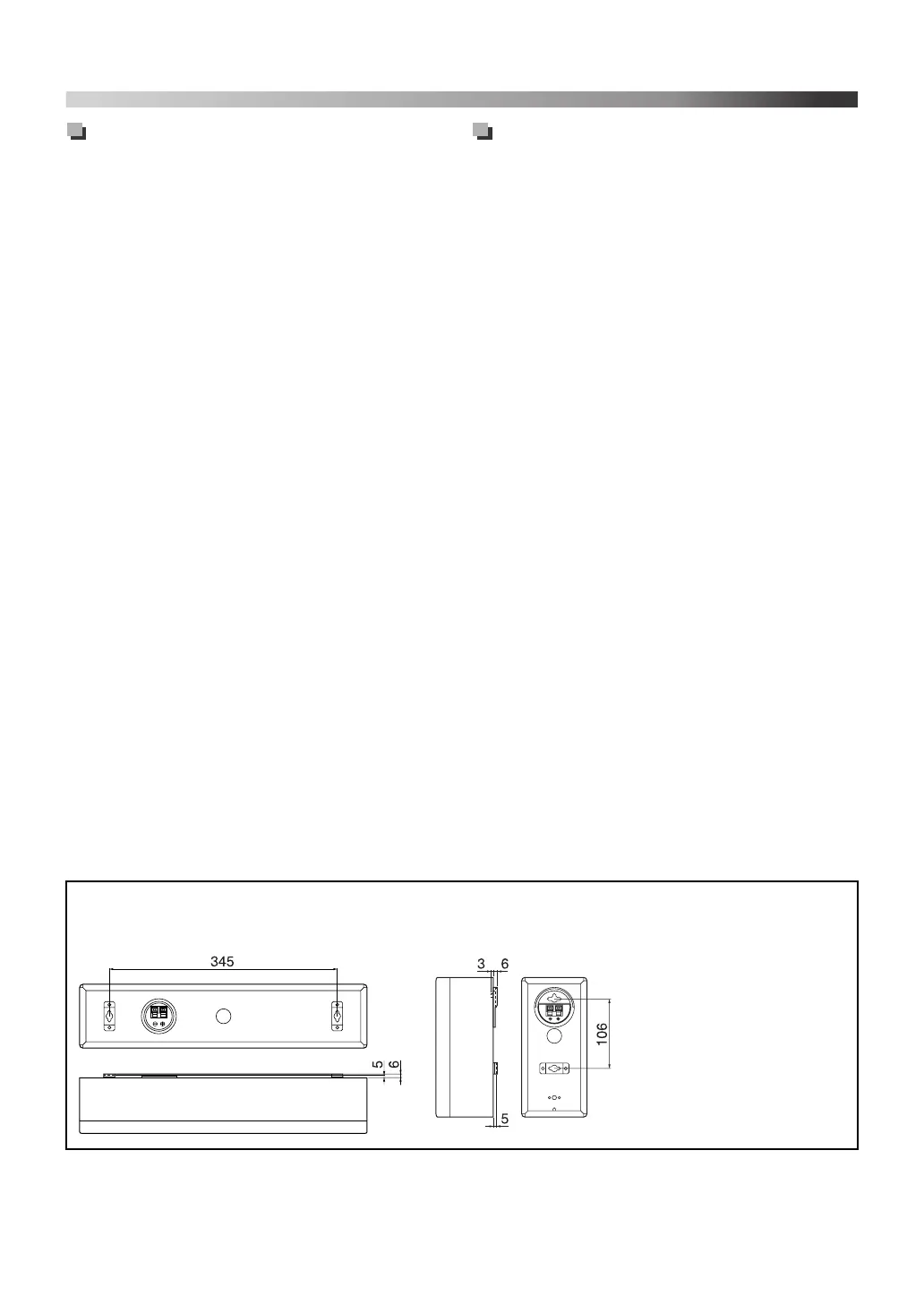

Dimensions of the wall-mount attachment on the center and surround speakers:
Unit: mm
SP-THD7C/SP-THD5C
SP-THD7S/SP-THD5S
