1-14 (No.MB108)

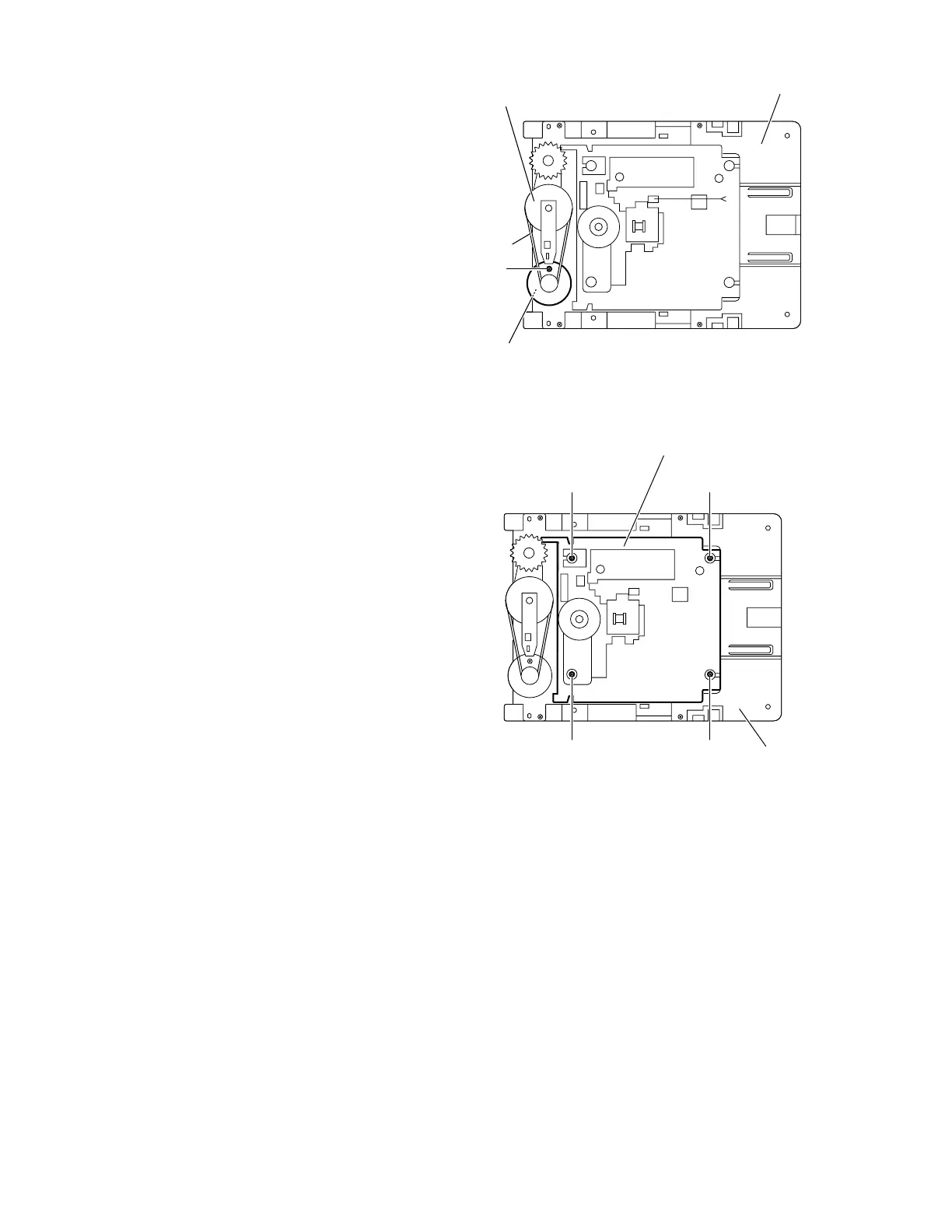

3.3.6 Removing the motor
(See Fig.6)
Prior to performing the following procedures, remove the
clamper base and tray drive board.
(1) From the top side of the DVD mechanism assembly, re-
move the belt of the pulley gear.
Note:
Take care not to attach grease on the belt.
(2) Remove the screw C attaching the motor to the DVD mech-
anism assembly.
Fig.6
3.3.7 Removing the DVD traverse mechanism assembly
(See Fig.7)
Prior to performing the following procedures, remove the DVD
servo board and clamper base.
(1) From the top side of the DVD mechanism assembly, re-
move the four screws D attaching the DVD traverse mech-
anism assembly to the loading base.
(2) Take out the DVD traverse mechanism assembly from the
loading base.
Fig.7
DVD mechanism assembly
Belt
C
Motor
Pulley gear
DVD traverse mechanism assembly
D D
DD
Loading base
