(No.MB108)1-17

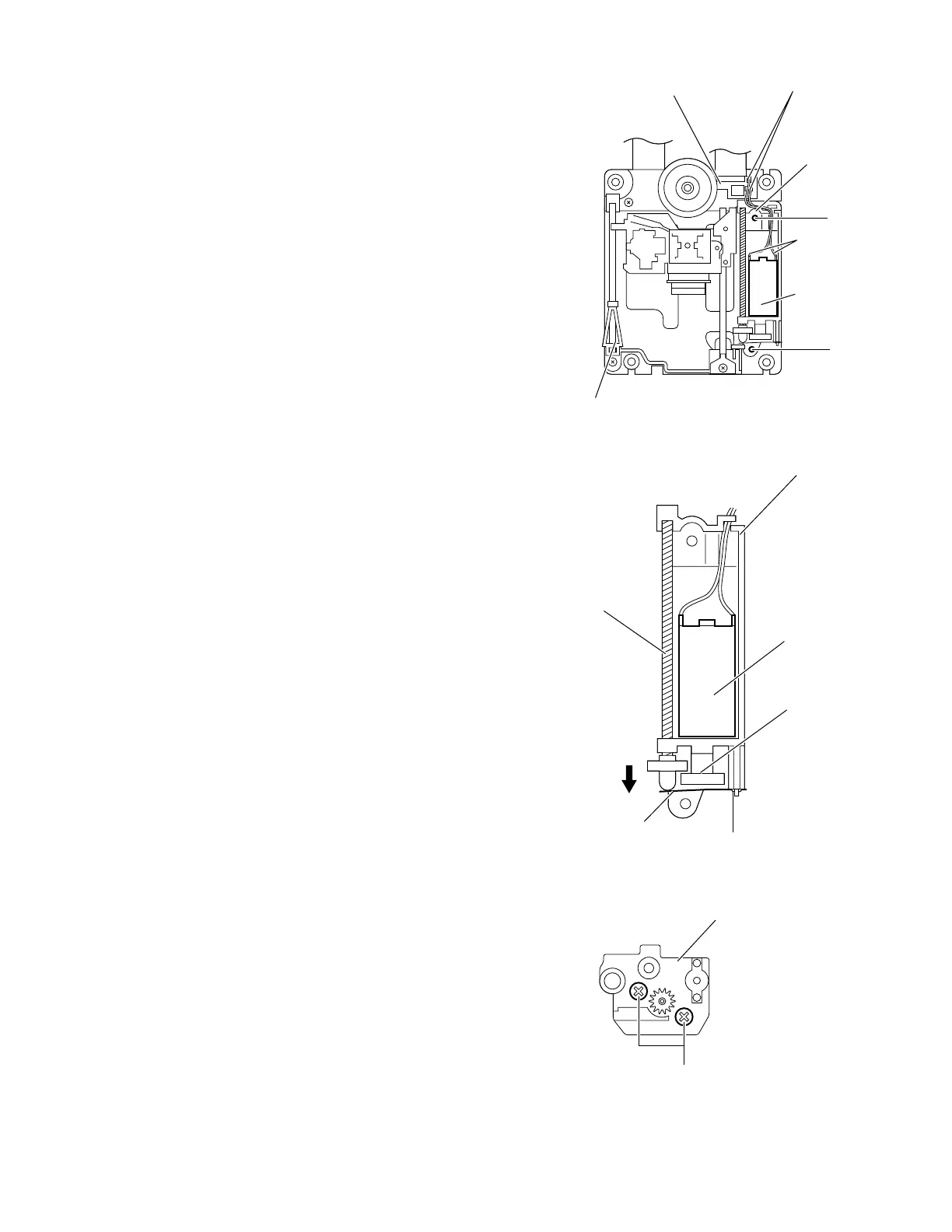

3.3.11 Removing the feed motor

(See Figs.15 to 17)

• Prior to performing the following procedures, remove the DVD

servo board, clamper base and DVD traverse mechanism as-

sembly.

(1) From the top side of the DVD traverse mechanism assem-

bly, remove the feed motor wire that is soldered to the spin-

dle motor board. (See Fig.15)

(2) Remove the screw H attaching the feed holder assembly

and then take out the feed holder assembly. (See Fig.15)

(3) Remove the screw J attaching the thrust spring. (See

Fig.16)

(4) Remove the feed gear and lead screw in the direction of the

arrow. (See Fig.16)

(5) Remove the two screws K attaching the feed motor. (See

Fig.17)

Fig.15

Fig.16

Fig.17

Feed motor

Remove the solders.

DVD traverse mechanism assembly

Feed motor

wire

Spindle motor board

Feed holde

assembly

Feed holder assembly

Feed motor

Feed gear

Lead screw

Thrust spring

Feed holder assembly
