1-18 (No.MB108)
3.4 Speaker section

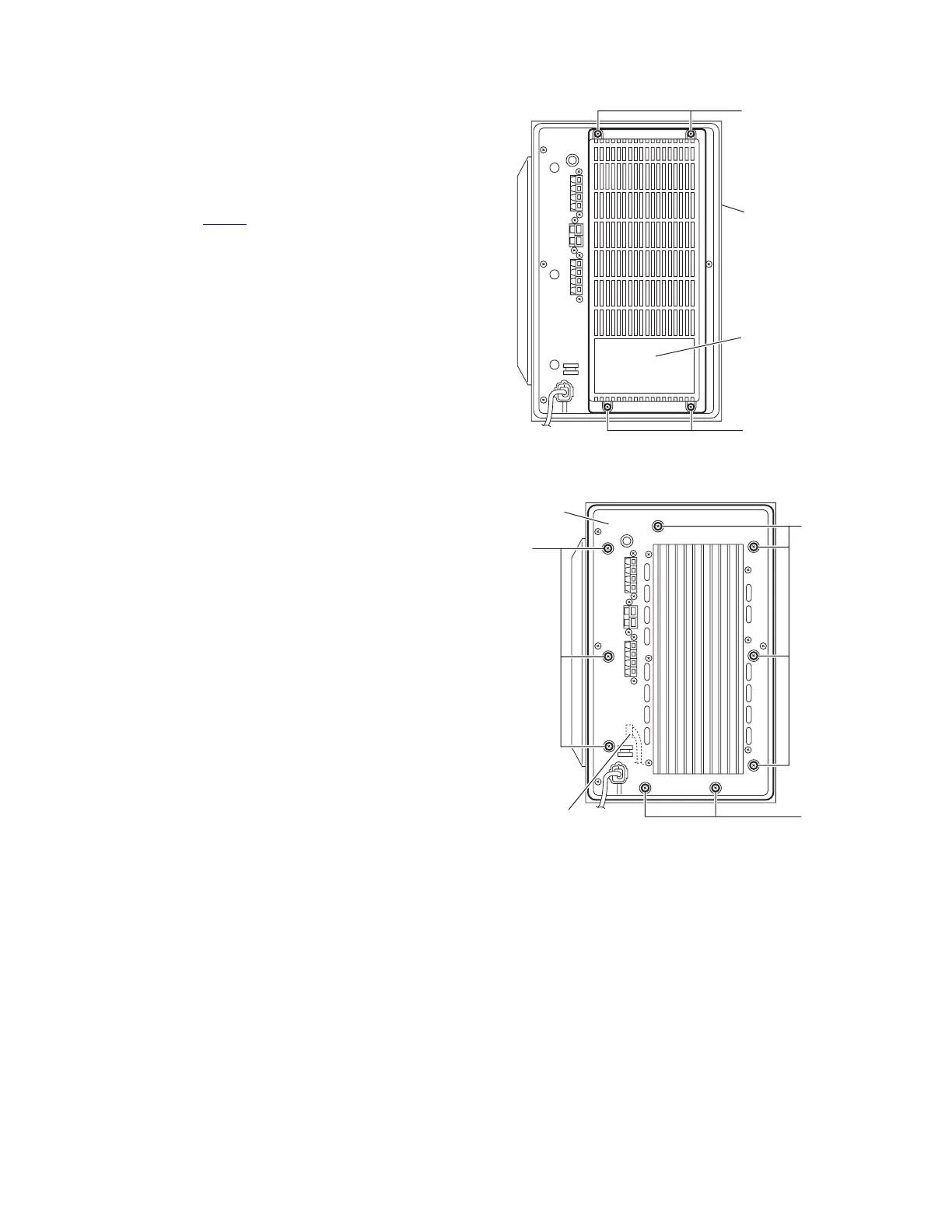

3.4.1 Removing the amplifier assembly
(See Figs.1 and 2)
(1) From the rear side of the speaker main body, remove four
screws A attaching the heat sink cover. (See Fig.1)
(2) Remove the nine screws B attaching amplifier assembly.
(See Fig.2)
(3) Move the amplifier assembly backward and disconnect the
wire from connector CN402
in the lower part of the amplifier
assembly. (See Fig.2)
Fig.1
Fig.2
A
A
Amplifier
assembly
Heat sink
cover
B
B
B
mplifier
assembly
CN402
To Next Page
