JVC TH-C60J

1-18 (No.MB511)

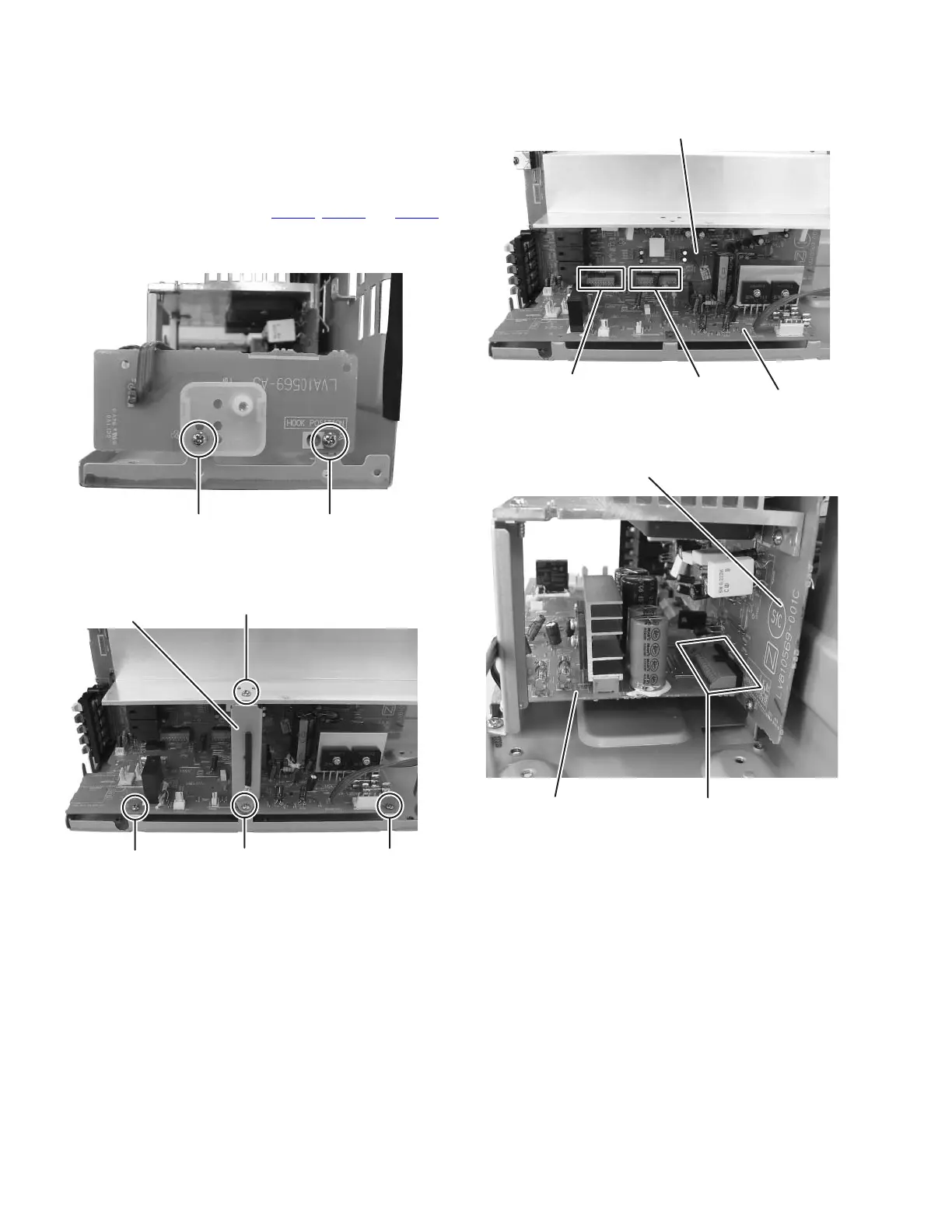

3.2.4 Removing the mother board
(See Fig.8 to 11)
(1) Remove the two screws F attaching the LED board. (See
Fig.8)
(2) Remove the two screws G attaching the heat sink bracket.
(See Fig.9)
(3) Remove the two screws H attaching the mother board.
(See Fig.9)
(4) Release the lock of connectors CN372
, CN501 and CN502
connect the amp board and mother board, and then re-
move the mother board. (See Fig10 and 11)
Fig.8
Fig.9
Fig.10
Fig.11
FF
G
H
H
G
Heat sink bracket
CN372 CN501
Mother board
Amp board
CN502
Amp board
Mother board
