3.2.5 Removing the amp board
(See Fig.12 and 13)
(1) Remove the two screws J attaching the heat sink bracket.
(See Fig.12)
(2) Remove the three screws K attaching the heat sink. (See
Fig.12)
(3) Remove the three screws L attaching the heat sink. (See
Fig.13)
(4) Remove the three screws M attaching the amp board. (See
Fig.13)

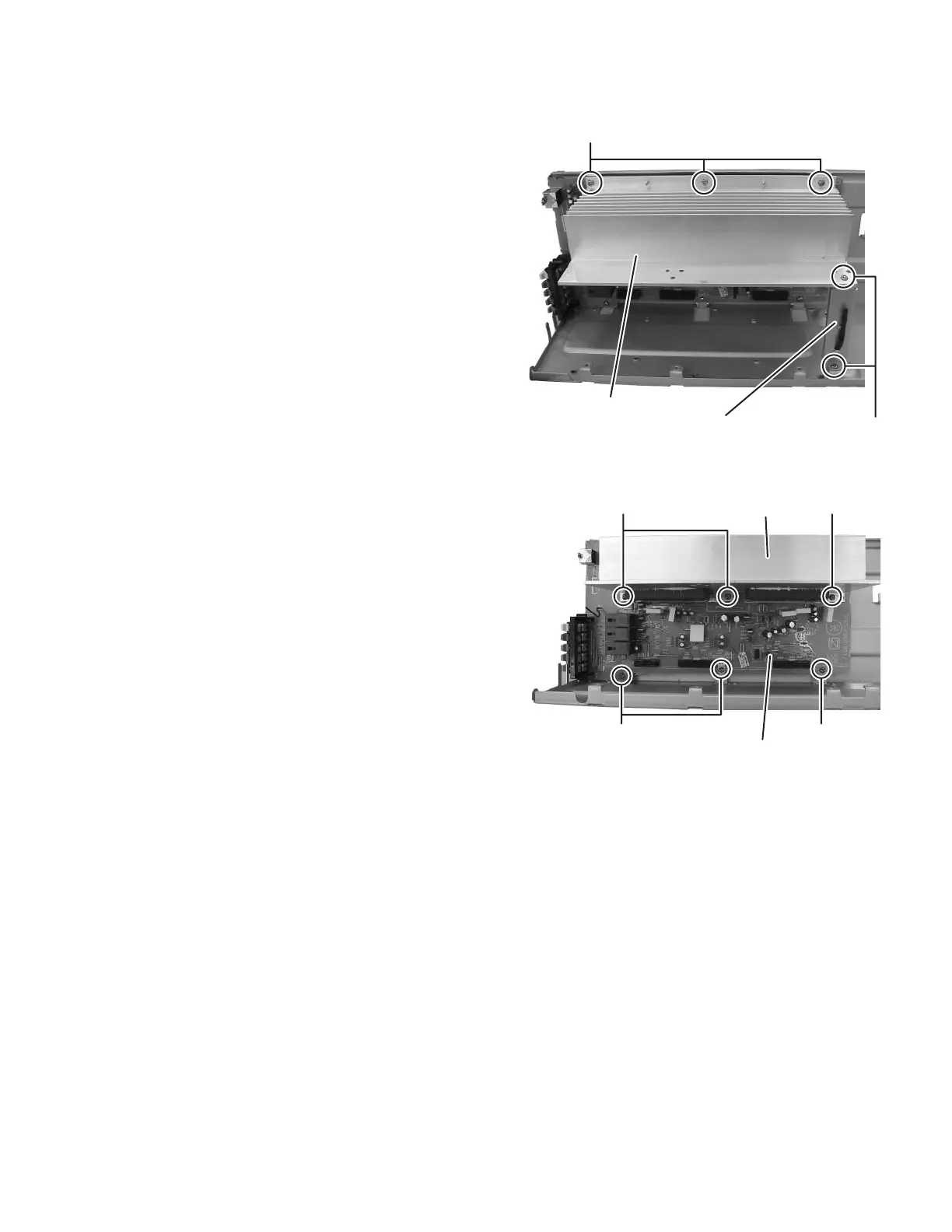

Fig.12
Fig.13
Heat sink
Heat sink bracket
K
J
Amp board
Heat sink
MM
LL
