3.2.6 Removing the heat sink

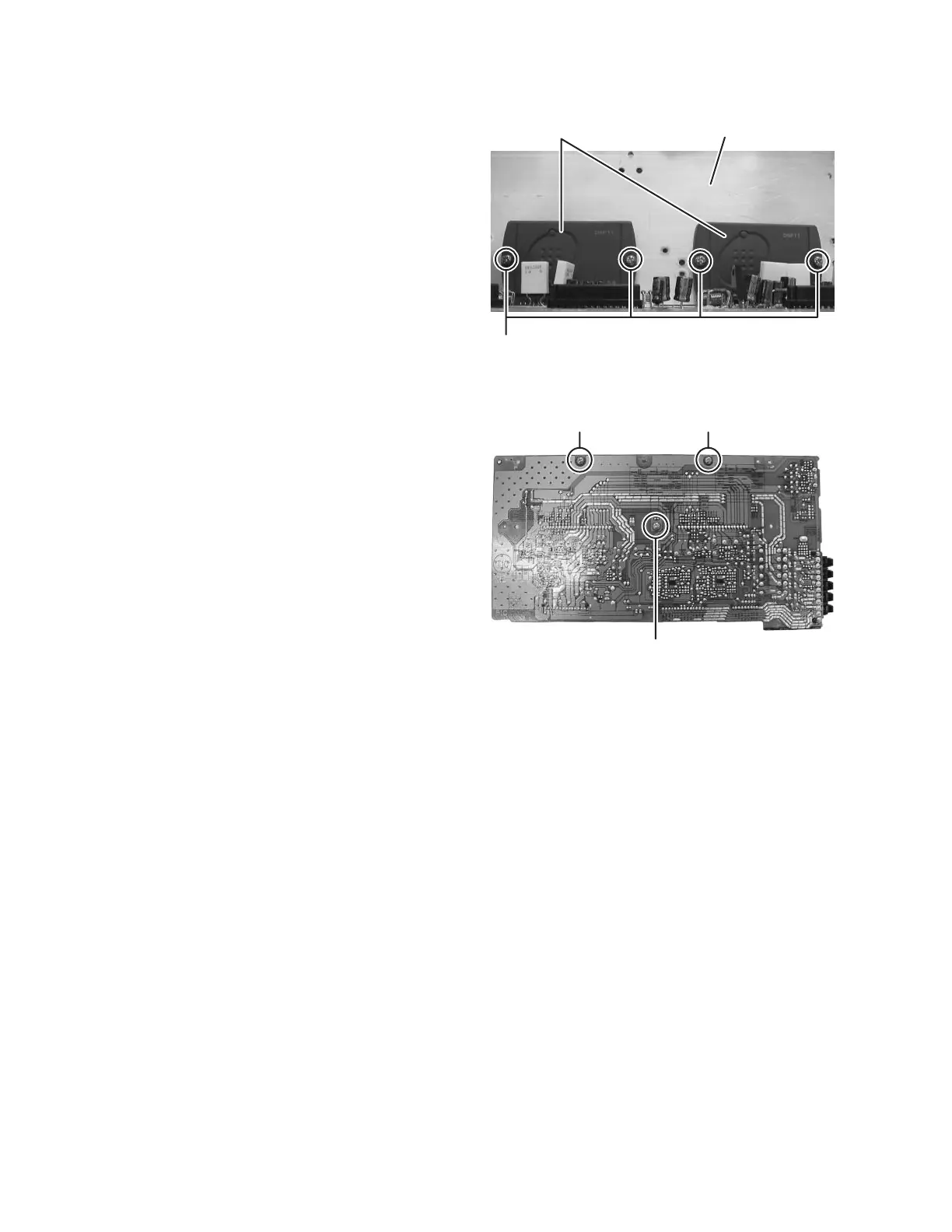

(See Fig.14 and 15)
(1) Remove the four screws N attaching the power ICs. (See
Fig.14)
(2) Remove the three screws P attaching the hear sink. (See
Fig.15)
Fig.14
Fig.15
N
Power IC
Heat sink
PP
P
