Connections
Method 1: Optical/Coaxial Connection
Use an optical cable (not included) / coaxial cable (included) to connect the soundbar’s
OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external
device. The simplest option is to connect your soundbar directly to your TV. If you connect
the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from
that device through the soundbar.
After the connection is complete,
1. Press
on the unit or remote control to switch on the unit.
2. Press SOURCE on the unit repeatedly on the unit or remote control to select OPTICAL /
COAXIAL mode.
This section involves various methods of connecting the product to other external components. Ensure
all audio connections of the unit are connected before connecting to the mains power socket.
The unit may not be able to decode all digital audio formats from the input source. In this case, the
Optical / Coaxial indicator will ash quickly, and the unit will prompt “Unsupported sound format,
please refer to the Instruction Book”. This is NOT a defect. Ensure that the audio setting of the input
source (e.g. TV, game console, DVD player, etc.) is set to PCM with optical / Coaxial input.

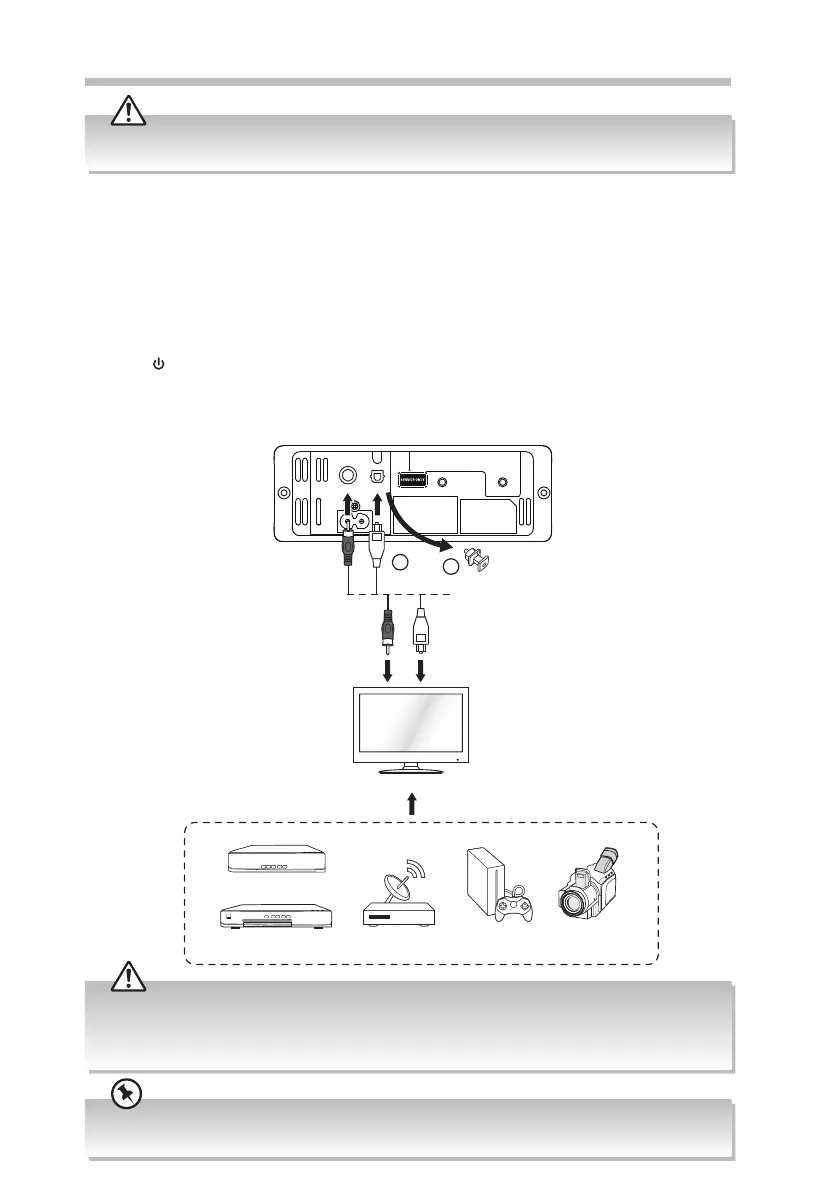

COAXIAL
(TV/BD/DVD)
OPTICAL
(TV/BD/DVD)
AC~
SERVICE ONLY AUX (BD/DVD) SUBWOOFER OUT
1
2
TV
Rear View of the Soundbar
Blu-ray Player / DVD Player
/ Recorder
Set-top Box
Satellite
Receiver
Game
Console
Video
Camera
Optical cable (not included)Coaxial cable (included)
• DO NOT connect the soundbar with the TV through its RCA sockets or headphone socket.
• Before connecting the optical cable, remove the protective cap of the OPTICAL socket.
or
