RM-P2580E
Remote Control Unit
Use the remote control unit to open the
CCD camera menu and set camera
parameters. Another function of
the unit is to control 360-degree
dome cameras such as TK-C676E
and TK-C655E.
 Built-in 8ch sequential switcher function
 Multi-alarm input/outputs
 8 video input/outputs (Loop through)
 Operation lock function
 Interface: RS-485 for camera and
RS-232C for external unit
This catalogue is printed on recycled paper.
 The Hachioji Plant of Victor Company of Japan, Ltd., has received ISO14001 and ISO9001
Certifications
under the global standard for environmental management.
JQA-0288
Signal system PAL
Image device 1/2" Ultra Super LoLux IT CCD, 752 (H) x 582 (V)
Sync system Internal, Line Lock, Full Genlock
Scanning frequency 15.625 kHz (H), 50 Hz (V)
Horizontal resolution 480 TV lines
Video output Composite video signal
Y/C output Y/C video signal (4-pin)
Video S/N ratio 50 dB (AGC OFF)
Minimum required illumination
0.6 lux (F 1.2, 50%, AGC 20dB, Normal shutter 1/50 sec.)
0.3 lux (F 1.2, 25%, AGC 20dB, Normal shutter 1/50 sec.)
0.15 lux (F 1.2, 25%, AGC 26dB, Normal shutter 1/50 sec.)
0.02 lux (F 1.2, 50%, AGC 20dB, Slow shutter 32/50 sec.)
0.01 lux (F 1.2, 25%, AGC 20dB, Slow shutter 32/50 sec.)
0.005 lux (F 1.2, 25%, AGC 26dB, Slow shutter 32/50 sec.)
Communication RS-422A or RS-485 (switchable)
Lens mount C/CS mount
Power requirement TK-C1480BE: AC 24 V (50 /60 Hz), DC 12 V
TK-C1481BEG: AC 220240 V (50 /60 Hz)
Power consumption TK-C1480BE: 450 mA
TK-C1481BEG: 75 mA
Operating temperature range -10°C to 50°C
0°C to 40°C (recommended)
Weight TK-C1480BE: 600g
TK-C1481BEG: 835g
Accessories 4P plug x1
Ferrite core x1
Instructions x2
DISTRIBUTED BY
Design and specifications subject to change without notice.
Printed in Japan
KCN-1811
CETKC1480BE/1481BEGKN0302

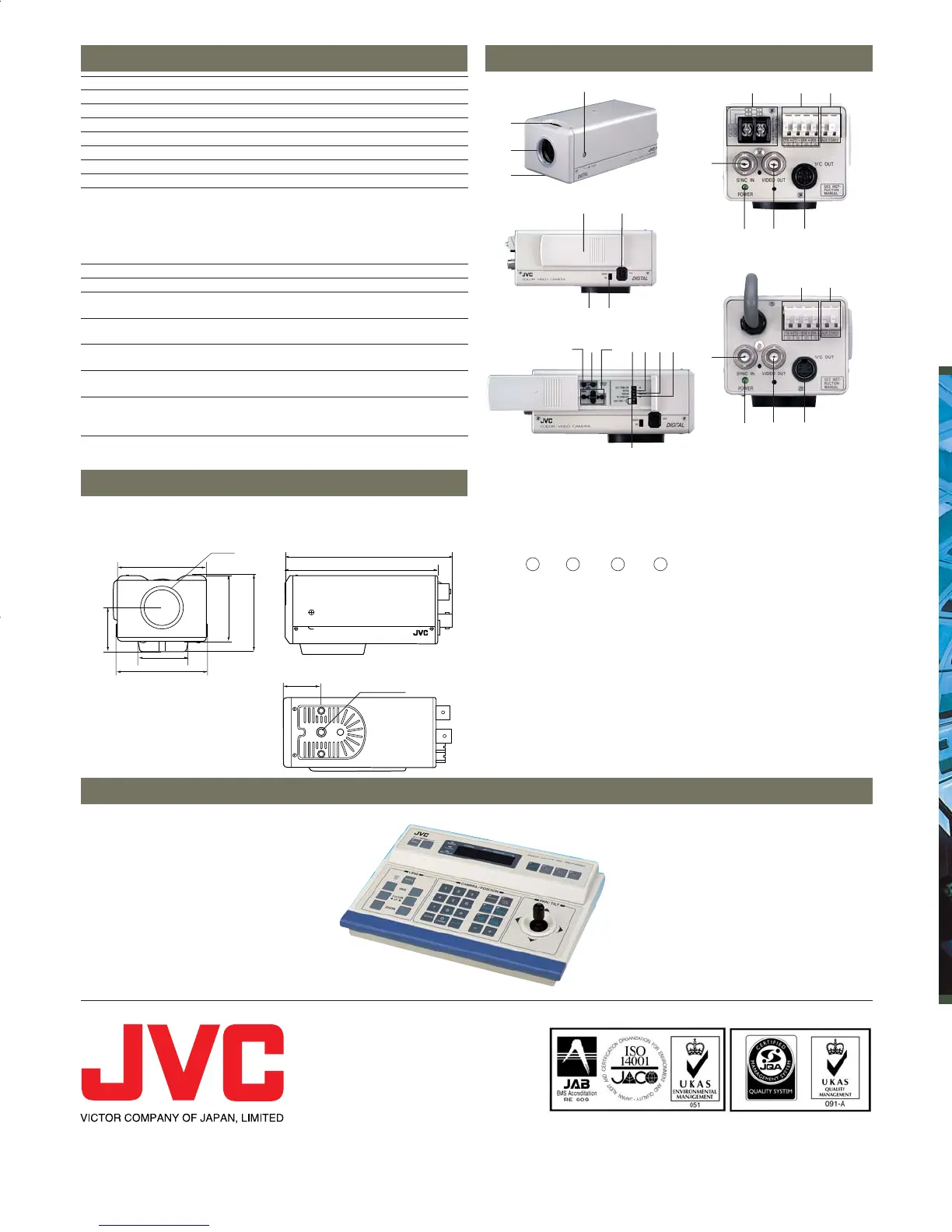

Controls, Connectors and IndicatorsSpecifications
Dimensions
COLOR VIDEO CAMERA
BF LOCK
DIGITAL
70
42
71
138
149
35
55
63
U1-32
1/4-20 UNC
41
Unit: mm
Other Equipment
1
2
3
3
4
5
8
9
#
^%*&()q
@
$
w
0!
8
90!
67
67
1 BACK FOCUS adjustment
2 Lens mount (C or CS)
3 Camera mounting bracket
4 BACK FOCUS locking screw
5 [DC 12V, AC 24V] Power input
terminals
6 [TX+ A , TX- B , RX+ C , RX- D ]
Control signal connection
terminals
7 [AUX, GND] Auxiliary output
terminal
8 [SYNC IN] Sync signal input
connector
9 [POWER] Power indicator lamp
0 [VIDEO OUT] Video signal
output connector
! [Y/C OUT] Y/C output
connector
@ Cover
# [IRIS] Iris terminal
$ [VIDEO/DC] Iris selector switch
% [MENU] Menu button
^ [SET/AWC] Set. auto white
control button
& Up-and-down, left-and-right
button
* [EXT.TERM-ON/OFF] Terminal
ON/OFF switch of external
synchronisation signal
( [INT/GL, LL] Selector switch for
synchronising system
) [DUPLEX, SIMPLEX] Selector
switch for transmission system
q [RX, TERM-ON/OFF] RX signal
terminal ON/OFF switch
w NOT USED
TK-C1480BE
TK-C1481BEG
