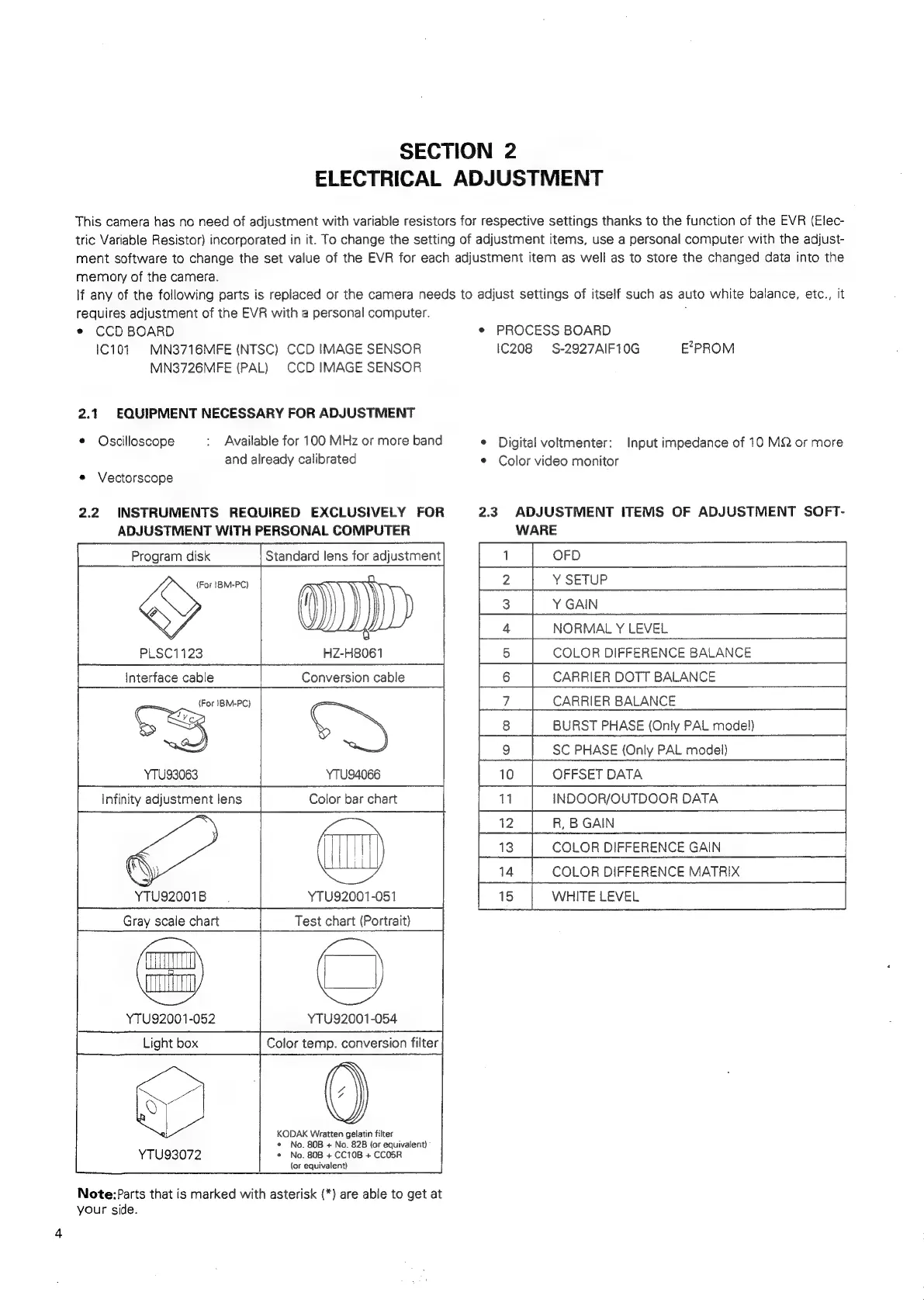

SECTION 2
ELECTRICAL ADJUSTMENT
This camera has no need of adjustment with variable resistors for respective settings thanks to the function of the EVR (Elec-
tric Variable Resistor) incorporated in it. To change the setting of adjustment items, use a personal computer with the adjust-
ment software to change the set value of the EVR for each adjustment item as well as to store the changed data into the
memory of the camera.
If any of the following parts is replaced or the camera needs to adjust settings of itself such as auto white balance, etc., it
requires adjustment of the EVR with a personal computer.
¢ CCD BOARD
1C101 MN3716MFE (NTSC) CCD IMAGE SENSOR
MN3726MFE (PAL) CCD IMAGE SENSOR
2.1 EQUIPMENT NECESSARY FOR ADJUSTMENT
Available for 100 MHz or more band
and already calibrated
* Oscilloscope
e Vectorscope
2.2 INSTRUMENTS REQUIRED EXCLUSIVELY FOR
ADJUSTMENT WITH PERSONAL COMPUTER
Program disk
Standard lens for adjustment
(For 1BM-PC)
KY
PLSC1123
Interface cable
HZ-H8061
Conversion cable
o>
YTU94066
(For IBM-PC}
YTU93063
PROCESS BOARD
IC208 $-2927AIF10G E7PROM
e Digital voltmenter:
¢ Color video monitor
Input impedance of 10 MQ or more
2.3 ADJUSTMENT ITEMS OF ADJUSTMENT SOFT-
WARE
OFD
Y SETUP
Y GAIN
NORMAL Y LEVEL
COLOR DIFFERENCE BALANCE
CARRIER DOTT BALANCE
CARRIER BALANCE
BURST PHASE (Only PAL model)
SC PHASE (Only PAL model)
OFFSET DATA
Infinity adjustment lens Color bar chart
YTU92001B YTU92001-051
Gray scale chart Test chart (Portrait)
nH
YTU92001-052
Light box
YTU92001-054
Color temp. conversion filter
KODAK Wratten gelatin filter
* No. 808 + No. 828 (or equivalent) ©
¢ No. 808 + CC10B + CCO5R
(or equivalent)
YTU93072
Note:Parts that is marked with asterisk (*) are able to get at
your side.
INDOOR/OUTDOOR DATA
12 R, B GAIN
13 COLOR DIFFERENCE GAIN
14 COLOR DIFFERENCE MATRIX
15 WHITE LEVEL
