JVC UX-A70MD

1-24
UX-A70MD
It is not necessary to remove the pickup unit.
For the white and black harnesses extending from
the feed motor assembly, unsolder the soldering i on
the traverse mechanism board.
Remove the two screws L attaching the feed motor
assembly.
Remove the two screws N attaching the feed motor
bracket.
1.
2.
3.

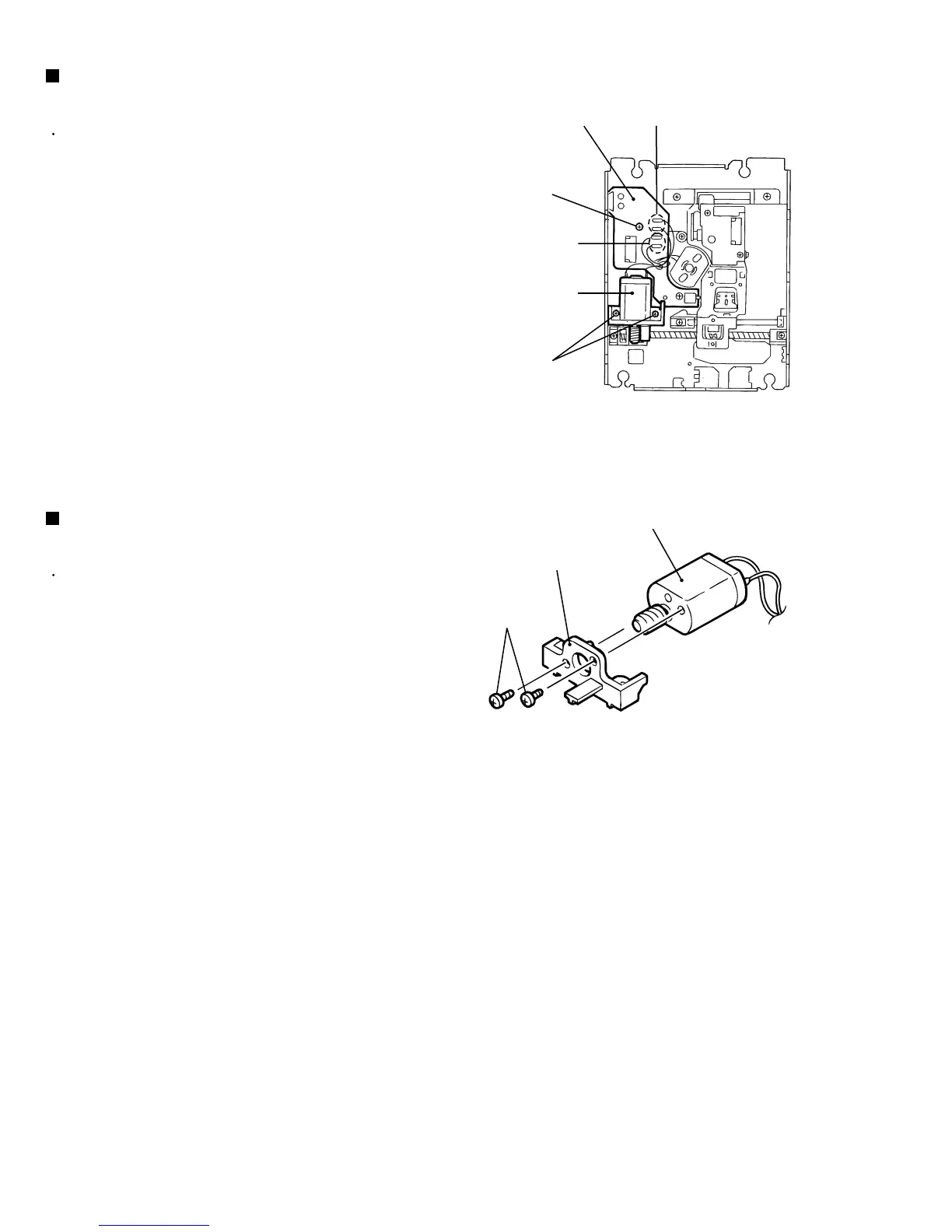

Removing the feed motor assembly
(See Fig.19-1, 19-2)
Prior to performing procedure, remove the feed
motor assembly.
For the red and black harnesses extending from the
spindle motor, unsolder the soldering j on the
traverse mechanism board.
Remove the screw M attaching the traverse
mechanism board.
1.
2.
Removing the traverse mechanism
board (See Fig.19-1)
Fig.19-1
Fig.19-2
M
L
N
Feed motor assembly
Feed motor
Feed motor bracket
Traberse mechanism board Soldering j
Soldering i
