3-7
UX-A70MD

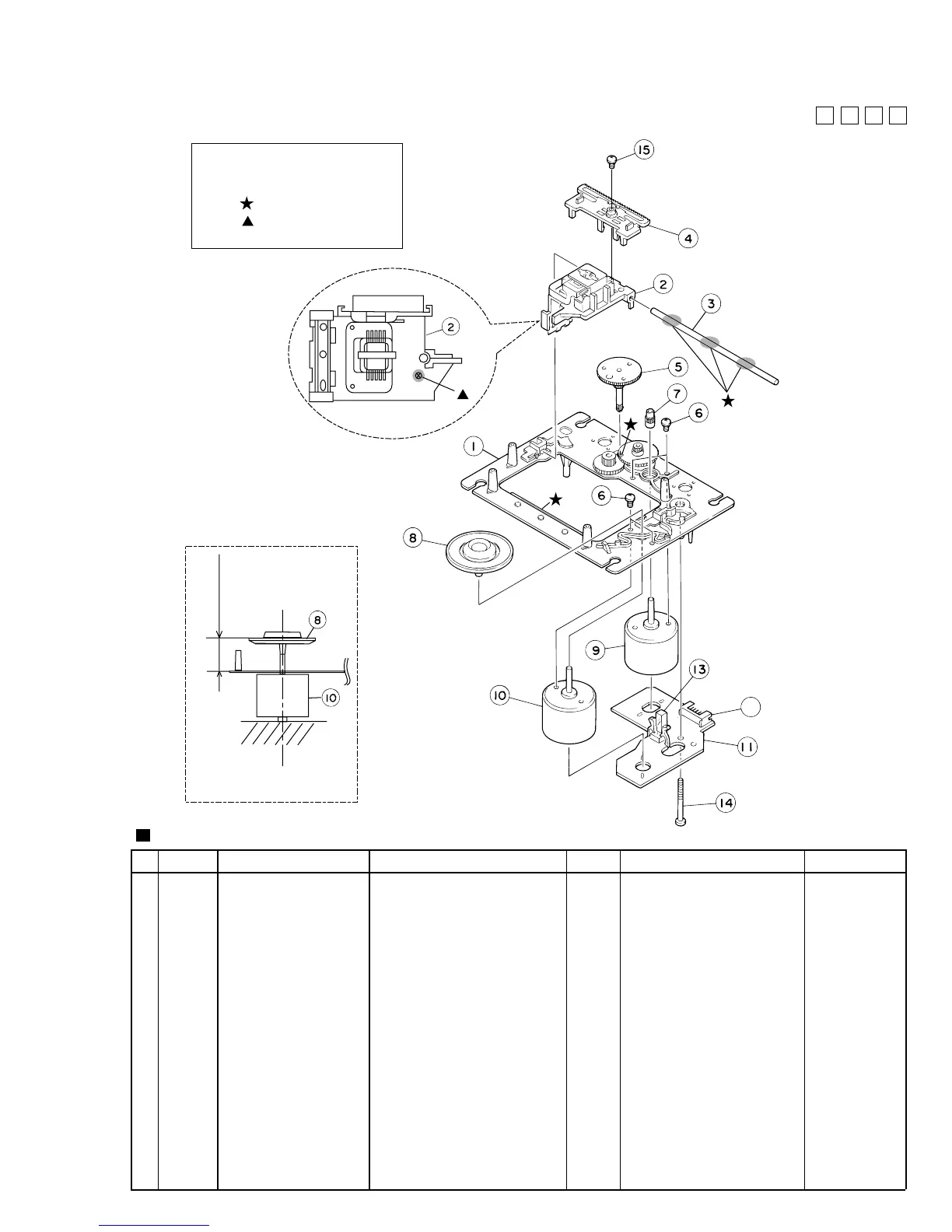

CD mechanism assembly and parts list
Block No.
M
M
M
3
19.4
+
-
0.1mm
Turn table hight
12
= EBS0006-013B
= 1401B
Grease & Bond
EXL-M7MB
Item Parts number Parts name Area
A
Parts list (CD mechanism)
Q'ty Description
Block No. M3MM
1 E102731-221SM CD MECHA BASE A 1
2 OPTIMA-7B CD PICK 1
3 E406777-002SM CD SHAFT 1
4 LV31002-001A CD RACK 1
5 E307745-441SM CD GEAR 3 1
6 QYSDSP2003N SCREW 4
7 E406750-442SM PINION 1
8 EPB-001PK T.TABLE ASSY 1
9 E406784-001 FEED MOTOR 1
10 QAR0130-001 SP MOTOR 1
11 EMW10190-441 CIR BOARD 1
12 QGA2001F1-06 6P PLUG ASSY 1 FOR P011
13 QSW0506-001 LEAF SW 1 FOR S001
14 E75832-221SS SPECIAL SCREW 1 FOR M.CB
15 QYSDSF2606Z SCREW 1
To Next Page
