UX-A7DVD
1-10 (No.22013)

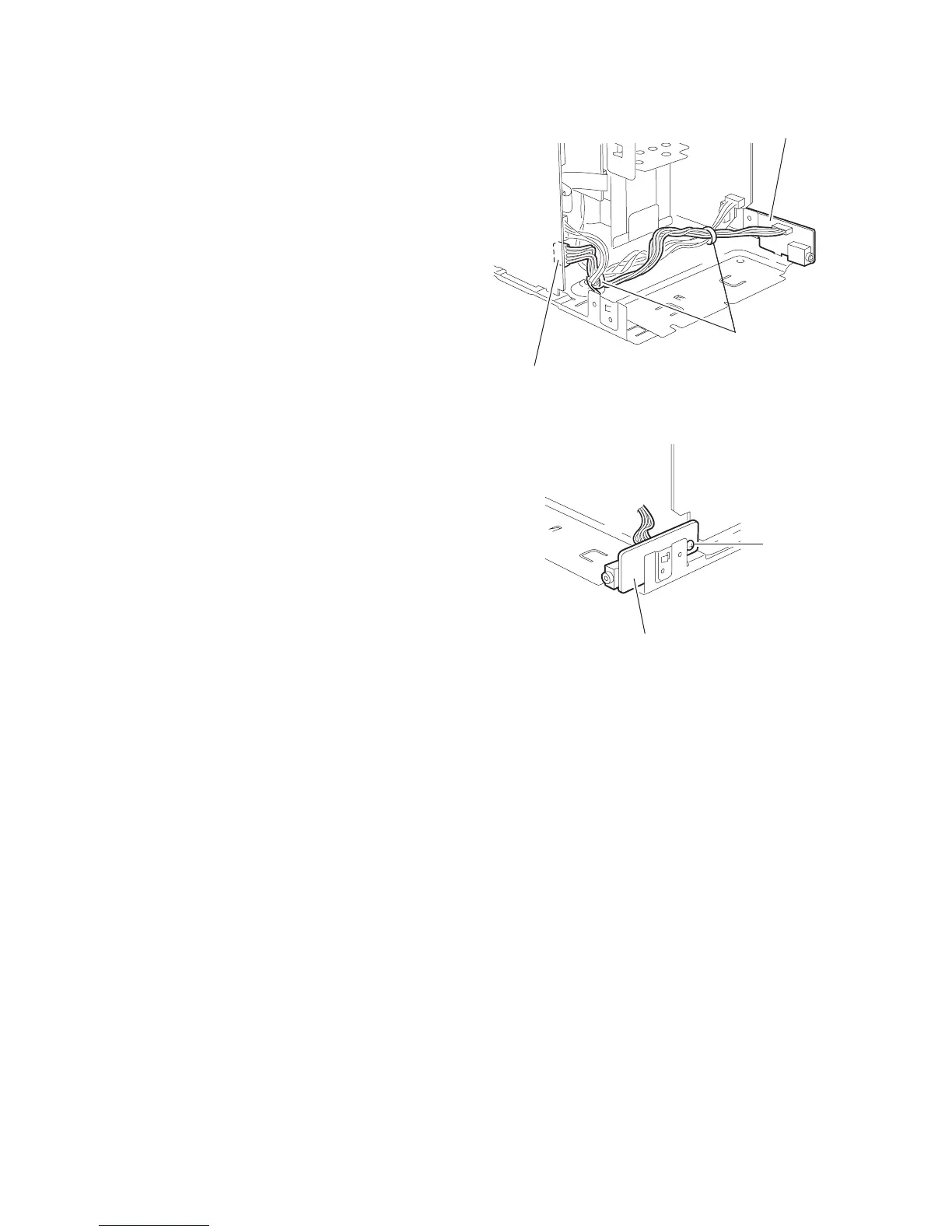

2.1.7 Removing the headphone board
(See Fig.18, 19)
• Prior to performing the following procedure, remove the metal
cover, the DVD mechanism assembly and the front panel as-
sembly.
(1) Disconnect the wire from connector CN310 on the main
board on the left side of the body.
(2) Release the wires from the two clamps on the bottom chas-
sis.
(3) Remove the screw L attaching the headphone board on
the right side of the body.
Fig.18
Fig.19
Headphone board
Clamp
Main board
CN310
L
Headphone board
To Next Page
