UX-A7DVD
(No.22013)1-29

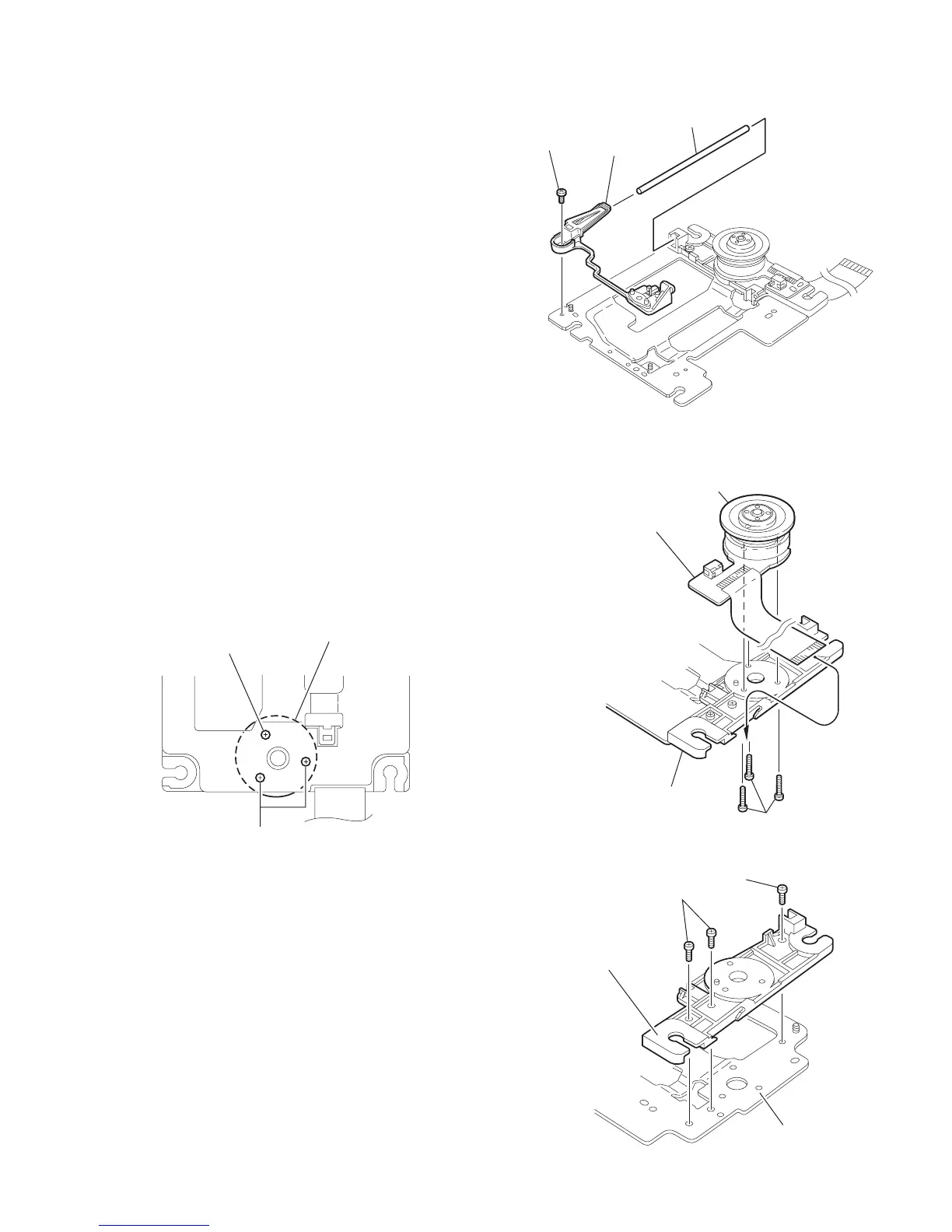

2.4.4 Removing the shaft holder/ shaft
(See Fig.20)
• Prior to performing the following procedure, remove the feed
motor assembly and the pickup.
(1) Remove the screw K attaching the shaft holder.
(2) Remove the shaft.
Fig.20
2.4.5 Removing the spindle motor assembly
(See Fig.21~23)
• Prior to performing the following procedure, remove the feed
motor assembly, the pickup, the shaft and the shaft holder.
(1) Turn over the mechanism base and remove the three
screws L attaching the spindle motor assembly.
ATTENTION:
When reassembling, set the card wire extending from
the spindle motor board to the notch of the spindle base.
(2) Remove the three screws M and the spindle base.
Fig.21
Fig.22
Fig.23
Shaft
K
Shaft holder
L
L
Spindle motor
Spindle motor assembly
Spindle motor board
Spindle base
L
M
M
Spindle base
Mechanism base
To Next Page
