UX-A7DVD
1-6 (No.22013)
2.1.2 Removing the DVD mechanism assembly
(See Fig.4, 5)
Prior to performing the following procedure, remove the metal
cover.
(1) Remove the three screws C attaching the DVD mecha-
nism assembly on top of the body.
(2) Disconnect connector CN502 and CN503 on the DVD ser-
vo board upward at the bottom of the DVD mechanism as-
sembly.
Bring up the DVD mechanism assembly and remove back-
ward.

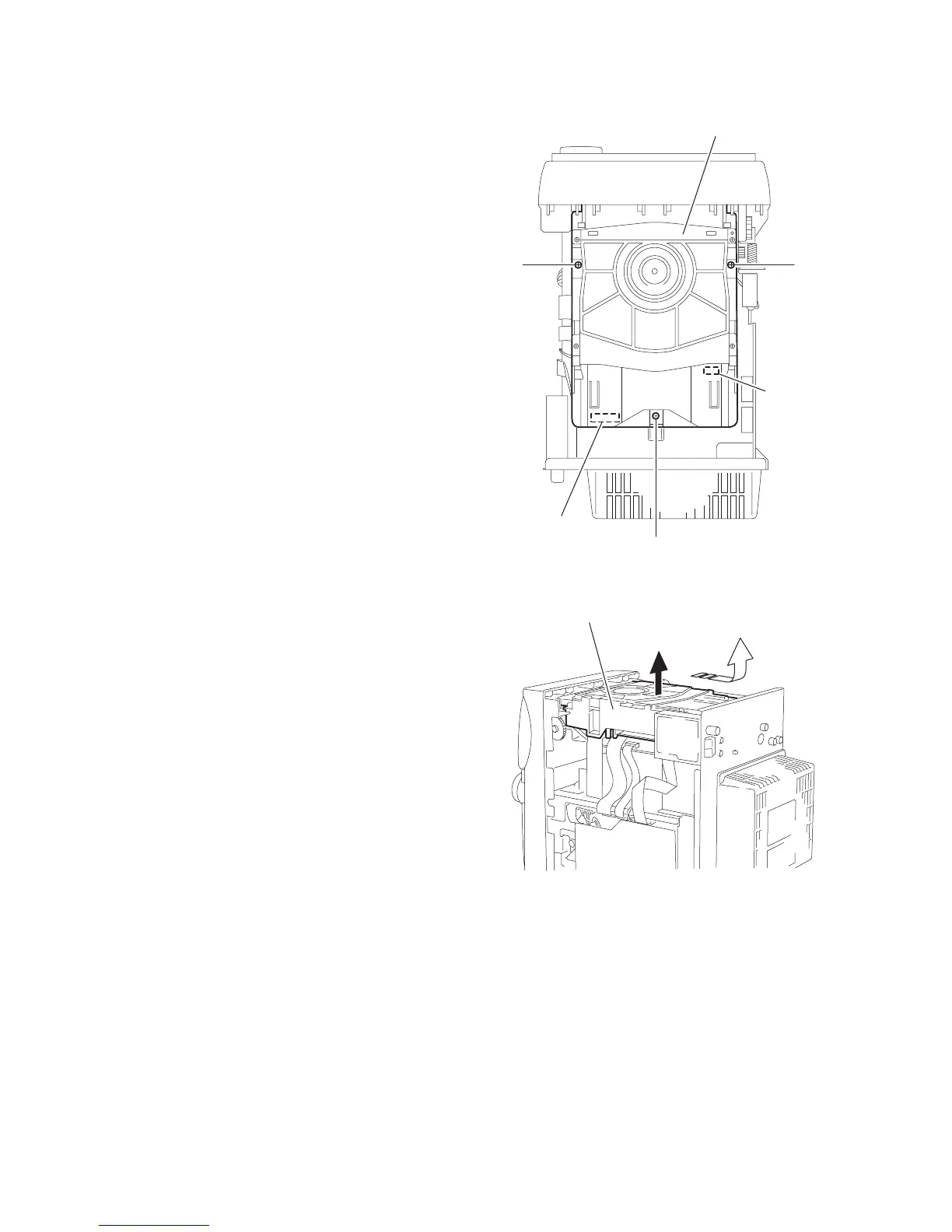

Fig.4
Fig.5
CC
C
DVD mechanism assembly
CN502
CN503
DVD mechanism assmbly
