SECTION 2
Disassembly method
2.1 Main body
2.1.1 Removing the metal cover
(See Fig.1~3)
(1) Remove the six screws A on the back of the body.
(2) Remove the screw B on each side of the body.
(3) Detach the rear side of the metal cover upward while pull-
ing the lower sides outward.

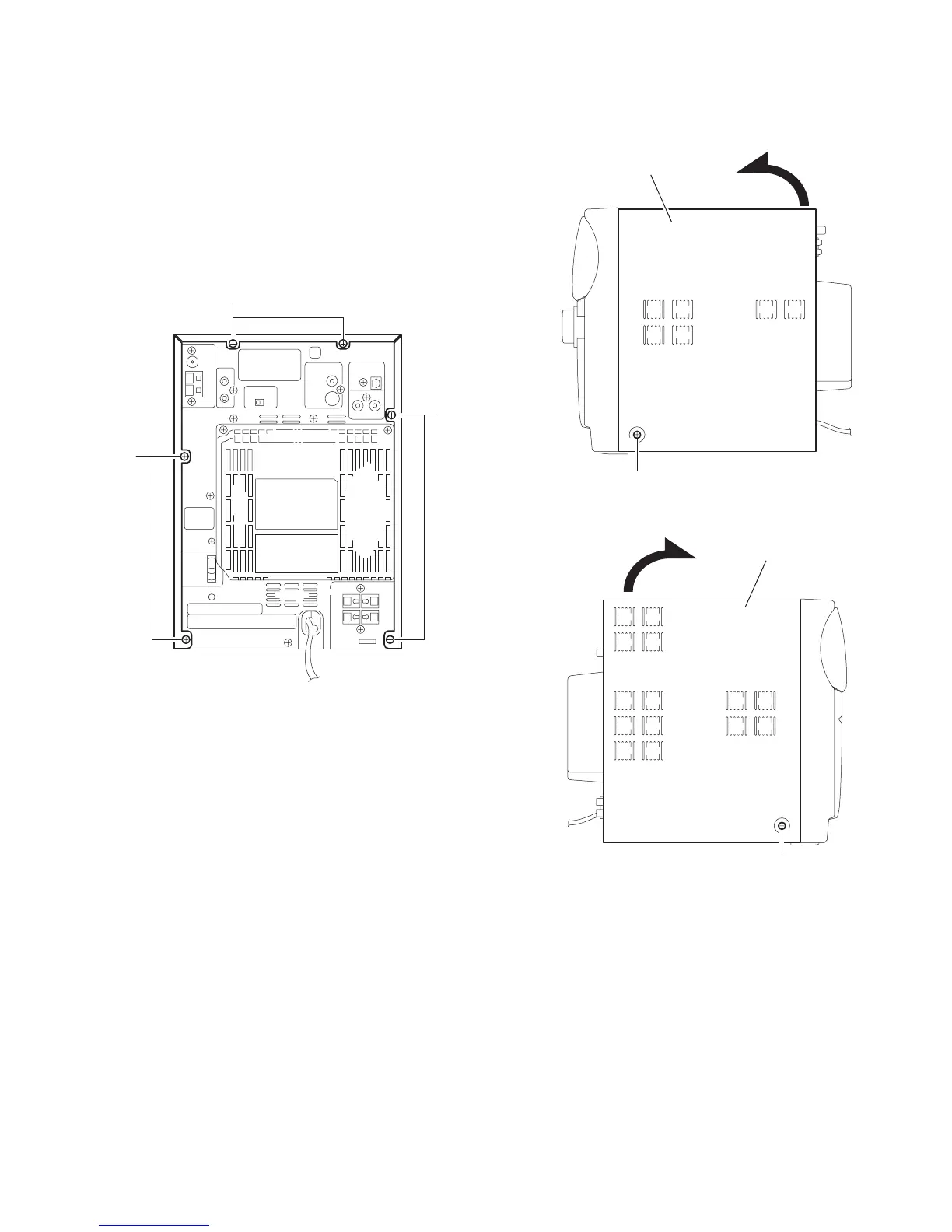

Fig.1
Fig.2
Fig.3
A
A
A
B
Metal cover
B
Metal cover
