JVC UX-G5 Service Manual

1-6 (No.MB431)

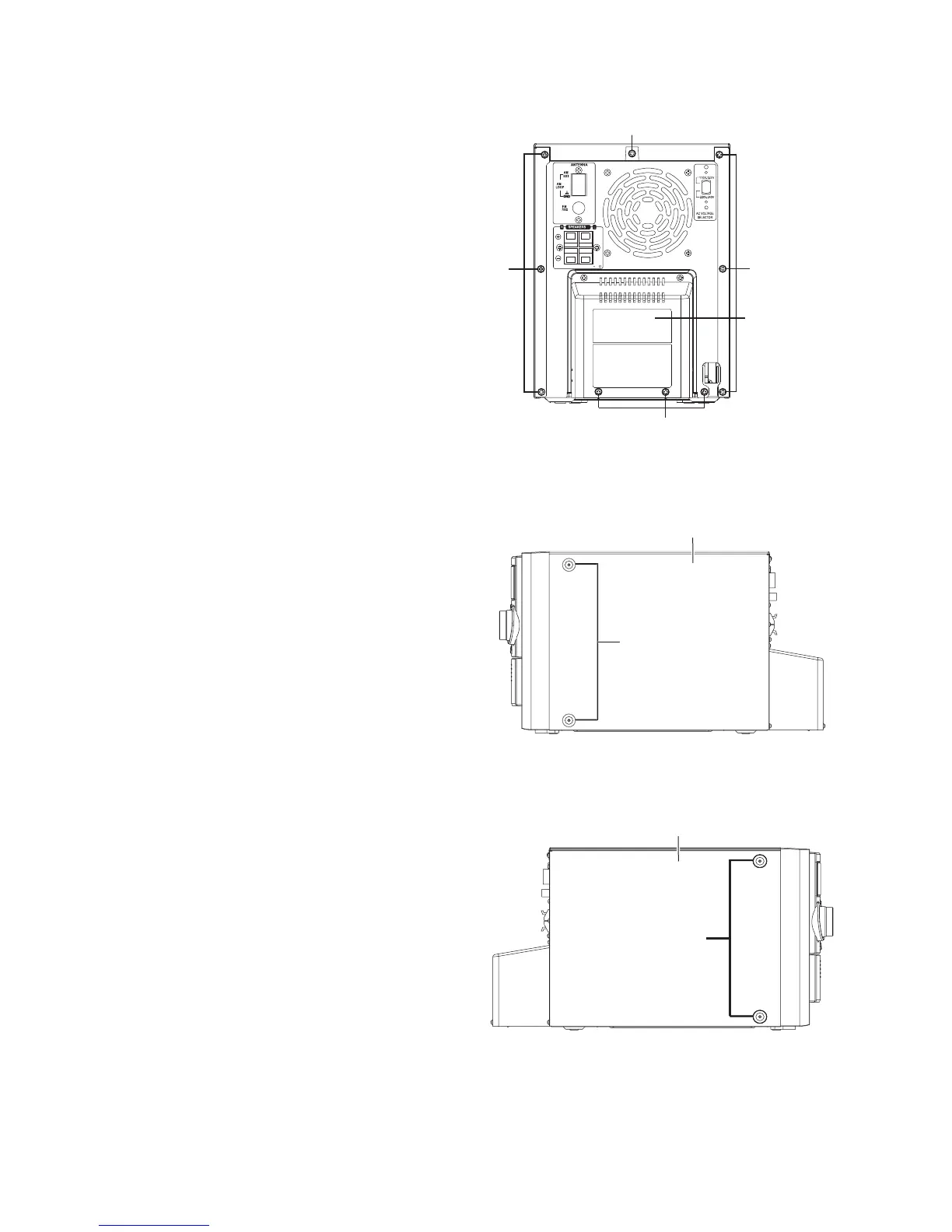

3.1.5 Removing the transformer cover
(See Fig.4)
(1) Remove the ten screws E from top cover.
(2) Take off transformer cover from rear plate.
Fig.4
3.1.6 Removing the Right plate
(See Fig.5)
(1) Remove the two screws F.
(2) Take off right plate from main body.
Fig.5
3.1.7 Removing the Left plate
(See Fig.6)
(1) Remove the two screws G.
(2) Take off left plate from main body.
Fig.6
SPEAKERS IMPEDANCE:6 16
E
E
Transforme
r
cover
E
E
F
Right plate
G
Left plate
