5

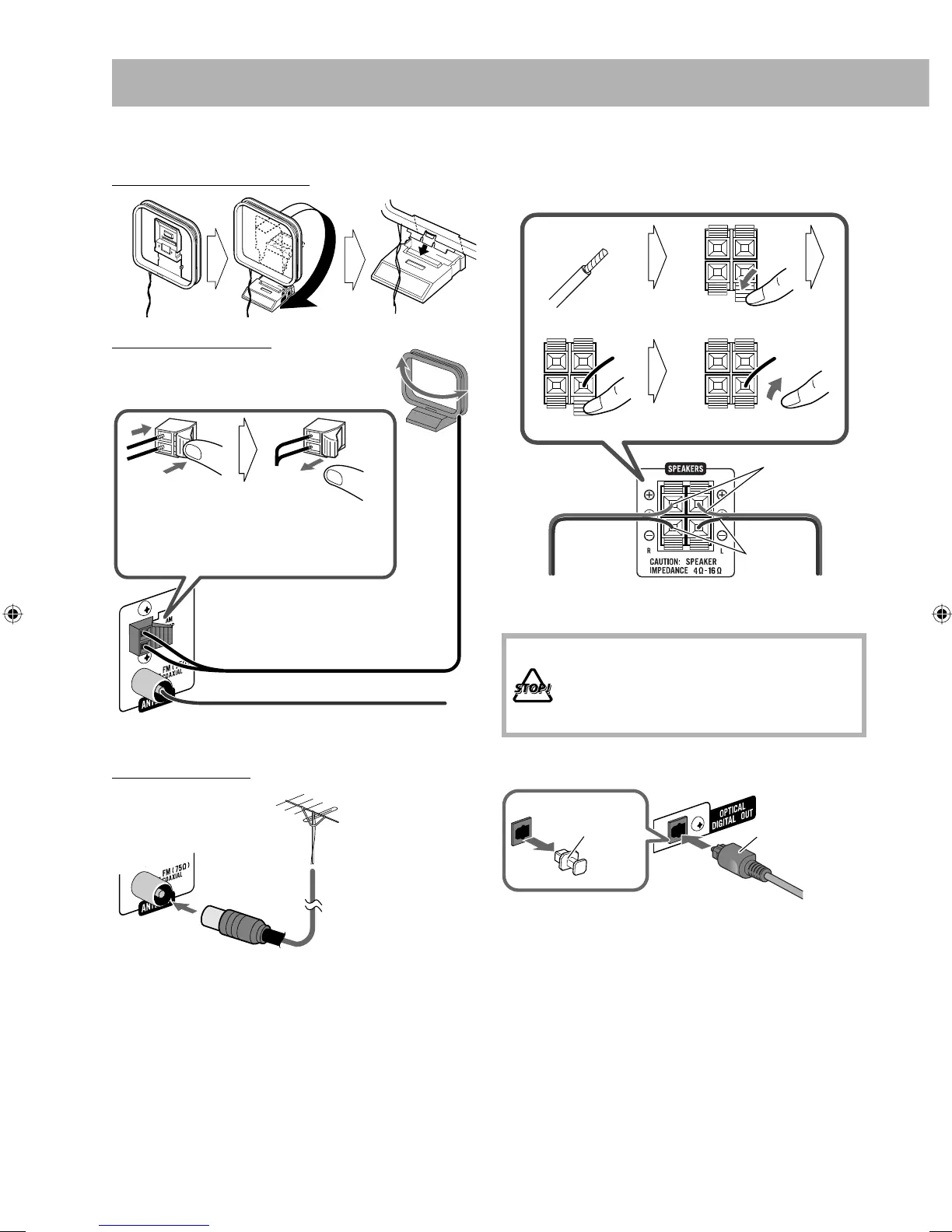

~ AM/FM antenna
To assemble the AM loop antenna
To connect AM/FM antenna
For better FM reception
Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75 Ω wire with coaxial type
connector.
AM loop antenna (supplied)
Turn it until the best reception is obtained.
If the cords are covered with vinyl,
remove the vinyl to expose the tip of the
cord by twisting the vinyl.
FM antenna (supplied)
Extend it so that you can obtain the
best reception.
FM outdoor antenna
(not supplied)
Ÿ Speakers
• When connecting the speaker cords, match the polarity
of the speaker terminals: red to (+) and black to (–)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom of
the speakers.
! Digital audio component
• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO”
menu correctly according to the connected digital audio
equipment (see page 33).
• The digital signal through the OPTICAL DIGITAL OUT
terminal is transmitted only when “DVD/CD” is selected
as the source.
Insert Release
Red
Black
From right
speaker
From left
speaker
Press and hold
Optical digital
cord (not
supplied)
Protective cap
EN01-08_UX-GP7V[U]1.indd 5EN01-08_UX-GP7V[U]1.indd 5 6/16/08 11:21:46 AM6/16/08 11:21:46 AM
