3.1.3 Removing the rear panel
(See Fig.7)
• Remove the metal cover.
(1) From the back side of the main body, remove the five
screws E attaching the rear panel.
(2) Remove the screw F attaching the rear cover.
(3) Remove the rear panel from the chassis while extending
the sections d of the rear panel in the direction of the arrow.
Reference:
When removing the rear cover from the rear panel, remove the
screw F and two screws F’.

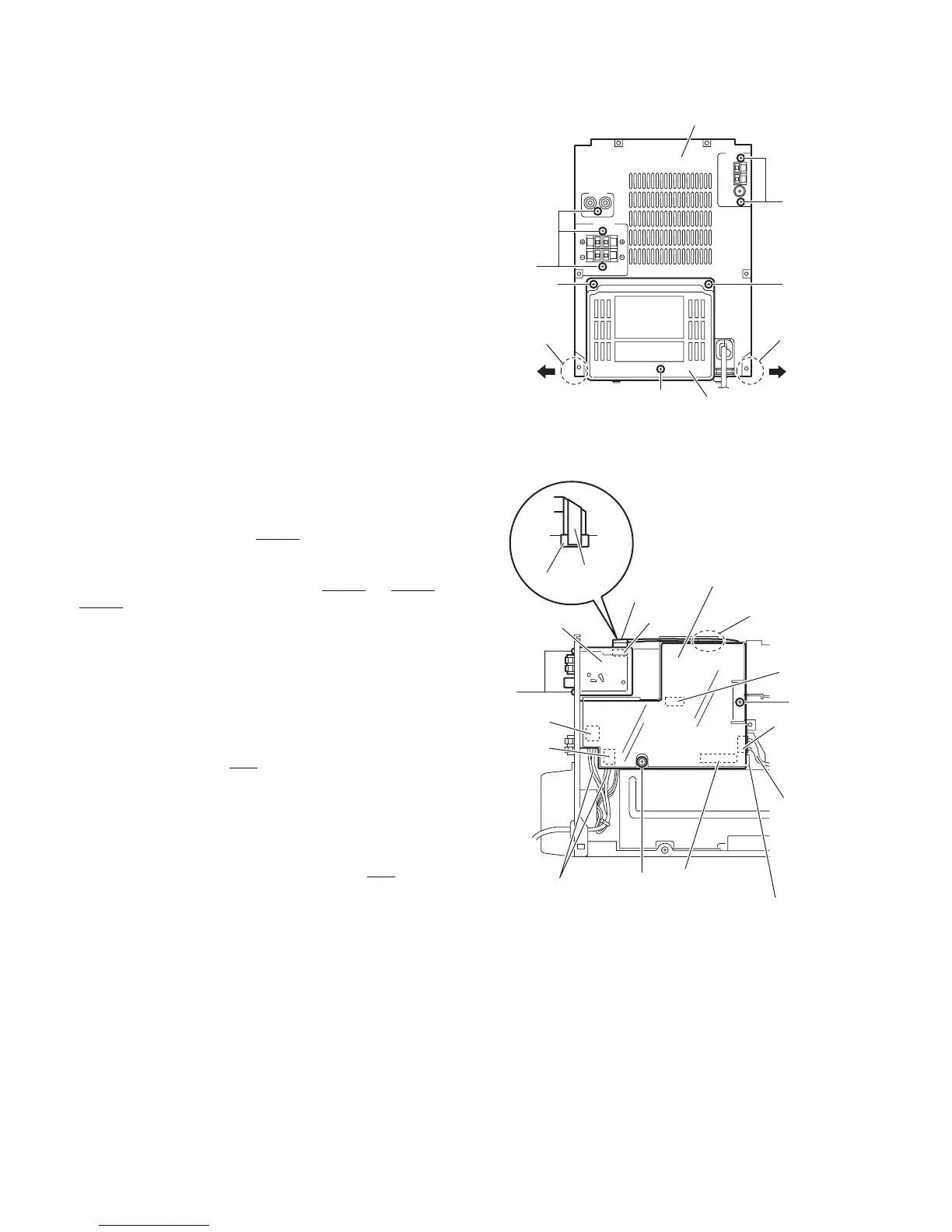

Fig.7
3.1.4 Removing the power supply board
(See Fig.8)
• Remove the metal cover.
(1) From the left side of the main body, remove the screw G
and screw H attaching the power supply board.
(2) Disconnect the connectors CN103
on the power supply
board toward this side.
(3) From the forward side of the power supply board, discon-
nect the wires from the connectors (CN100
to CN102,
CN104
).
Reference:
When attaching the screw G, attach the primary protector with
it.
3.1.5 Removing the tuner
(See Fig.8)
• Remove the metal cover.
(1) From the left side of the main body, disconnect the card
wire from the connector CN1
on the tuner.
(2) From the back side of the main body, remove the two
screws J attaching the tuner.
Reference:
• After attaching the tuner, put the card wire on the section e
of the primary protector.
• When connecting the card wire to the connector CN1
, fix the
card wire with the spacer as before.
Fig.8
E
Rear panel
Rear cover
d
d
F'
E
F
F'
G
Card wire
CN102
H
CN1
Power supply board
e
CN103
CN100
CN101
J
Tuner
Primary protector
CN104
Wire
CN1
Spacer
Wires
To Next Page
