(No.MB230)1-21
3.2.6 Removing the DVD traverse mechanism assembly
(See Fig.11)
• Prior to performing the following procedures, remove the tray
assemblies and DVD servo board.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the three screws H attaching the DVD
traverse mechanism assembly.
(2) Remove the card wire from the section i.
(3) Remove the wire from the section j.
(4) Take out the DVD traverse mechanism assembly from the
DVD changer mechanism assembly.

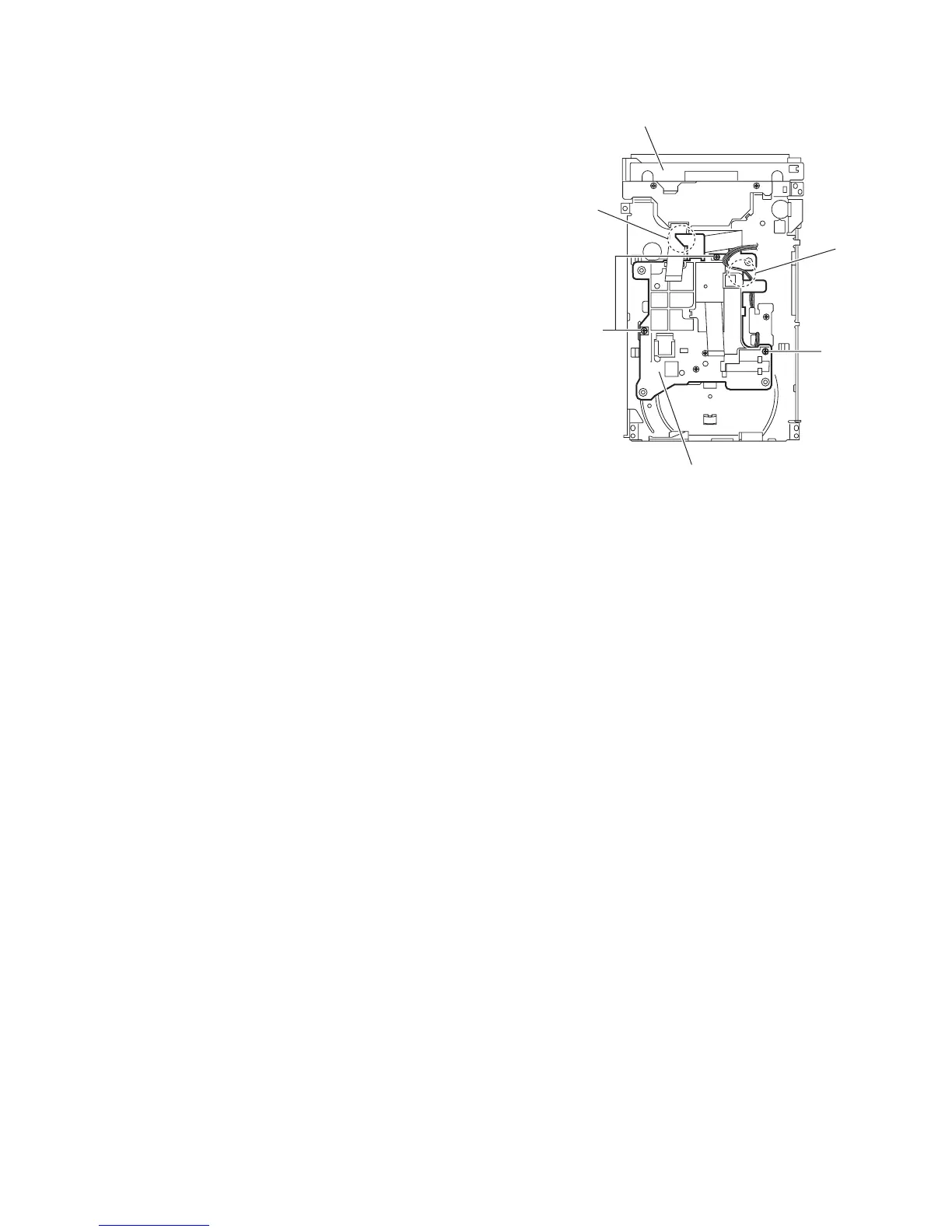

Fig.11
H
H
DVD changer mechanism assembly
DVD traverse mechanism assembly
j
i
To Next Page
