VS-DT2000
1-10

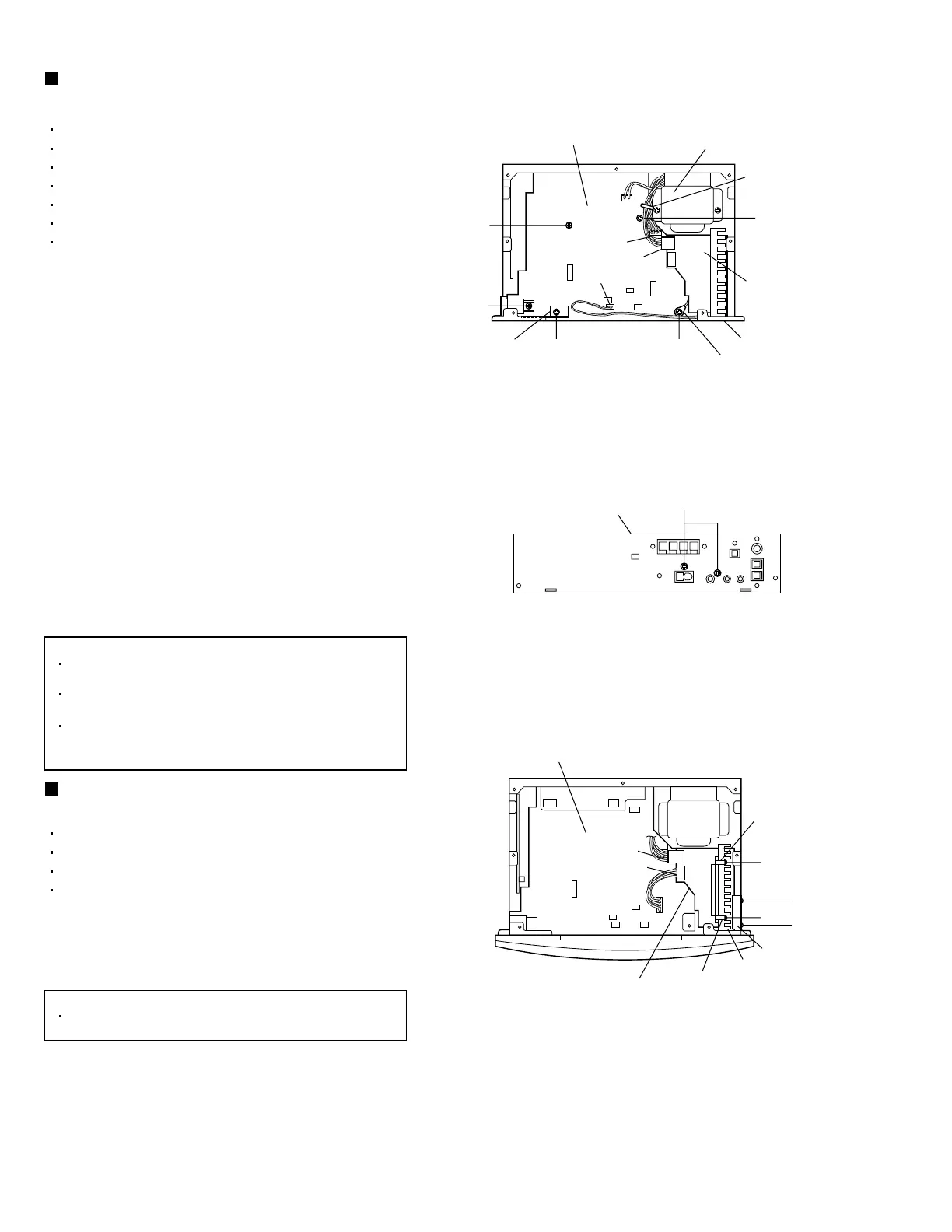

Fig.10
Fig.11
Fig.12
Wire clamp
Wire holder
Earth wire
Main board
CN191
CN194
CN192
CN181
Power amplifier
board
L
M
L'K
Main board
Q
Power amplifier
board
Heat sink
Fan motor
CN192
CN193
Hook e
Hook e
Rear panel
N
Q
P
P
Power transformer
L
Bottom chassis
[Reference] Attaching the main board
When attaching the screw L', attach the earth
wire of the main board at the same time.
When attaching the screw K, also attach the
wire holder together with it.
After connecting the wires to the connectors
CN192 and CN193 on the power amplifier
board, bundle them using wire holder.
[Reference]
It is not necessary to remove the wire from
the fan motor.
Removing the main board
(See Figs. 10 and 11.)
1.
2.
3.
4.
5.
6.
7.
Disconnect the wire from connector CN192 on the
power amplifier board.
Disengage the wire clamp bundling the wire of the
power transformer.
Disconnect the wires from connectors CN181,
CN191 and CN194 on the main board.
Remove the screw K, which retains the main
board, together with the wire holder.
Remove the two screws L, screw L' and screw M
attaching the main board.
Remove the two screws N attaching the main
board and then remove the rear panel.
Take out the main board from the bottom chassis.
Remove the top lens.
Remove the bottom panel.
Remove the top panel.
Remove the CD mechanism assembly.
Remove the front panel assembly.
Remove the tuner board.
Remove the speaker board.
Removing the power amplifier board
(See Fig. 12.)
1.
2.
Disconnect the wires from connectors CN192 and
CN193 on the power amplifier board.
Remove the two screws P attaching the fan motor.
Remove the top lens.
Remove the bottom panel.
Remove the top panel.
Remove the CD mechanism assembly.
3.
4.
Remove the two screws Q attaching the power
amplifier board.
Lift the power amplifier board, disengage the two
hooks e from the heat sink of the main board and
take out the power amplifier board.
