JVC VS-DT2000 Service Manual

VS-DT2000
1-18

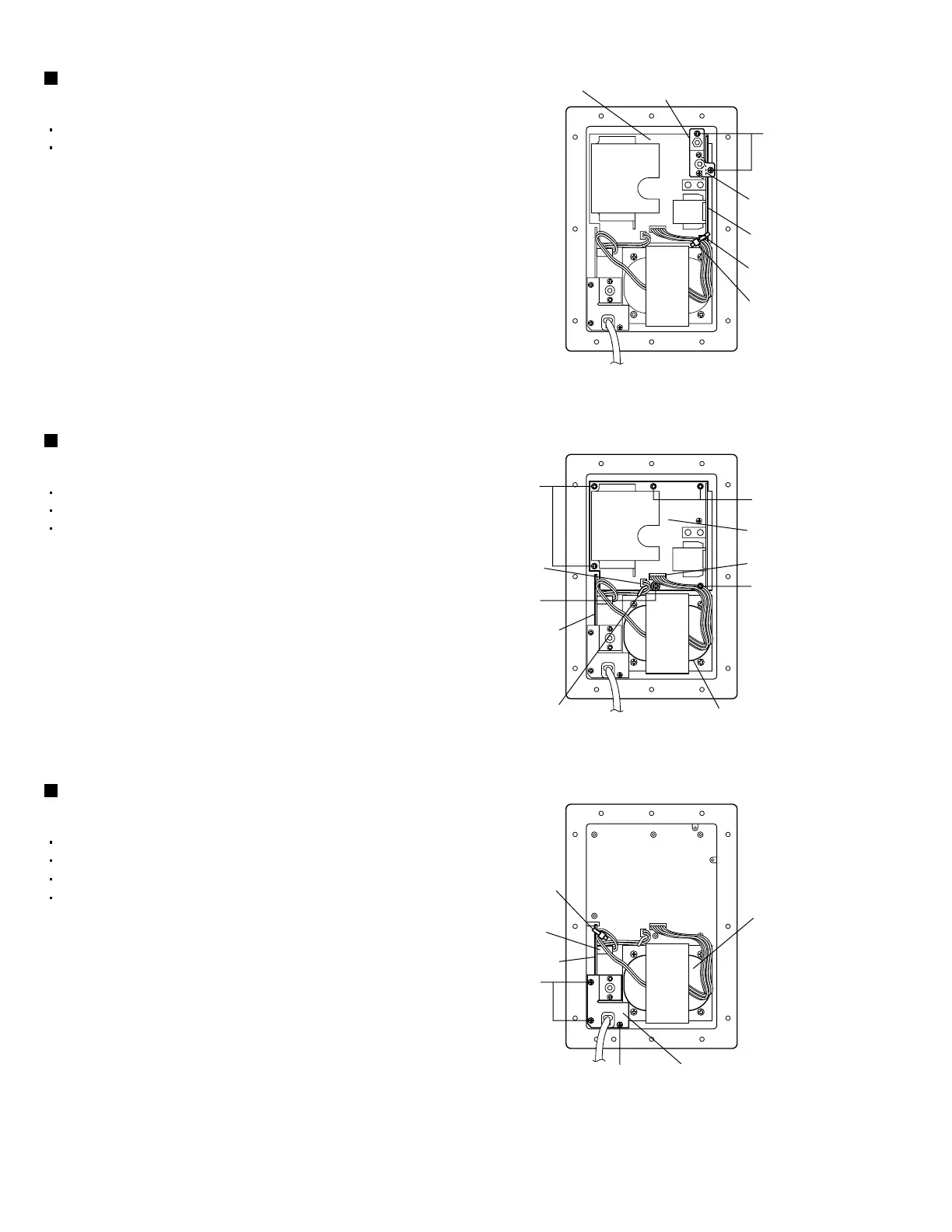

Fig.4
Volume bracket
CN211
CN251
Tie band
Tie band
CN299
Pre-amplifier
board
C
Fig.5
Fig.6
Power supply
board
Power transformer
Switch board
CN281
CN291
Wire holder
D
D
D
E
Switch board
AC bracket
Power
transformer
F
F
Power supply board
Removing the pre-amplifier board
(See Fig. 4.)
1.
2.
3.
4.
Remove the two screws C attaching the pre-
amplifier board from the volume bracket.
Disengage the tie band bundling the wires from the
power transformer.
Disconnect the connector CN211 on the pre-
amplifier board from the power supply board.
Disconnect the wire from connector CN251 on the
pre-amplifier board.
Remove the amplifier assembly.
Remove the back panel.
Removing the power supply board
(See Fig. 5.)
1.
2.
3.
Remove the five screws D attaching the power
supply board.
Remove the screw E attaching the power supply
board and wire holder.
Disconnect the wires from connectors CN281 and
CN291 on the power supply board.
Remove the amplifier assembly.
Remove the back panel.
Remove the pre-amplifier board.
Removing the switch board
(See Fig. 6.)
1.
2.
3.
Remove the three screws F attaching the AC
bracket.
Disengage the tie band bundling the wires from the
power transformer.
Disconnect the wire from connector CN299 on the
switch board.
Remove the amplifier assembly.
Remove the back panel.
Remove the pre-amplifier board.
Remove the power supply board.
