XL-PG31/XL-PG51/XL-PV310
1-5
A
A
B
C
D
F
E
A
A

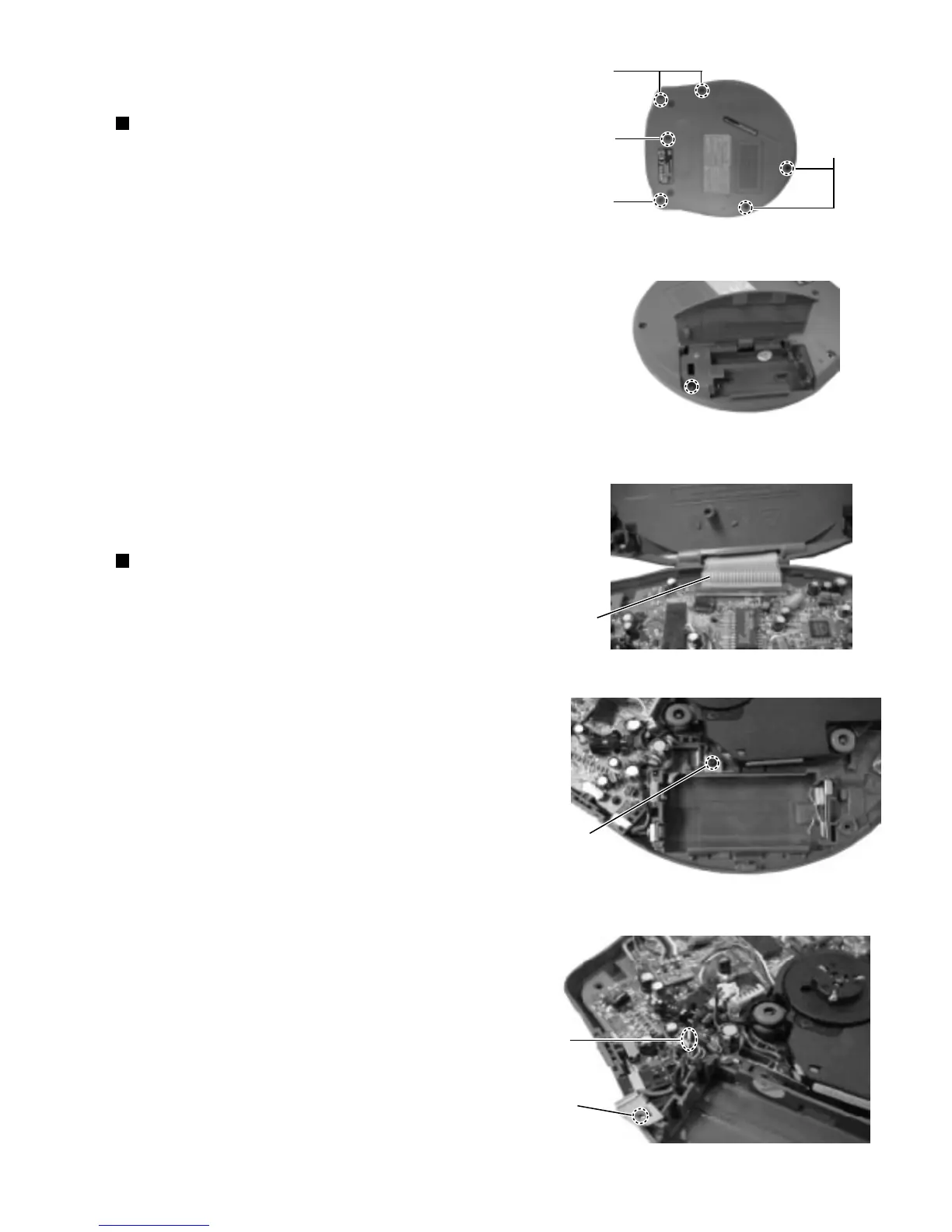

Disassembly Method
Removing the cabinet
1). Remove 6 screws A from bottom cabinet.
(See Fig.1)
2). Remove 1 screw B from battery compartment.
(See Fig.2)
3). The bottom cabinet comes off.
Remove main parts
1
)
. Disconnect the membrane C.
(See Fig.3)
Caution: Pay attention not damage the membrane C
during disconnection.
2). Remove the screw D on rechargeable battery plate.
(See Fig.4)
3). Remove "+" E battery plate and "-" F battery plate.
(See Fig.5)
Fig.1
Fig.2
Fig.3
Fig.5
Fig.4
