Additional information
Names of parts and controls

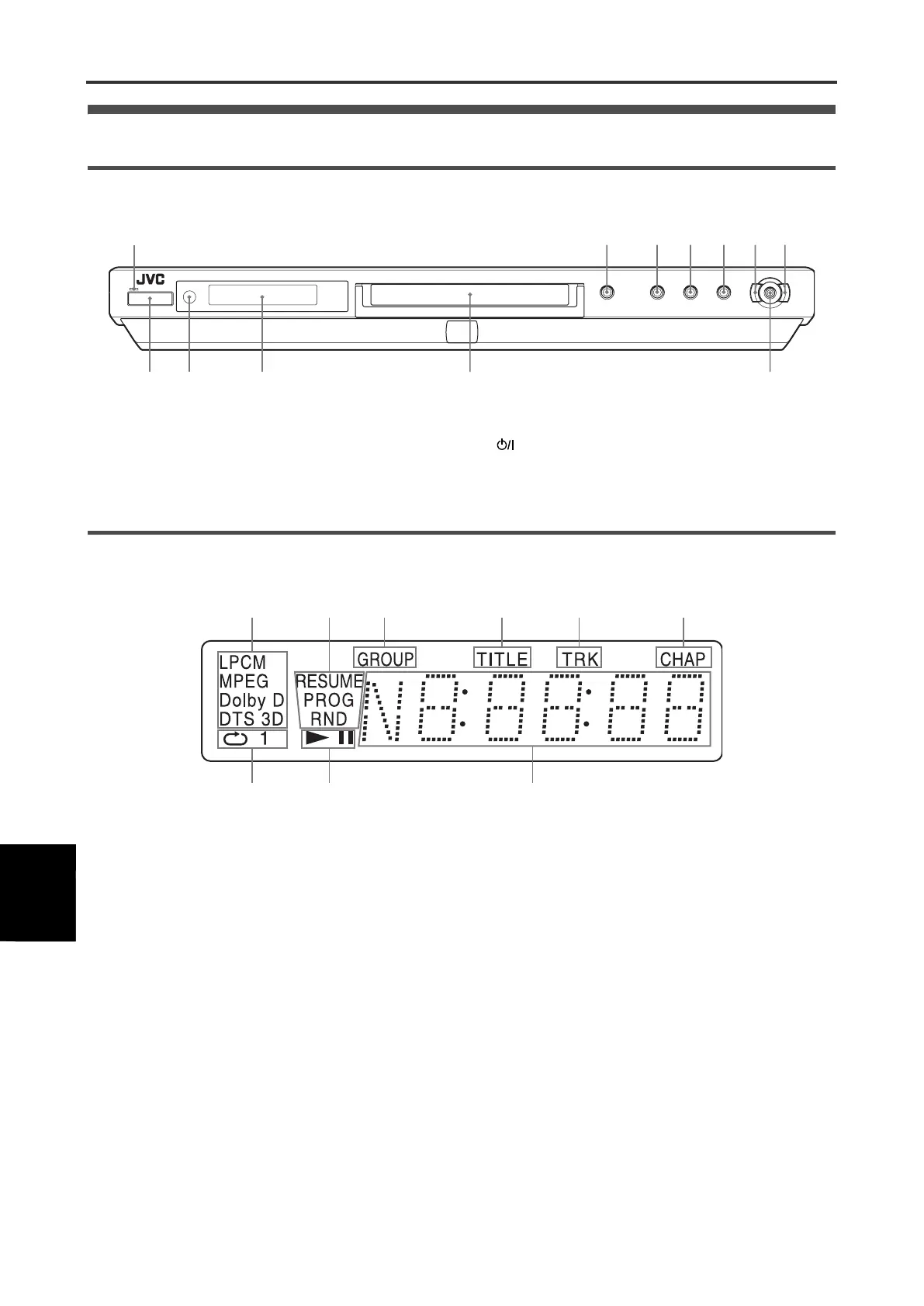

Front panel
1 STANDBY indicator (6)
2 0 button (7)
3 7 button (7, 8)
4 3 button (7, 9)
5 8 button (8, 9)
6 4 button (9, 10)
7 ¢ button (9, 10)
8 STANDBY/ON button (6)
9 Remote sensor (5)
0 Display window (see the illustration below)
- Disc tray (7)
= QUICK PLAYBACK button (9)
Display window
1 Audio format indicators
2 Resume/Program/Random indicators
3 Group indicator
4 Title indicator
5 Track indicator
6 Chapter indicator
7 Repeat mode indicator
8 3(play) / 8(pause) indicators
9 Multi-information window
-=8 9 0
1 23 7654
1
7
3 4 5 62
8 9
