1-12 (No.MB618)

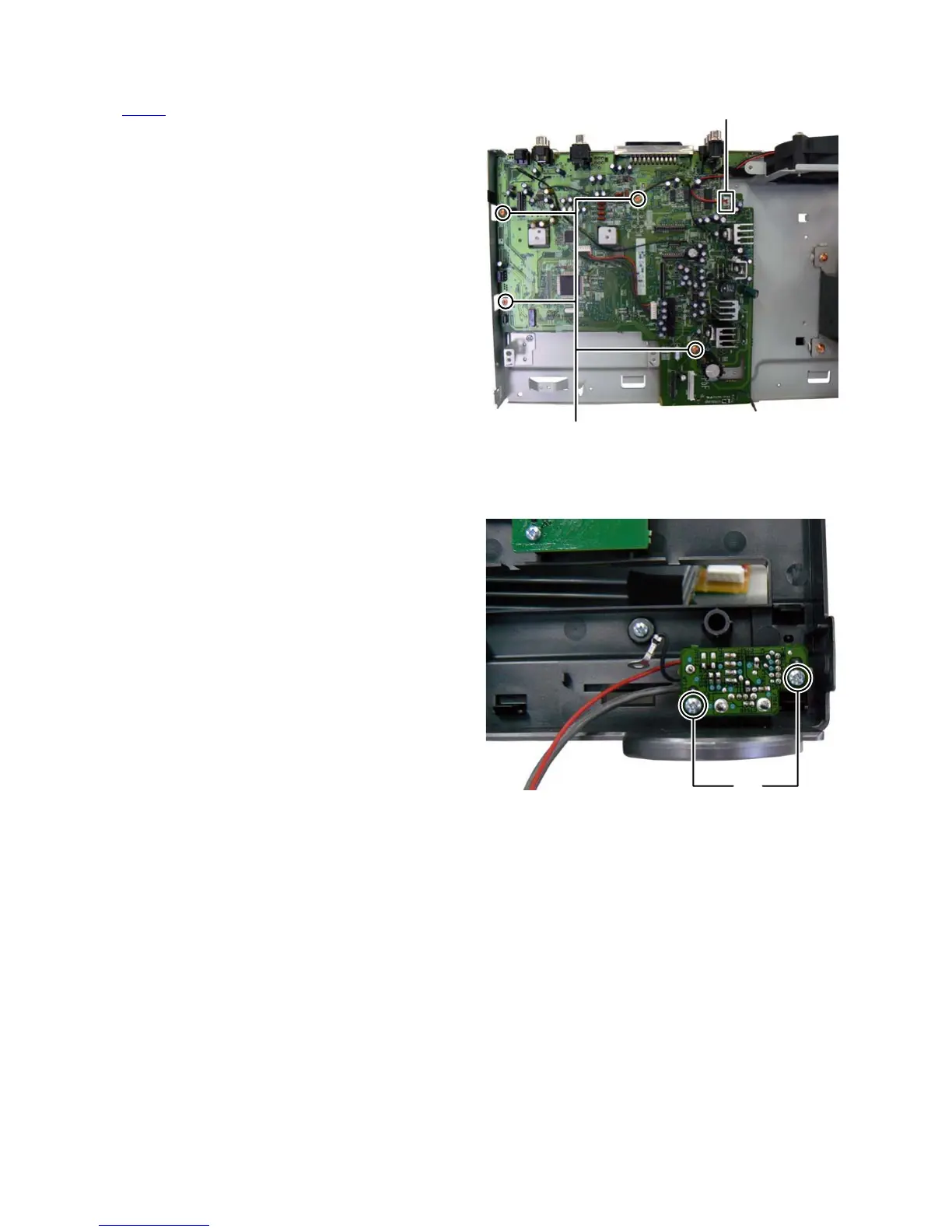

3.1.8 Removing the MAIN BOARD assembly (See Fig.13)
(1) Disconnect the connector wire from Fan connected to con-
nector CN152
of the MAIN BOARD assembly.
(2) Remove the four screws T attaching the MAIN BOARD as-
sembly.
Fig.13
3.1.9 Removing the USB BOARD assembly (See Fig.14)
(1) Remove the two screws U attaching the USB BOARD as-
sembly.
Fig.14
CN152
T
U
