JVC XV-THS8 User Manual

(No.MB236)1-25
3.3.12 Removing the cone speaker
(See Figs.18 and 19)
• Prior to performing the following procedures, remove the net
assembly.
(1) From right side of the speaker main body, remove the four
screws Q attaching the cone speaker. (See Fig.18.)
(2) Take out the cone speaker from the speaker main body.
(See Fig.19.)
(3) Disconnect the wires from the terminal of the cone speak-
er. (See Fig.19.)

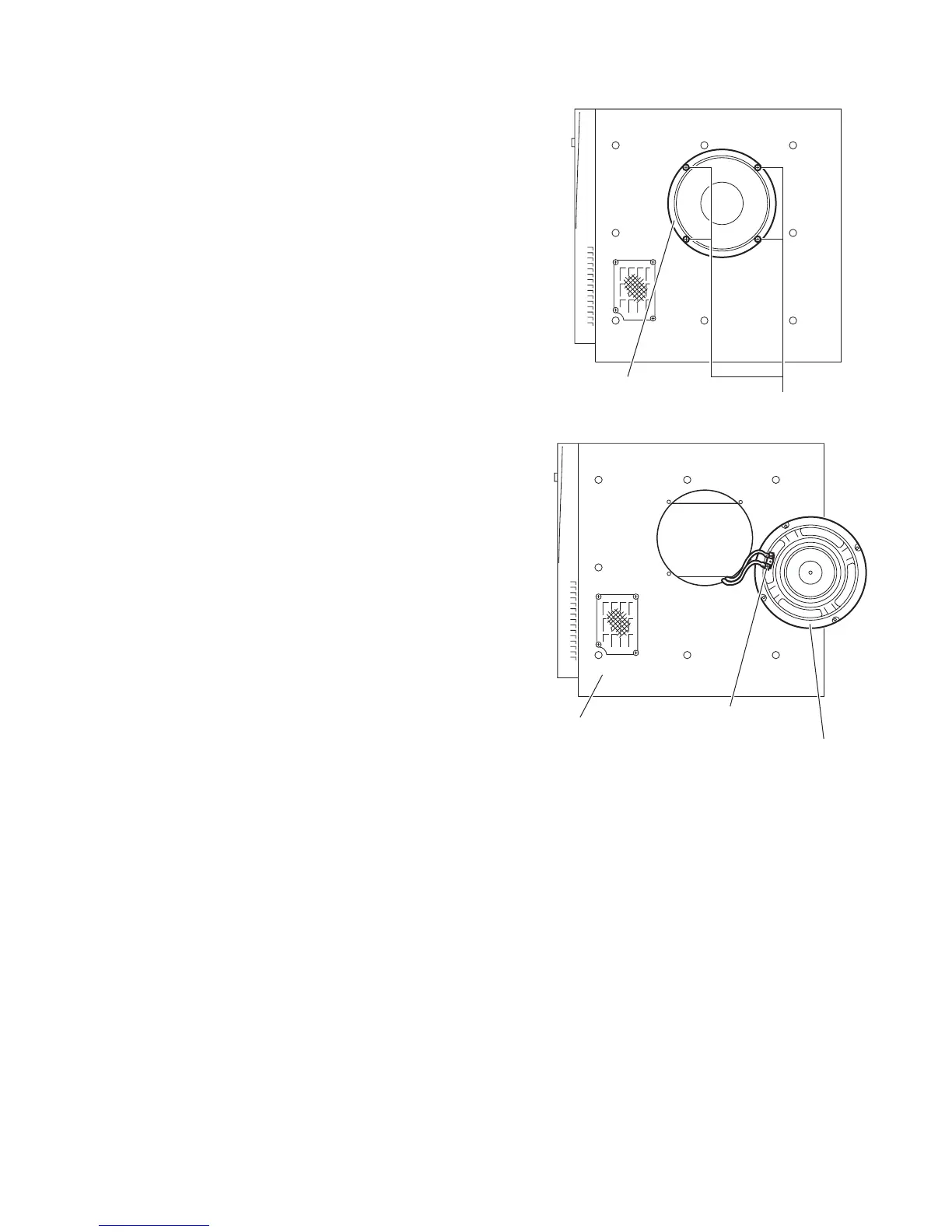

Fig.18
Fig.19
Cone speaker
Q
Cone speaker
Terminal
Speaker main body
