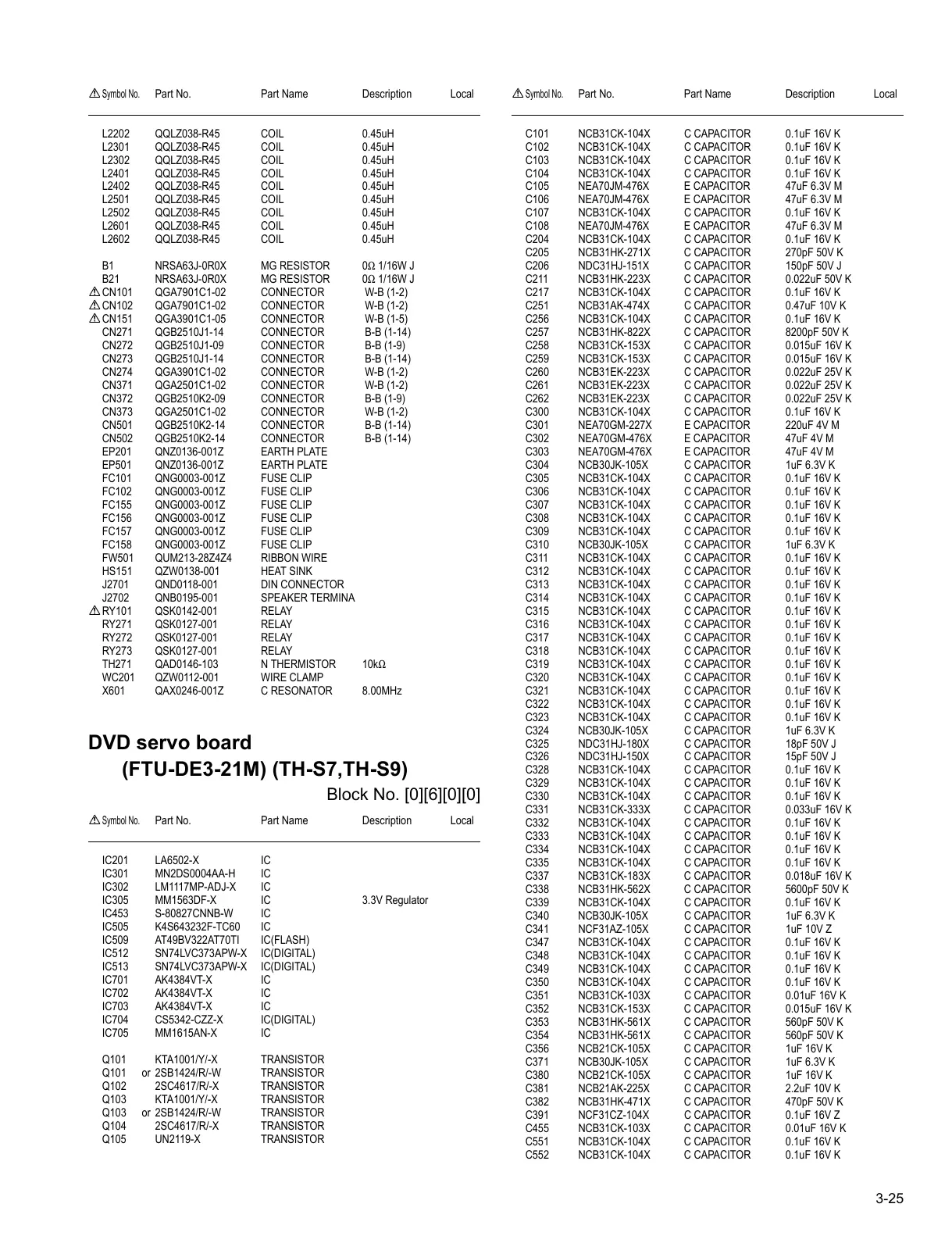

JVC XV-THS8 - Page 79

3-25
DVD servo board
(FTU-DE3-21M) (TH-S7,TH-S9)
Block No. [0][6][0][0]
L2202 QQLZ038-R45 COIL 0.45uH
L2301 QQLZ038-R45 COIL 0.45uH
L2302 QQLZ038-R45 COIL 0.45uH
L2401 QQLZ038-R45 COIL 0.45uH
L2402 QQLZ038-R45 COIL 0.45uH
L2501 QQLZ038-R45 COIL 0.45uH
L2502 QQLZ038-R45 COIL 0.45uH
L2601 QQLZ038-R45 COIL 0.45uH
L2602 QQLZ038-R45 COIL 0.45uH
B1 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B21 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 CN101 QGA7901C1-02 CONNECTOR W-B (1-2)
 CN102 QGA7901C1-02 CONNECTOR W-B (1-2)
 CN151 QGA3901C1-05 CONNECTOR W-B (1-5)
CN271 QGB2510J1-14 CONNECTOR B-B (1-14)
CN272 QGB2510J1-09 CONNECTOR B-B (1-9)
CN273 QGB2510J1-14 CONNECTOR B-B (1-14)
CN274 QGA3901C1-02 CONNECTOR W-B (1-2)
CN371 QGA2501C1-02 CONNECTOR W-B (1-2)
CN372 QGB2510K2-09 CONNECTOR B-B (1-9)
CN373 QGA2501C1-02 CONNECTOR W-B (1-2)
CN501 QGB2510K2-14 CONNECTOR B-B (1-14)
CN502 QGB2510K2-14 CONNECTOR B-B (1-14)
EP201 QNZ0136-001Z EARTH PLATE
EP501 QNZ0136-001Z EARTH PLATE
FC101 QNG0003-001Z FUSE CLIP
FC102 QNG0003-001Z FUSE CLIP
FC155 QNG0003-001Z FUSE CLIP
FC156 QNG0003-001Z FUSE CLIP
FC157 QNG0003-001Z FUSE CLIP
FC158 QNG0003-001Z FUSE CLIP
FW501 QUM213-28Z4Z4 RIBBON WIRE
HS151 QZW0138-001 HEAT SINK
J2701 QND0118-001 DIN CONNECTOR
J2702 QNB0195-001 SPEAKER TERMINA
 RY101 QSK0142-001 RELAY
RY271 QSK0127-001 RELAY
RY272 QSK0127-001 RELAY
RY273 QSK0127-001 RELAY
TH271 QAD0146-103 N THERMISTOR 10k Ω
WC201 QZW0112-001 WIRE CLAMP
X601 QAX0246-001Z C RESONATOR 8.00MHz
 Symbol No. Part No. Part Name Description Local
IC201 LA6502-X IC
IC301 MN2DS0004AA-H IC
IC302 LM1117MP-ADJ-X IC
IC305 MM1563DF-X IC 3.3V Regulator
IC453 S-80827CNNB-W IC
IC505 K4S643232F-TC60 IC
IC509 AT49BV322AT70TI IC(FLASH)
IC512 SN74LVC373APW-X IC(DIGITAL)
IC513 SN74LVC373APW-X IC(DIGITAL)
IC701 AK4384VT-X IC
IC702 AK4384VT-X IC
IC703 AK4384VT-X IC
IC704 CS5342-CZZ-X IC(DIGITAL)
IC705 MM1615AN-X IC
Q101 KTA1001/Y/-X TRANSISTOR
Q101 or 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q103 or 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 UN2119-X TRANSISTOR
 Symbol No. Part No. Part Name Description Local
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C108 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C261 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C262 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C300 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C301 NEA70GM-227X E CAPACITOR 220uF 4V M
C302 NEA70GM-476X E CAPACITOR 47uF 4V M
C303 NEA70GM-476X E CAPACITOR 47uF 4V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C306 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-180X C CAPACITOR 18pF 50V J
C326 NDC31HJ-150X C CAPACITOR 15pF 50V J
C328 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C329 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C351 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C353 NCB31HK-561X C CAPACITOR 560pF 50V K
C354 NCB31HK-561X C CAPACITOR 560pF 50V K
C356 NCB21CK-105X C CAPACITOR 1uF 16V K
C371 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C380 NCB21CK-105X C CAPACITOR 1uF 16V K
C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C382 NCB31HK-471X C CAPACITOR 470pF 50V K
C391 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C455 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C551 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C552 NCB31CK-104X C CAPACITOR 0.1uF 16V K
 Symbol No. Part No. Part Name Description Local
