Jydepejsen Zeus User Manual

7
3. Chimney
The Jydepejsen stoves must be installed using a Class A UL 103 HT approved factory-built
chimney system or a code-approved masonry chimney with a flue liner. In Canada, the
installation must conform to NFPA 211 or CAN/CSA-B365, Installation Code for Solid-Fuel-
Burning Appliances and Equipment guidelines and methods. The chimney must extend
through the roof at least 3' (1 m), and 2' (6 m) above any structure within 10' (3 m). The condition
of the chimney and height is very important. We suggest a total minimum height of 10' (3 m).
Both the chimney and the required chimney connector must be in good condition and kept clean.
Note! Mount the special collar using the included hardware. When installing the first piece of
pipe (at the stove), place the pipe over the collar (except on the Trendline 2 where the crimped
end goes inside the collar!), which is designed so any moisture or creosote will drip back into the
stove and burn away. If using a crimped pipe, trim or cut that section off at the bottom and place
it over the collar. Install the remaining stovepipe segments with the crimped end down whenever
possible. The hole in the casting is designed for any moisture to drip back into the stove.

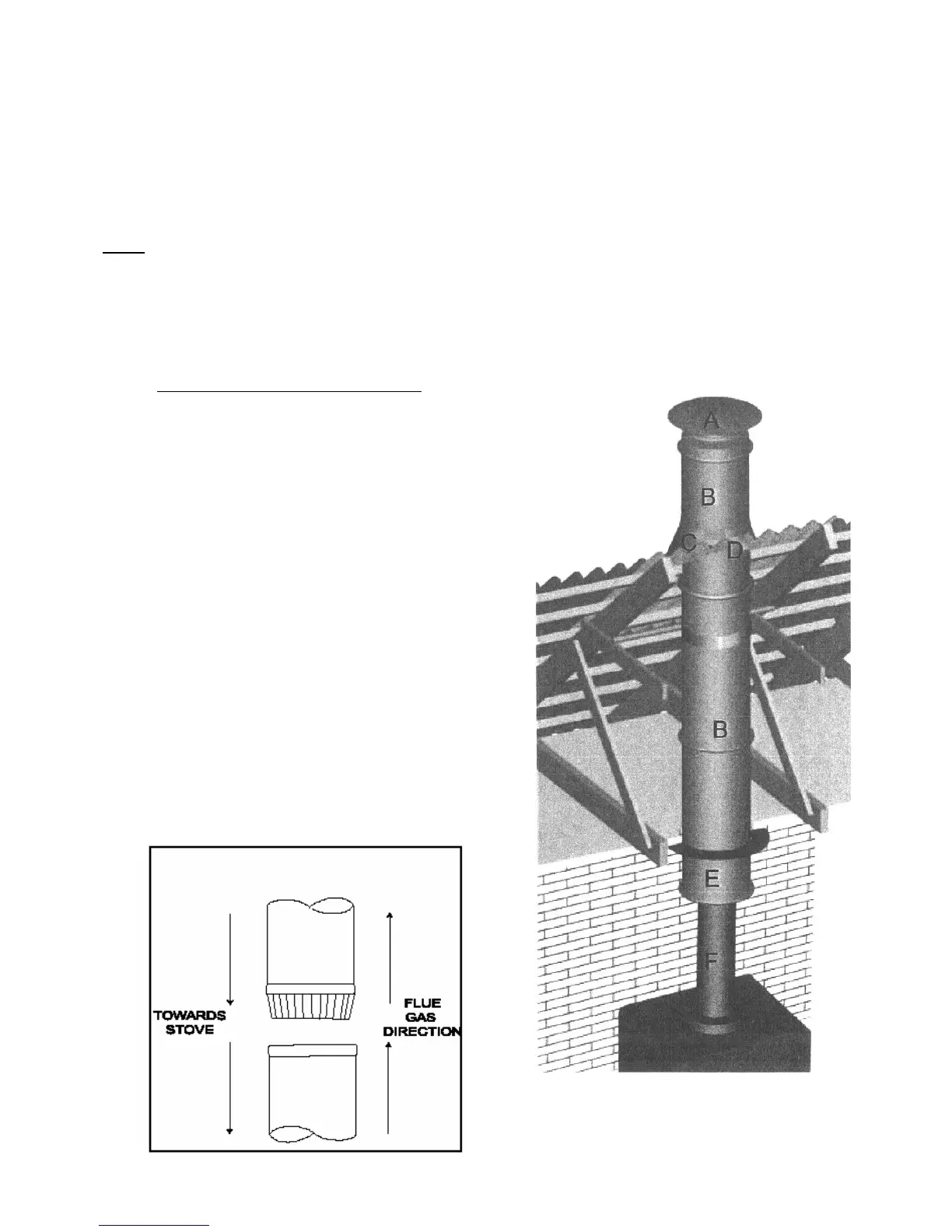

Required Installation Components
A. Chimney cap
B. Insulated chimney
C. Storm collar
D. Roof flashing
E. Ceiling support box or joist
shield / firestop spacer
F. Chimney connector pipe
4. Chimney connector
Aluminum and galvanized steel pipe is not
acceptable for use with our woodstove. These
materials cannot withstand the extreme temperatures
of a wood fire and can give off toxic fumes when
heated.
Do not use the connector pipe as a chimney.
Each chimney connector or chimney connector
section must be installed to the stove flue collar and
to each other with the male (crimped) end toward the
stove.
Chimney Connector
