6
5b
!

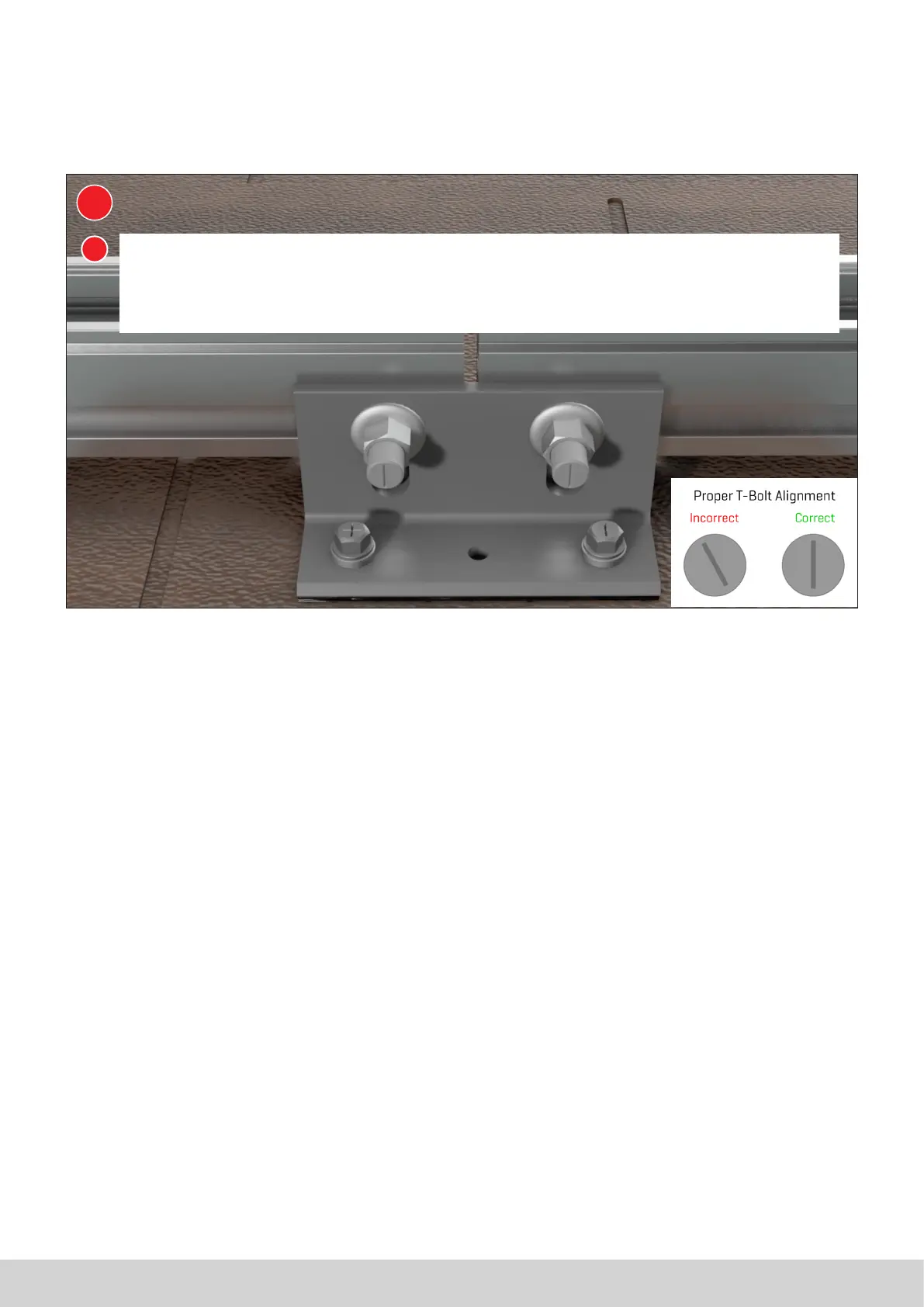

When connecting two rails to the Splice Foot, insert two T-Bolts through the Splice Foot slots and into side
channel of CrossRail. Turn the T-Bolts clockwise ensuring that the mark at the end of the shaft is vertical,
indicating proper alignment. Leave a 5/8" gap between rails in the center of the Splice Foot. Tighten to 25.8 ft-
lbs (35 Nm).
Note: Rail connector function for Splice Foot is only compatible with mill rail.
Splicing two rails
