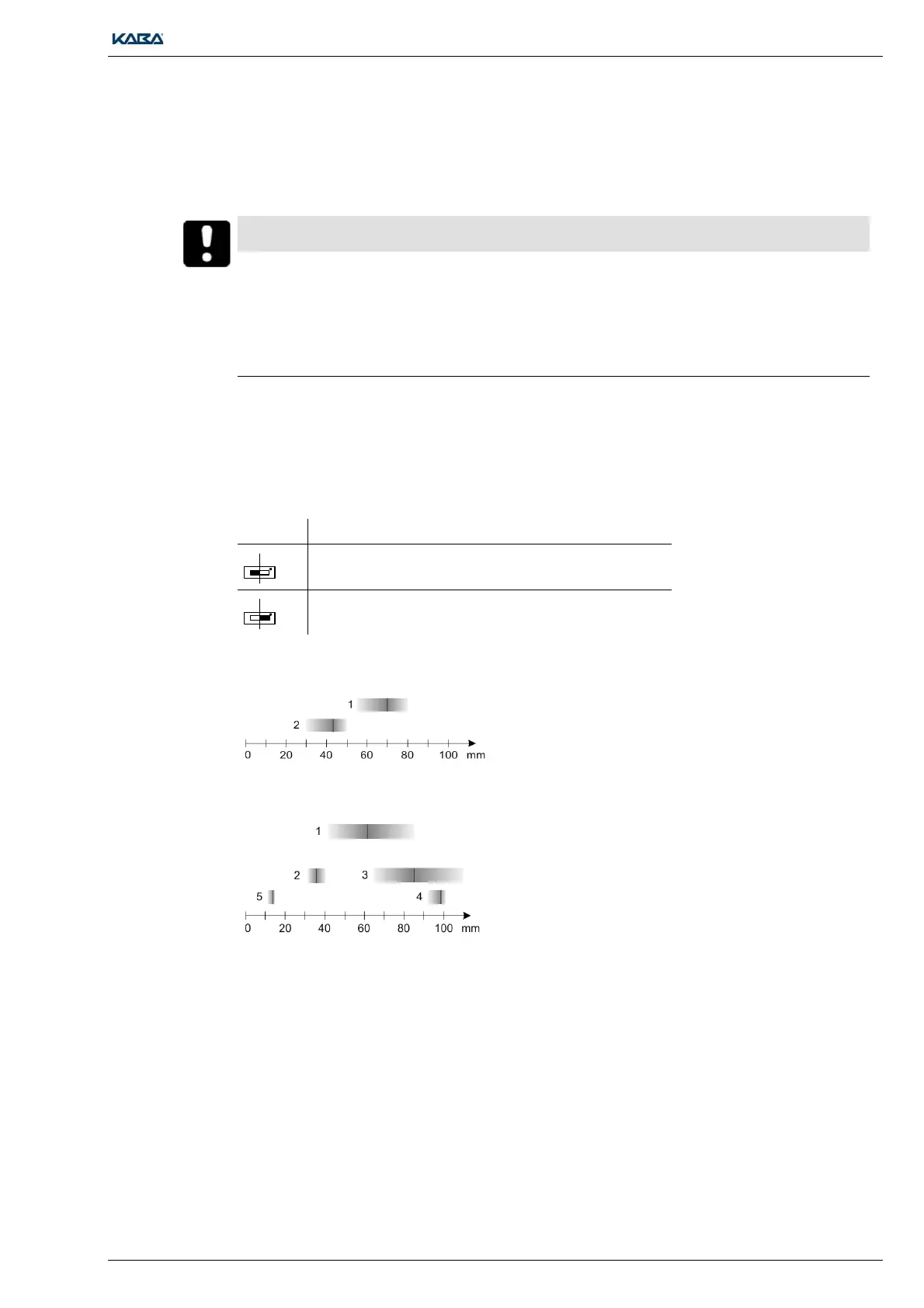

2.4.2 Compact Reader distance - metal bodies
Influence of the magnetic field near the reader by a metal body results in shorter reading distances
and may even cause failure of the reading functions. In metallic environments, the electromagnetic
field is short-circuited.
IMPORTANT
 For mounting on metal surfaces, we recommend surface cable mounting with a spacer frame to
maximize the antenna range
 The antenna's reading/writing quality must be checked in all cases.
 An air gap in the conductive body is often sufficient to weaken the magnetic circuit to such an
extent that the antenna is no longer affected to any considerable degree
 Move slide switch with metallic base to Metal
2.4.3 Antenna adaptation
The slide switch can be used to calibrate the antenna for mounting on metallic or non-metallic
bases.
Always put the slide switch in the Air position, except when using a metallic base. The slide switch
is set to the Air position on delivery (default).
Position Meaning
In Air position for a non-metallic base;
(default)
In Metal position for a metallic base
2.4.4 Typical maximum reading distances with Compact Reader MIFARE
1 = badge, MIFARE Classic/DESFire
2 = key fob, MIFARE DESFire
2.4.5 Typical maximum reading distances with Compact Reader LEGIC
1 = badge, ISO 14443A
2 = key fob, ISO 14443A
3 = badge, LEGIC RF
4 = badge, ISO 15693
5 = Kaba elolegic smart key, LEGIC RF
2.4.6 Reading and writing distance in the case of direct mounting on metal surfaces
If the Compact Reader is mounted directly on a metal surface, the reading distances in the above
graphics are located in the shorter range in each case.
