Kaba MIFARE User Manual

Device description
16 k4evo707en-2012-07

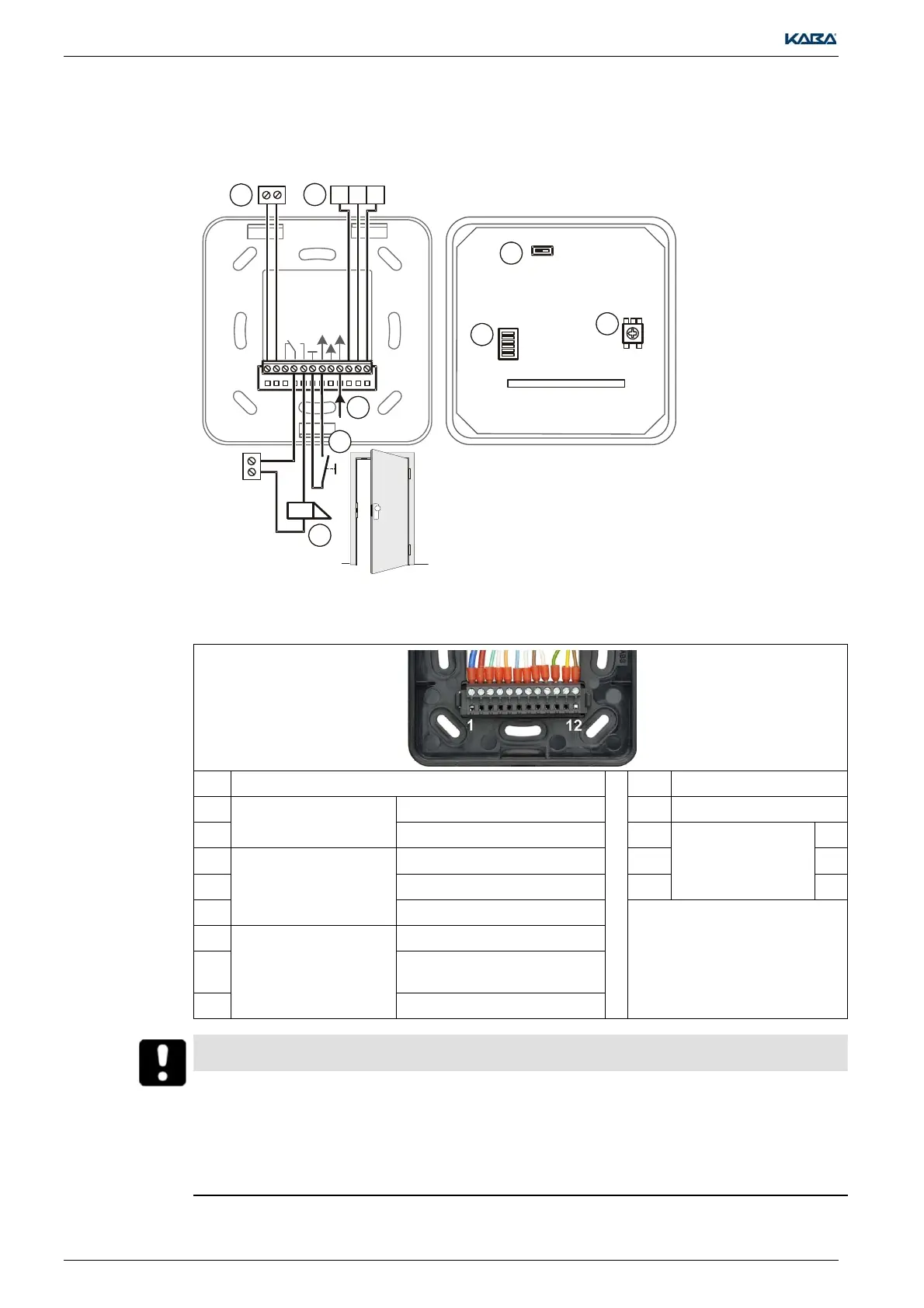

2.5 Connections
2.5.1 Overview of pin assignment
Pin Meaning Pin Meaning
1
Power supply
– DC/AC
9
Tamper switch
2
+ DC/AC
10
RS-485 interface
A
3
Relay output
NC (normally closed)
11
B
4
COM
12
C
5
NO (normally open)
6
Inputs
GND (common ground)
7
Door handle contact or door
opener key REX (IN1)
8
Frame contact FC (IN2)
IMPORTANT
 Given the different use (firmware options), individual connections can be used for different purposes
or not at all.
 Disconnect the Compact Reader from the power supply before carrying out any wiring work directly
on it
 Use cable ferrules for the connections
 For information on the maximum cable lengths, see Chapter 3.2.1 / Page 23
24V
12V
1
4
7
8
6
5
3
2
ABC
Air/Metal
ON
61
112
RS-485
