RFID Wall Reader Installed with ILCO RAC 4 or RAC4XT Installation Guide - PK3660_07_16
Instructions

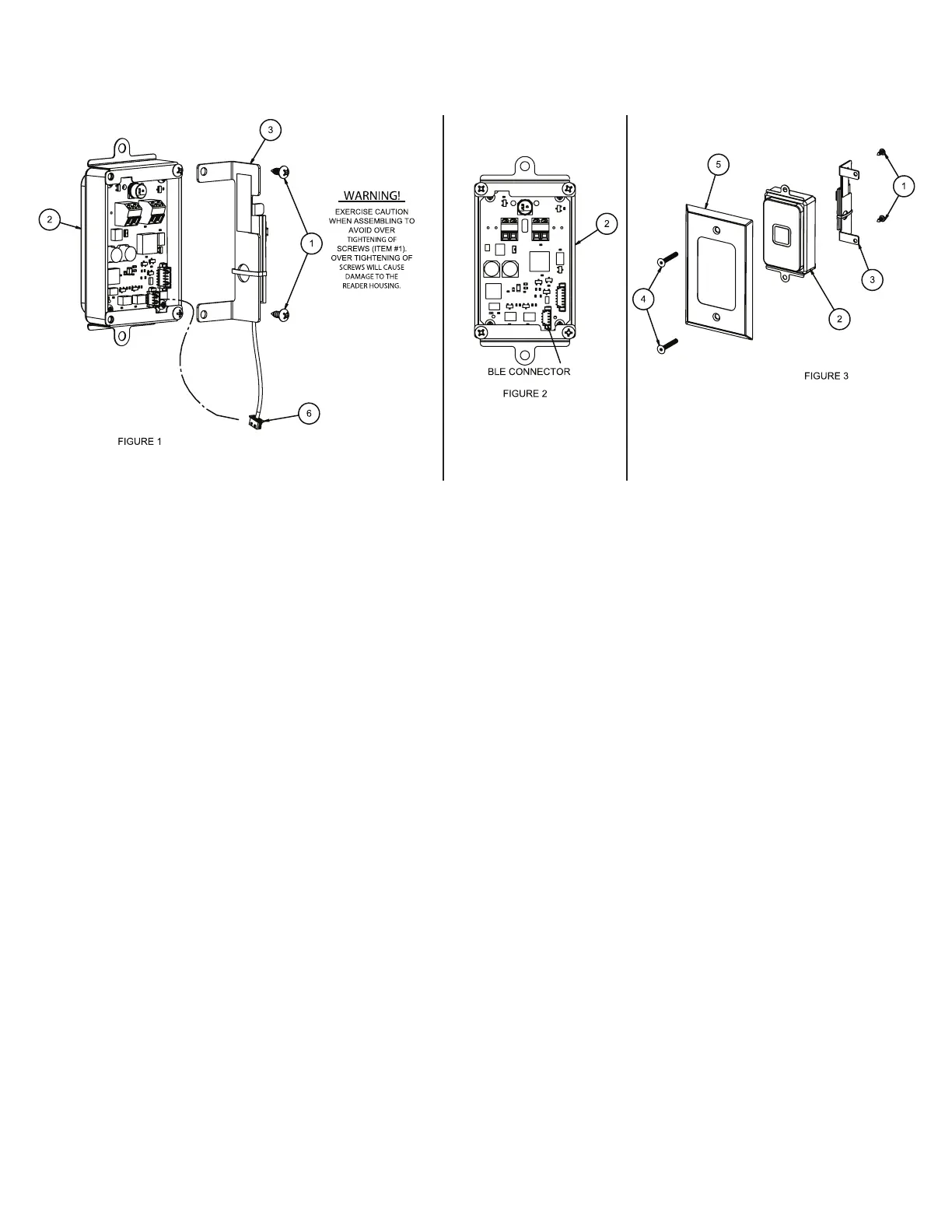

1. Remove screws (item #4) and faceplate (item #5) to gain access to reader (Figure #3)
2. Disconnect cables
3. Remove screws (item #1)
4. Install BLE assembly (item #3) using screws (item #1) oriented as shown with the cutout at the top and cable facing
downward. Refer to warning above
5. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document
6. Connect ble cable (item #6) to BLE connector (figure 2)
7. Re-assemble reader (item #2) assuring that the BLE connector is at the bottom
RFID Wall Reader
Flush Mount adding BLE Instructions
(USED FOR PART NUMBER R79K-1FX2-XXX)
