KaiDeng WVC Modem - 2.3 Installation; 2.3.1 one WVC Modem(only one group) and the installation distance is within 15 M

http://www.kaidengdg.com

Powerline/plug
Signallamps Powerlight
2. OneRS232serialconnections

2.3Installation
2.3.1 one WV
C Modem(only one group) and the installation distance is
within15M
Whenthe microinverters isless thanorequalto100pcsingenerationsystem, weonly needto installoneWVC Modem.
Theinstallation isverysimple,justneedusing theserialporttoconnecttheWVCModemandcomputer,then pluggedin
power.Ofcourse,thefirstpremiseisyourcomp
uterneedsaserialport.Andthedetailsinstallationlikebelow:

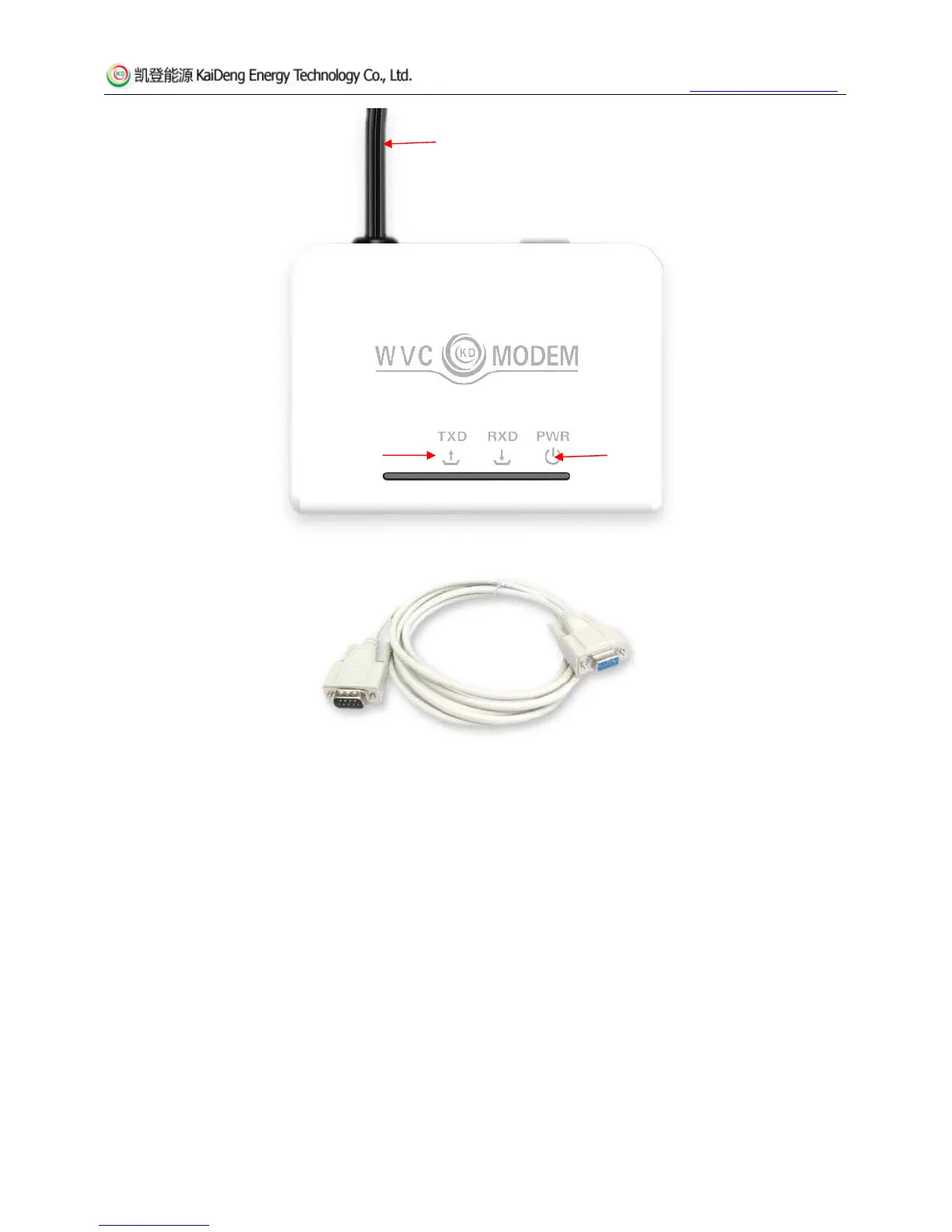

1.ConnecttheserialportofthefemalecontactoflunktoWVCModemserialportandtightenthescrewonbothendsof
theconnections,showlikesbelow:
