For the ovens with the side opening doors.
The refrigerator is delivered with the door hinge on
the right. For comfortable use of the oven it is
possible to reverse the door so that it opened to
the left.

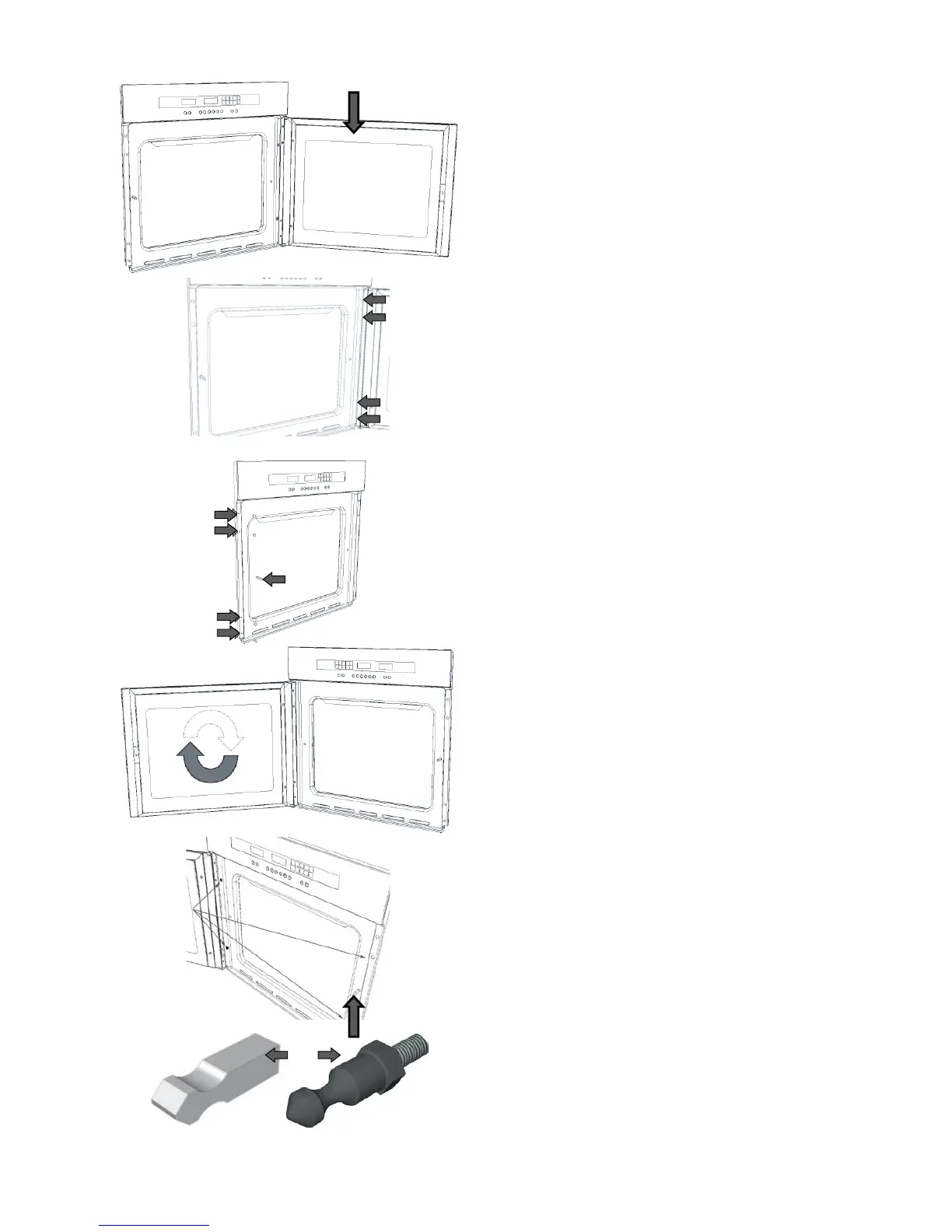

Below is the consecution how to reverse the door.
• Fully open the door 1.
• Remove the four fixing screws 2 from the
door hinge. Remove the door.
• Remove the four plastic caps 3 from the
opposite side and unscrew the locking pin
4.
• Turn the door 180°. Secure the door in its
new position using the 4 screws 2 removed
previously.
•
Make sure that the oven door is perfectly
parallel with the front panel. If it is not,
adjust it by means of the screws 2.
• Fix the oven in the oven recess using the 4
screws and the plastic spacers 5 provided.
• Screw in the door closing pin 4 and secure
it in horizontal position as shown in the
figure, or until it locks in place in the case
of a round pin.
• Fit the 4 plastic caps 3.
The reversing the door of the oven is over.
