The oven can be installed under a work top or in a

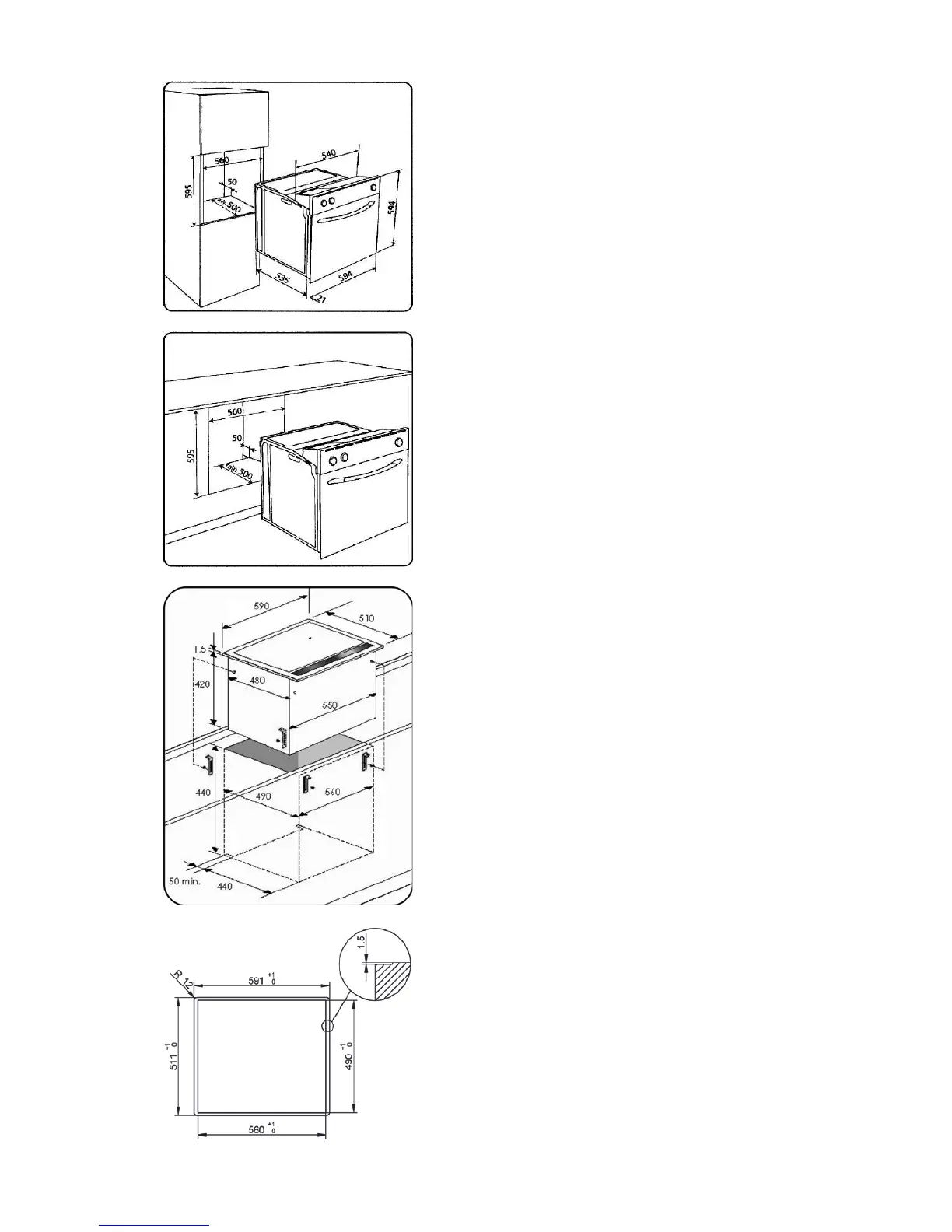

cooking column. Figure shows the installation
dimensions. Make sure that surrounding materials
are heat resistant. Align the oven centrally with
respect to the side walls of the units surrounding it
and fix it in place with the screws and Allen screws
provided.
See the accompanying instructions for combining
the oven with multi-functional gas or gas-electric
cookers.
LIFT oven
The oven LIFT must be installed on the work top
such as a cooking hob. The dimensions of the
built-in cabinet must be those shown in the figure
below.
The oven can be inserted with the external frame
that supports the top, taking care to position the
sealing gasket, or by milling the top around the
hole to a depth of 1.5 mm, following the
dimensions of the oven frame, and always
interposing the sealing gasket provided.
