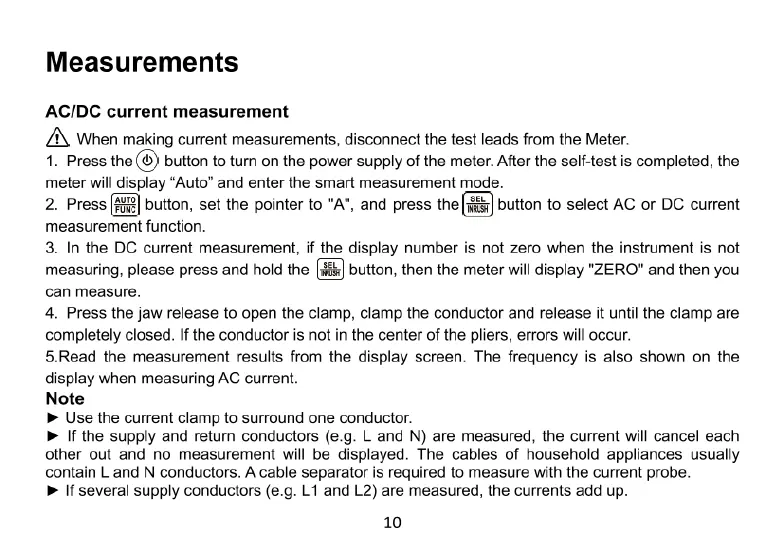

Measurements

AC/DC

current

measurement

A\

When

making

current

measurements,

disconnect

the

test

leads

from

the

Meter.

1.

Press

the

(®)

button

to

turn

on

the

power

supply

of

the

meter.

After

the

self-test

is

completed,

the

meter

will

display

“Auto”

and

enter

the

smart

measurement

mode.

2.

Press

(3]

button,

set the

pointer

to

"A",

and press

the

]

button

to

select

AC

or

DC

current

measurement

function.

3. In

the

DC

current

measurement,

if

the

display

number

is

not

zero

when

the

instrument

is

not

measuring,

please

press

and

hold

the

(&)

button,

then

the

meter

will

display

"ZERO"

and

then

you

can

measure.

4.

Press

the

jaw

release

to

open

the

clamp,

clamp

the

conductor

and

release

it

until

the

clamp

are

completely

closed.

If

the

conductor

is

not

in

the

center

of

the

pliers,

errors

will

occur.

5.Read

the

measurement

results

from

the

display

screen.

The

frequency

is

also

shown

on

the

display

when

measuring

AC

current.

Note

»

Use

the

current

clamp

to

surround

one

conductor.

»

If

the

supply

and

return

conductors

(e.g.

L

and

N)

are

measured,

the

current

will

cancel

each

other

out

and

no

measurement

will

be

displayed.

The

cables

of

household

appliances

usually

contain

L

and

N

conductors.

A

cable

separator

is

required

to

measure

with

the

current

probe.

»

If

several

supply

conductors

(e.g.

L1

and

L2) are

measured,

the

currents

add

up.
