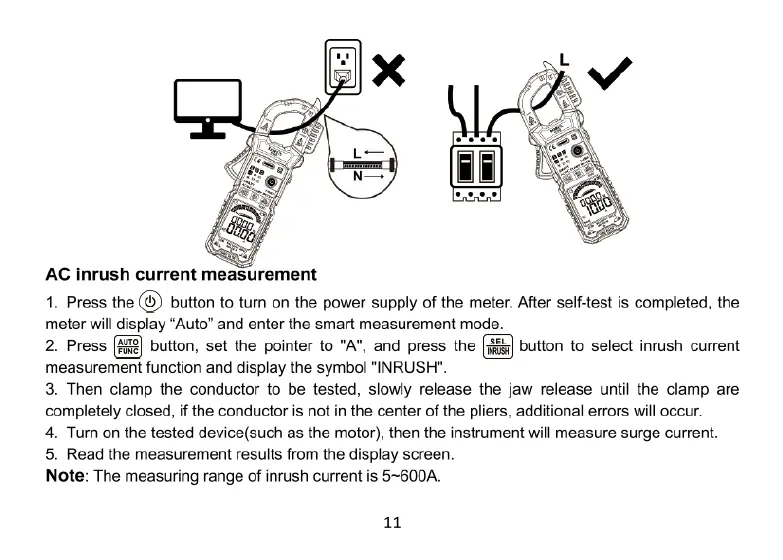

AC

inrush

current

measurement

1.

Press

the

(&)

button

to

tum

on

the

power

supply

of

the

meter.

After

self-test

is

completed,

the

meter

will

display

“Auto”

and

enter

the

smart

measurement

mode.

2.

Press

button,

set

the

pointer

to

"A",

and

press

the

button

to

select

inrush

current

measurement

function

and

display

the

symbol

"INRUSH".

3.

Then

clamp

the

conductor

to

be

tested,

slowly

release

the

jaw

release

until

the

clamp

are

completely

closed,

if

the

conductor

is

not

in

the

center

of

the

pliers,

additional

errors

will

occur.

4.

Turn

on

the

tested

device(such

as

the

motor),

then

the

instrument

will

measure

surge

current.

5.

Read

the

measurement

results

from

the

display

screen.

Note:

The

measuring

range

of

inrush

current

is

5~600A.
