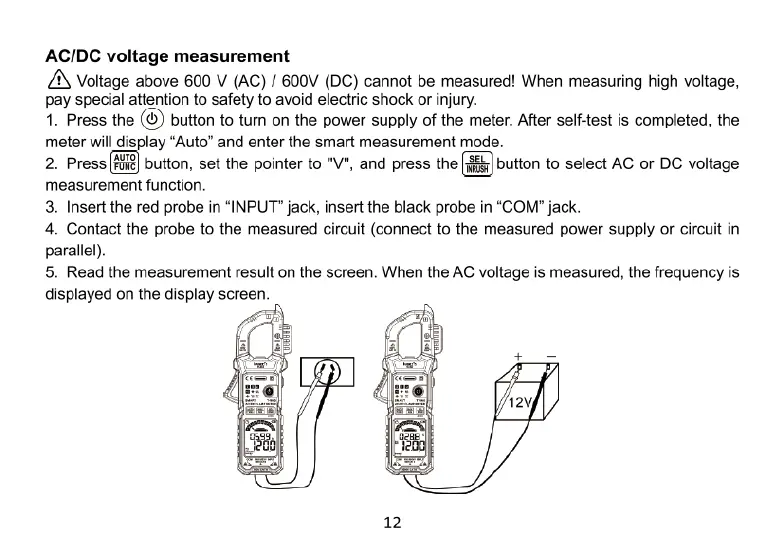

AC/DC voltage measurement
/\ Voltage above 600 V (AC) / 600V (DC) cannot be measured! When measuring high voltage,
pay special attention to safety to avoid electric shock or injury.
1. Press the (®) button to tum on the power supply of the meter. After self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
2. Press (B button, set the pointer to "V", and press me button to select AC or DC voltage
measurement function.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM” jack.
4. Contact the probe to the measured circuit (connect to the measured power supply or circuit in
parallel).
5. Read the measurement result on the screen. When the AC voltage is measured, the frequency is
displayed on the display screen.
