21

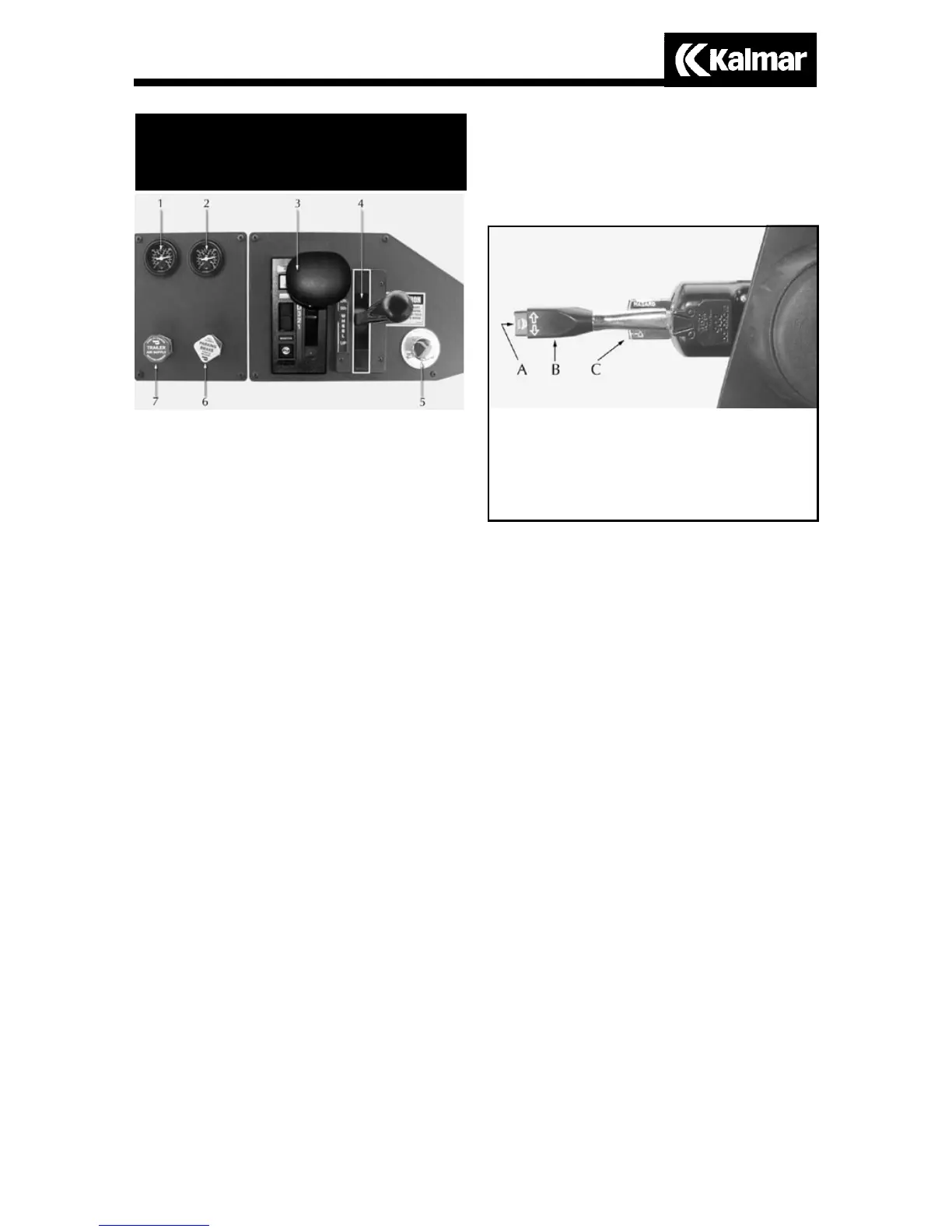

1. Standard Air Gauge
Indicates air pressure in the air system
in P.S.I.
2. 2nd Air Gauge
Indicates air pressure in the air system
in P.S.I.
3. Transmission Shift Selector
This control selects the operating range
of the transmission. (See page 30, Trans-
mission)
4. Boom Control Lever
This control operates the hydraulic boom
and fifth wheel. (See page 31, Hydraulic
Boom Operation)
5. Fifth Wheel Unlatch Control
This control engages the fifth wheel jaw
locking mechanism. (See page 32, Fifth
Wheel Unlatch Control)
6. Parking Brake Control
This control operates the parking brakes
on the vehicle and trailer. (See page 26,
Parking Brakes)
7. Trailer Air Supply
This control activates the trailer air supply.
(See page 26, Parking Brake and Trailer
Air Supply)
Figure 1
A High Beam Switch
B Turn Signal Lever
C Emergency Flasher Switch
The column mounted control on the
Kalmar tractor has three functions. It is
located on the left hand side of the steer-
ing column (Fig. 1).
1. Moving the lever (Fig. 1, B)
forward activates the right turn signal.
Moving the lever to the rear activates the
left turn signal. The turn signal is not self
canceling and must be returned to the
center (off) position manually after it is
engaged. The green arrows on the dash
panel light up and flash when the switch
is activated.
2. The button on the end of the lever
operates the high beam lights (Fig. 1, A).
The headlights must be on for the switch
to work. When the high beam headlights
are on, the high beam indicator on the
dash will light up.
3. The pull out switch under the
lever activates the emergency flashers
(Fig. 1, C). Pulling out on the switch
turns the flashers on. To turn the flashers
off, move the turn signal lever forward or
backwards.
PANELS 4 and 5
TURN SIGNAL, HIGH BEAM AND
EMERGENCY FLASHER CONTROL
Operation
