1. Unscrew the bolts (1), remove the cover (2), and drain
the fuel (3).
2. Loosen the clips (4) while holding them and remove
the hose (5) from the fuel tank.
3. Remove the fuel lter (6).
4. Flush the lter with fresh gasoline.
5. Allow the lter to dry out and put it back in the fuel
tank.
6. Mount the hose and clamp and then open the fuel
valve to check for leaks.
7. Replace the cover and tighten the screws.
FUEL FILTER TECHNICAL MAINTENANCE
16
FUEL FILTER
15
1. Remove the fuel tank cap and fuel lter.
2. Clean the lter with gasoline.
3. Wipe the lter and replace it.
4. Replace the fuel tank cap.
Make sure that the fuel tank cap is tight.
Never use gasoline while smoking or in the immediate vicinity of
an open flame.
IMPORTANT!

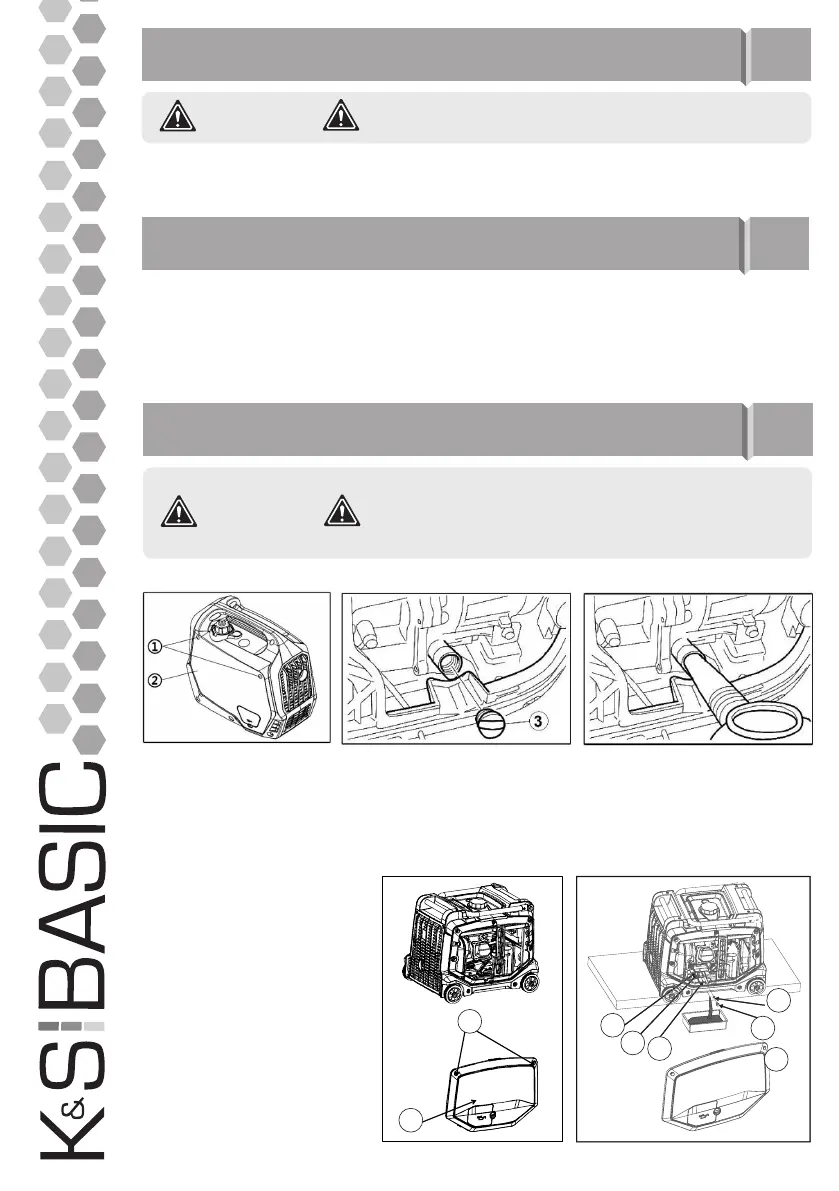

ENGINE OIL REPLACEMENT OR ADDING
17
Do not drain engine oil immediately after stopping the generator.
The oil will be too hot. It’s dangerous! Allow the engine to cool
slightly, and drain the warm oil. Oil will drain faster and easier
from a warm engine.
ATTENTION – DANGER!
MODEL KSB 21MODEL KSB 21ii S S
1. Place the generator on a flat surface
2. Loosen the screws (1), remove the cover of generator (2).
3. Put the generator on a platform, and tilt the machine in the direction of oil guide groove.
4. Put the drain pan under the machine. Tilt the generator and drain all the oil.
5. Place the generator to a level position and add fresh oil. Install the oil gauge and the generator cover back, check
that the bolts are tighten.
MODELS KSB 30MODELS KSB 30ii S, S, KSB 40KSB 40iiE SE S
1. Place the generator on a at surface.
2. Loosen the screws (1), remove the
cover of generator (2).
3. Put the generator on a platform, and
tilt the machine in the direction of oil
guide groove (3).
4. Remove the oil gauge.
5. Put the drain pan under the ma-
chine, remove the oil drain plug (6). Oil
will ow out of the crankcase.
6. Check the oil gauge (4), seal(5), oil
drain plug (6) and gasket (7). Replace
them immediately if damaged.
11
22
55
44
33
77
66
66
konner-sohnen.com | 12
