FUEL TANK CAP AIR VENTFUEL TANK CAP AIR VENT
The fuel cap is equipped with a vent for air supply to the fuel tank. When the engine is running, the vent must be in the
“ON” position (OPEN). This will allow fuel to enter the carburetor for engine operation. After the generator stops, allow it
to cool down and close the air vent on the fuel cap. When the generator is not in use, close the vent to the “OFF” position.
EARTHING BOLTEARTHING BOLT
In all cases, except for an IT system with an insulated neutral wire and bonding, the generator earthing bolt must be
connected to the grounding circuit with a flexible copper conductor with a cross-sectional area of at least 6 mm
2
.
CHECKING THE FUEL LEVELCHECKING THE FUEL LEVEL
1. Unscrew the fuel cap and check the fuel level in the tank.
2. Fill the fuel tank to the fuel filter level.
3. Tighten the fuel cap securely.
4. For silent models of inverter generator, open the air intake vent on the fuel cap.
CHECK BEFORE GETTING STARTED
6
Before starting the engine, Before starting the engine, make sure that the rated power of power consumers matches with the power of generator.
Do not exceed the nominal power of the generator.
Do not connect any devices before you start the engine!Do not connect any devices before you start the engine!
GETTING STARTED
7
Do not change the controller settings in terms of the amount of
fuel or speed governor (this adjustment was made at the factory).
Otherwise, this may result in changes in the engine operation or its
failure.
IMPORTANT!
Immediately wipe off spilled fuel with a clean, dry, soft cloth,
since fuel may deteriorate painted surfaces or plastic parts. Use
only unleaded gasoline. The use of leaded gasoline will cause
severe damage to internal engine parts.
IMPORTANT!
Recommended fuel: Unleaded gasoline
Fuel tank volume: see specifications table.

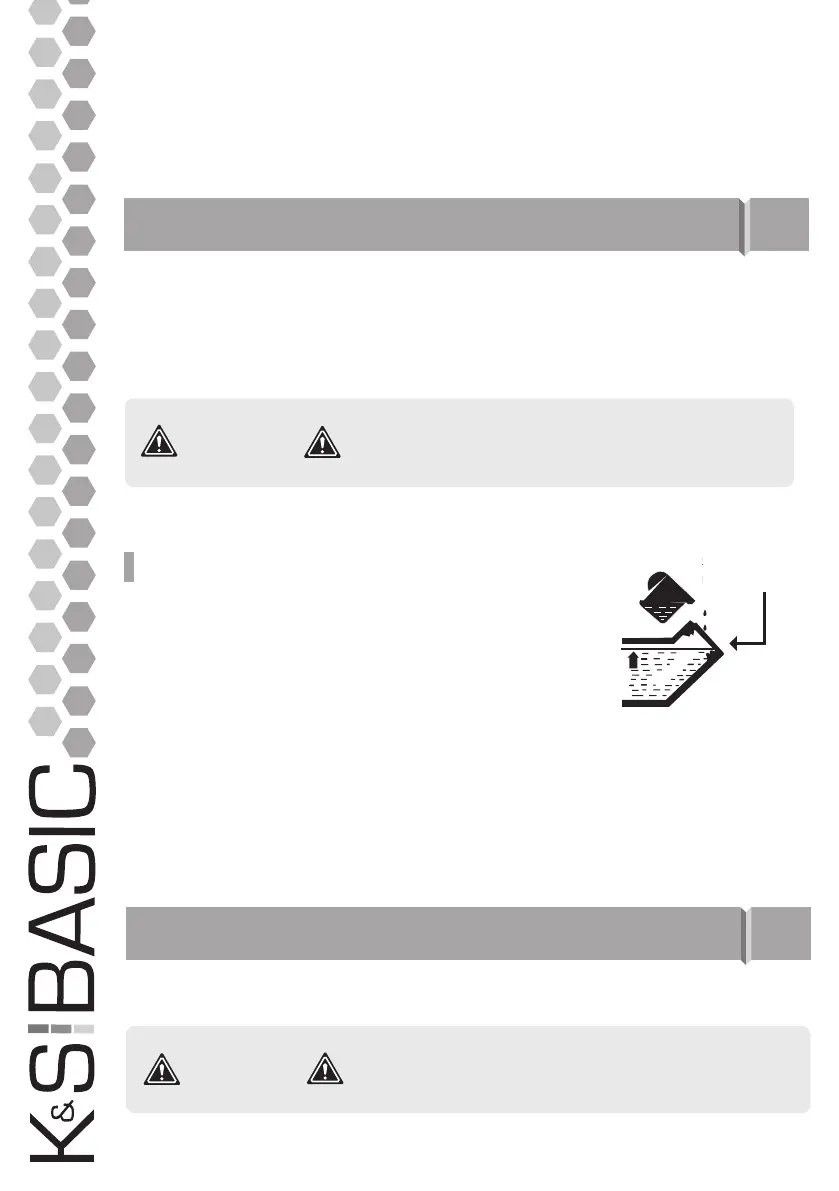

CHECK THE OIL LEVELCHECK THE OIL LEVEL
Generstor is transported without the motor oil. Please don’t start the engine
without filling the sufficient amount of motor oil.
Recommended engine oil: SAE 10W-30, SAE 10W-40.
Recommended engine oil grade: API Service SE type or higher.
Motor oil quantity: see specifications table.
1. Open the service cover (Fig. 1).
2. Unscrew the oil dipstick and wipe it out with a clean cloth.
3. Fill the crankcase with engine oil. The recommended amount of oil for
each model is indicated in the specification chart.
4. Insert the dipstick without screwing it in.
5. Check the oil level by a mark on the oil dipstick.
6. Add oil if its level is below the mark on the oil dipstick.
7. Screw on the dipstick.
fill to here
