Kangaroo Ava 9301B - Attach Panel A to Main Structure

Assembly InstructionsAva
19
Step 1: Cabinet Shell
A
X
Y2
Z
5
⁄
8
“ Cam Cover x9
c2

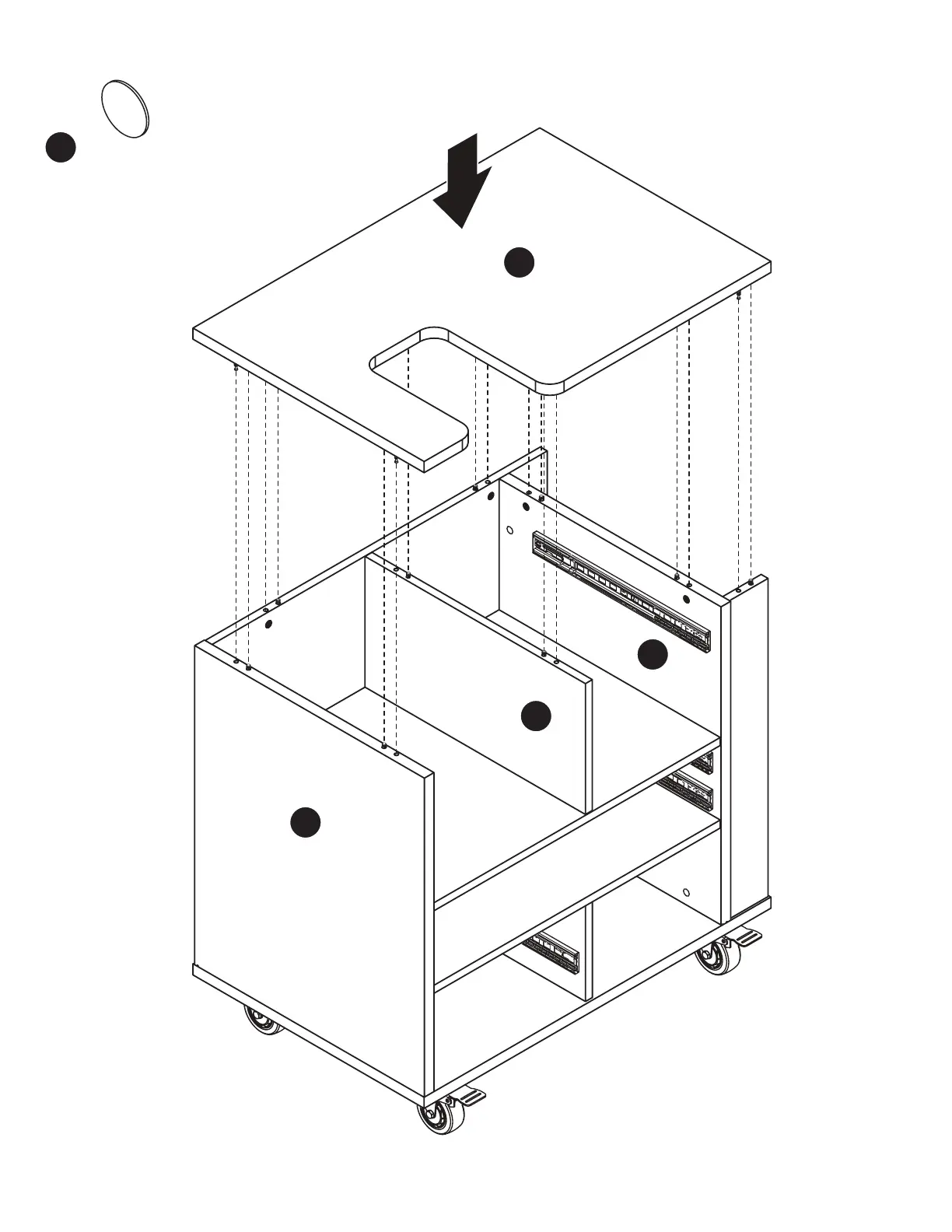

Carefully lower Panel A onto the assembled panels
of the cabinet, inserting cam bolts into cam locks,
tightening, and applying c2 Cam Covers.
