Assembly InstructionsKangaroo
19

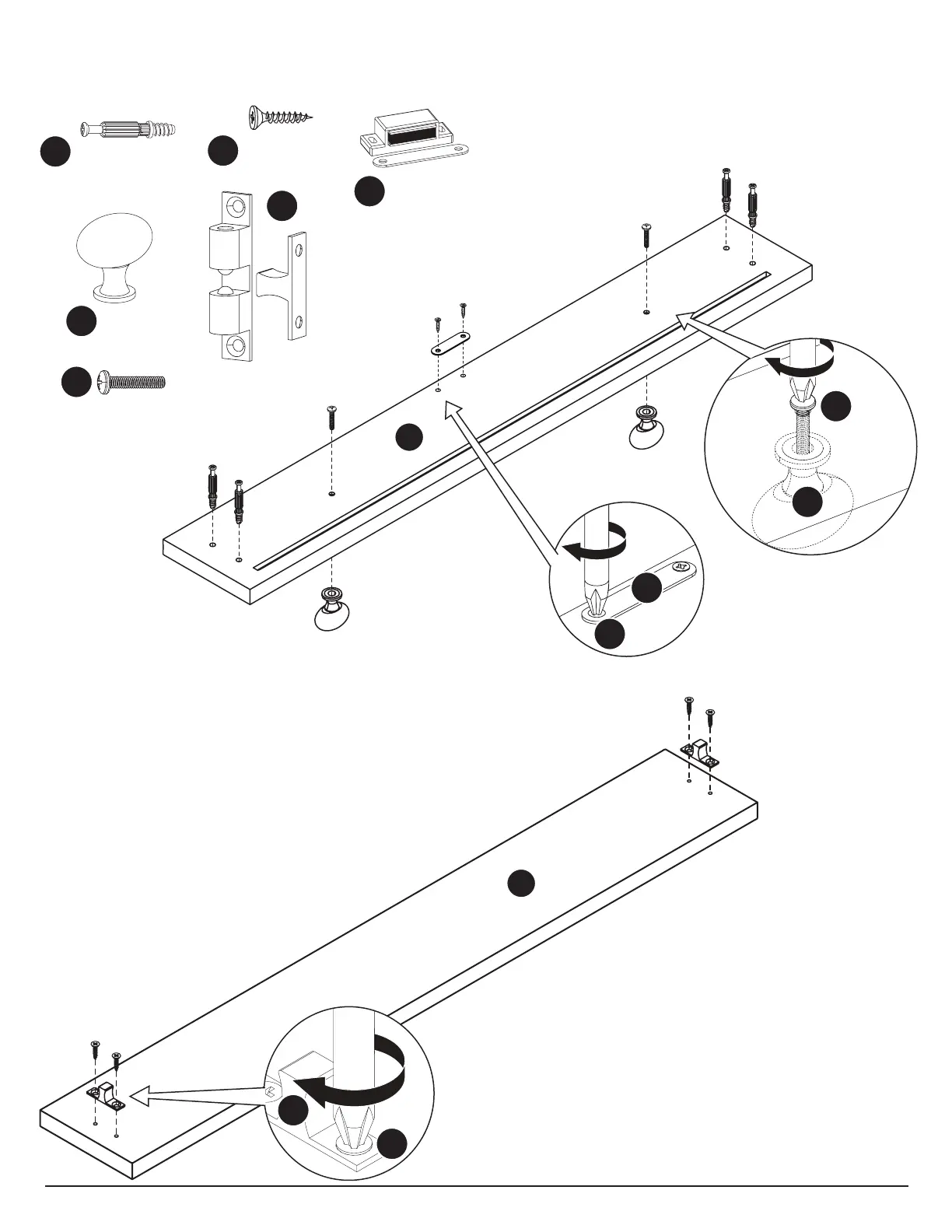

Part 4: Drawer Unit and Front Panel
s2
m
b2
h1
L
6x35 Cam Bolt x4
c1
Magnet Catch
Plate x1
m
Knob x2
4x20 Fix Bolt x2
h1
b2
Attach c1 Cam Bolts to Panel L.
Attach m Magnet Catch Plate with s2 Screws.
Attach h1 Knobs with b2 Fix Bolts.
K
s1
b3
Attach remaining b3 Ball Catch parts
with s1 Screws to Panel K.
Set Panel K aside while you assemble
the drawer.
Ball Catch x2
b3
3x14 Screw x6
s2
