Kangaroo K8805 - Page 20

Assembly InstructionsKangaroo
20
L
L1
L2

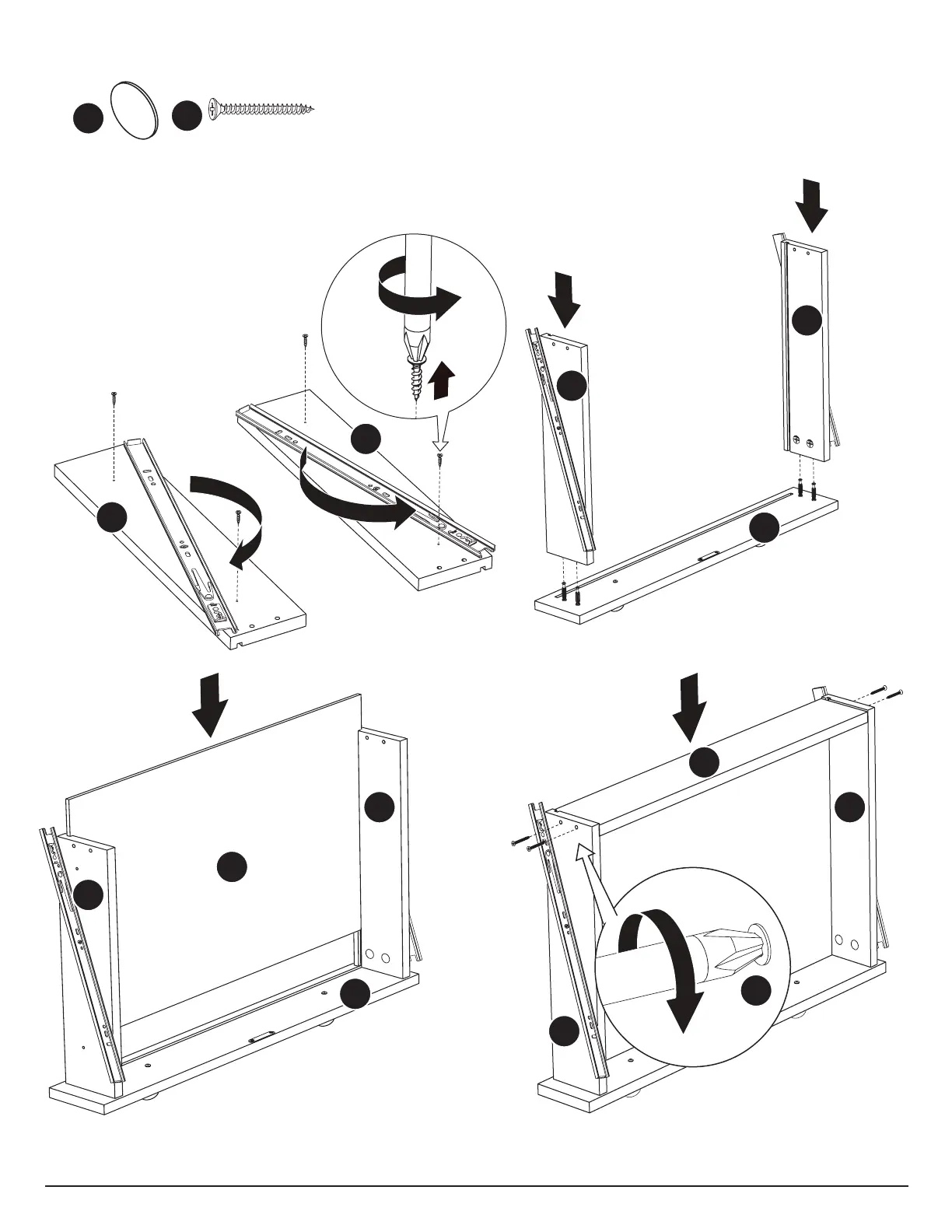

Part 4: Drawer Unit and Front Panel
L1
L2
L2
L1
L4
L3
s3
Slide Panel L4 into grooves on Panels L, L1 and L2. Connect Panel L3 to Panels L1 and L2 using s3 Screws.
L
L1
L2
Insert c1 Cam
Bolts on
Panel L into
cam locks
on Panels
L1 and L2.
Tighten cams
and apply c2
Cam Covers.
5
⁄
8
“ Cam Cover x4
c2
3.5x35 Screw x4
s3
To reach the pre-drilled screw holes
on the sides of Panels L1 and L2,
you will need to tilt the drawer
runners.
Remove the front and back screws
on the drawer runners, leaving the
middle screw installed. Pivot the
drawer runners to access screw holes
as shown here.
