Kangaroo K8805 - Page 7

Assembly InstructionsKangaroo
7

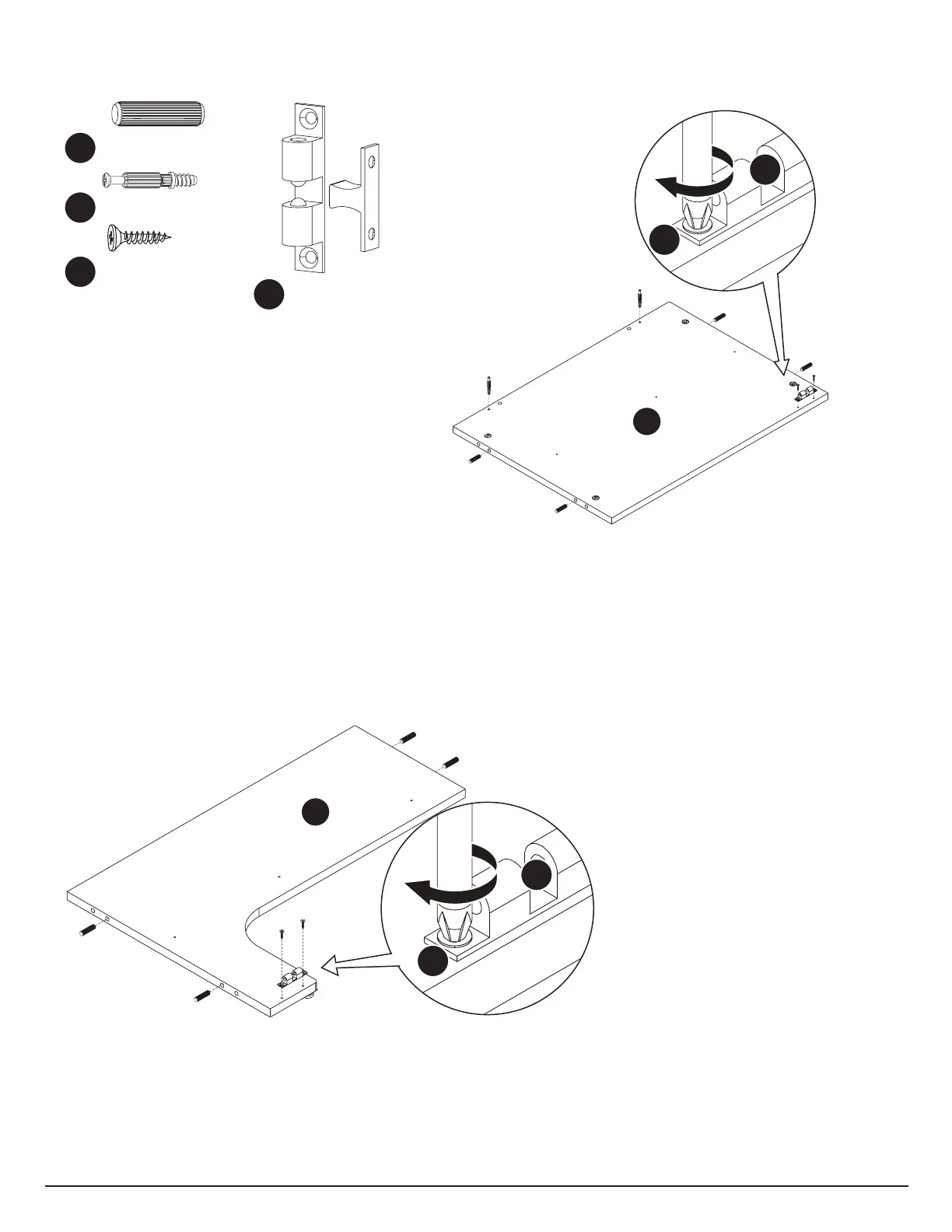

Part 1: Cabinet Shell
Z
Insert 4 d1 Dowel Pins into the edges of Panel Z.
Insert 2 c1 Cam Bolts into Panel Z.
Attach b3 Ball Catch with s1 Screws to front edge of Panel Z. Set aside the other parts of
the ball catch to use later.
s1
b3
Y
s1
b3
Insert 4 d1 Dowel Pins into the edges of Panel Y.
Attach b3 Ball Catch with s1 Screws to front edge of Panel Y. Set aside the other parts of
the ball catch to use later.
8x30 Dowel Pin x8
d1
Ball Catch x2
b3
6x35 Cam Bolt x2
c1
3.5x14 Screw x4
s1
