Kangaroo Sydney - Step 3: Top and Leaves; Attach Top Panel A and Support Bar

Assembly InstructionsSydney XL
14
Step 3: Top and Leaves
A
6x35 Cam Bolt x15
c1
Metal Support Bar x1
Lock x0
Lock Plate x1
Key x0
L
3.5x30 Screw x6
s6
3.5x14 Screw x2
s1
c1
s6
5
⁄
8
“ Cam Cover x15
c2
X
D
Y1
Y2
O6
A
Z

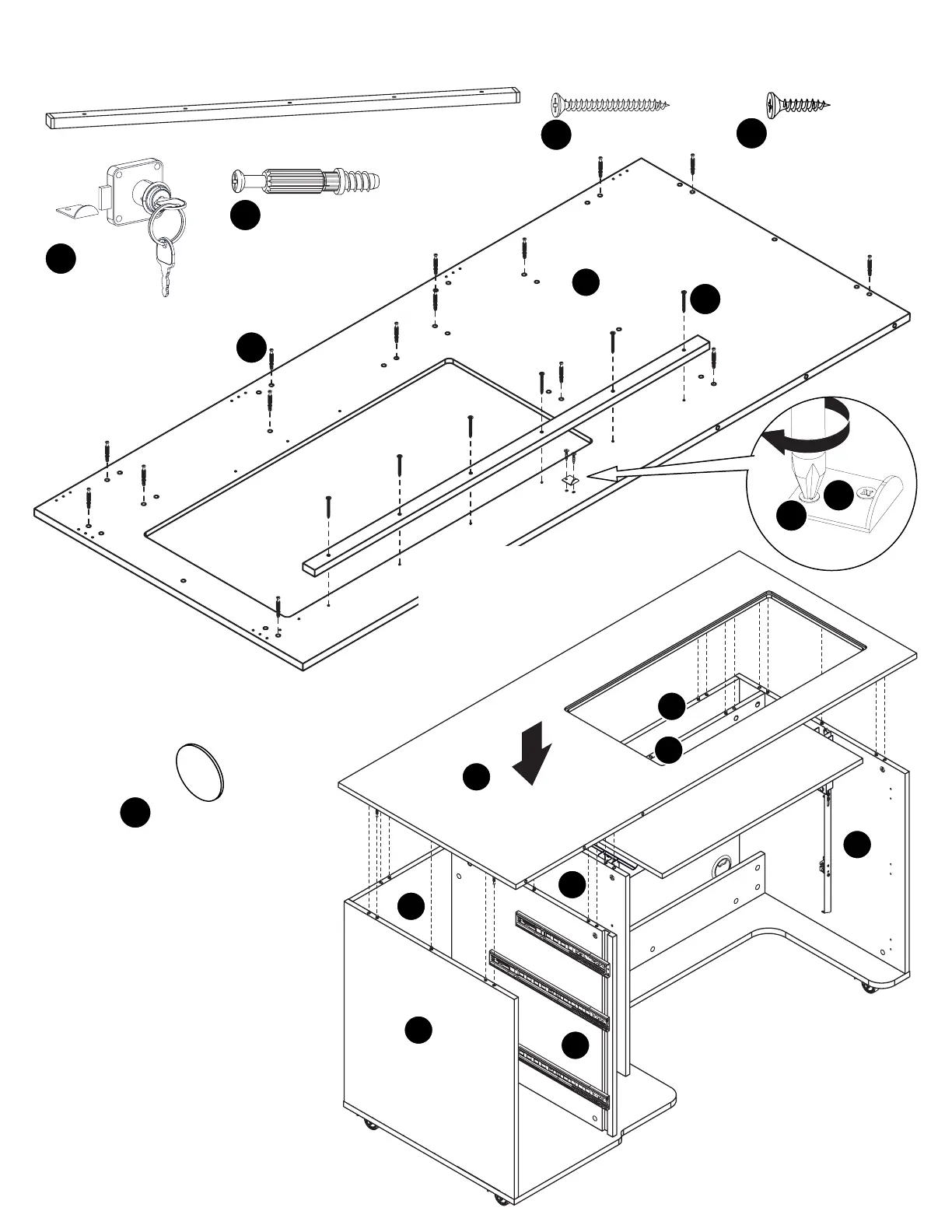

Attach c1 Cam Bolts to
the underside of Panel A.
Attach Metal Support
Bar to Panel A using
s6 Screws.
L
s1
Attach L Lock Plate
using s1 Screws.
Attach Panel A as shown, carefully lining
up Cam Bolts in Panel A with Cam Locks
on Panels Z, D, O6, Y2, Y1 and X.
You may need a second person to help
you.
Tighten Cam Locks and cover with Cam
Covers.
D
